Painted Remote Key - Porsche
#1
Painted Remote Key DIY - Porsche 991/981/Cayenne/Panamera
Hi, I always wanted to paint my car key in white to match with my new 991S (factory optioned is way too expensive). However, I tried to search from the internet forum but I could not find the info anywhere how to disassemble Porsche key case.
However, a few days ago, I accidentally washed my car key (it was sit in my pant's pocket). The key was not able to operate... then I opened a battery cover... sad news, the battery was leaked with brownish liquid. I decided to repair it, and I will need to disassemble the key case without knowing of how to do it properly (anyway, it is already broken).
Luckily, I did it a pretty good job to disassemble the key case then using the hair dryer with brush to dry and remove all messes from the electronic parts/chips.
Thankfully, my Porsche key is alive and working again.. save me a lot of trouble (Porsche's quality is water proofed).

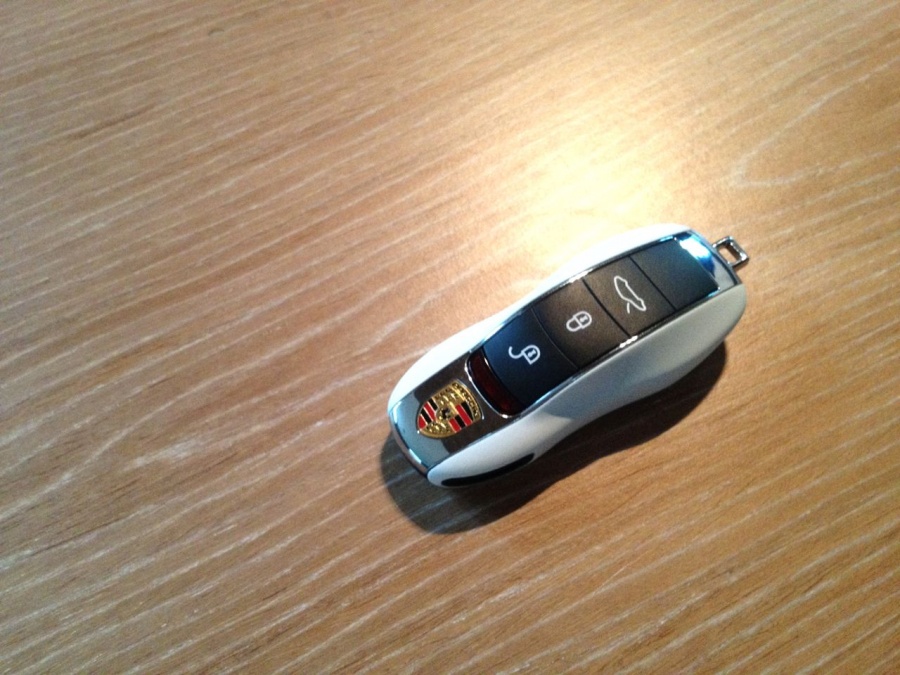

Since i was able to disassemble the key case with else so i decided to paint it with matt white spray then re-coat with matt clear lacquer. The result is fantastic and I really excite to show it to your guys, enjoys. I will write DIY soon.
PS. I also did a fix to my rattled left rear quarter window, so I was able to remove a whole rear seat and rear side panels to access the window assembly area. Then I used 3M tape to fix it and now there is no more rattles, I think I did a better job than OEM. (I also plan to remove the rear seat belts for both rear passengers to save some weight)
Anyone who have this window rattle's issue please let me know, i might be able to help.
However, a few days ago, I accidentally washed my car key (it was sit in my pant's pocket). The key was not able to operate... then I opened a battery cover... sad news, the battery was leaked with brownish liquid. I decided to repair it, and I will need to disassemble the key case without knowing of how to do it properly (anyway, it is already broken).
Luckily, I did it a pretty good job to disassemble the key case then using the hair dryer with brush to dry and remove all messes from the electronic parts/chips.
Thankfully, my Porsche key is alive and working again.. save me a lot of trouble (Porsche's quality is water proofed).
Since i was able to disassemble the key case with else so i decided to paint it with matt white spray then re-coat with matt clear lacquer. The result is fantastic and I really excite to show it to your guys, enjoys. I will write DIY soon.
PS. I also did a fix to my rattled left rear quarter window, so I was able to remove a whole rear seat and rear side panels to access the window assembly area. Then I used 3M tape to fix it and now there is no more rattles, I think I did a better job than OEM. (I also plan to remove the rear seat belts for both rear passengers to save some weight)
Anyone who have this window rattle's issue please let me know, i might be able to help.
Last edited by iambon; 06-08-2012 at 11:03 AM.
#2
Very nicely done! And lucky you that it still works!
It seems a little cheep / toyish to me. If it always was in your pocket and there was a button I could appreciate it. Do you guys who have used this for the ignition for a while like it as much as the old key?
ChuckJ
It seems a little cheep / toyish to me. If it always was in your pocket and there was a button I could appreciate it. Do you guys who have used this for the ignition for a while like it as much as the old key?
ChuckJ
#4
Actually, it was easy
1) pull out the black / small rubber tray protection in the center of the rear seat then you will see a small plastic cover.
2) then remove a small cover then you will see the lock nut
3) remove the lock nut
4) remove rear seat belt socket covers - black plastic covers on both left / right, just simply pray it out. Then remove seat belt sockets.
5) lift up the seat on both left and right sides but leave the center part - they only use only Velcro to attach it the rear seat on both sides.
6) lift up the center arm rest cover and then lift up the rear part of the center rear seat. There are 2 small plastic clips in the front of rear seat - near the center arm rest, just simply pull it out, not very hard.
Last edited by iambon; 06-08-2012 at 10:49 AM.
#5
I had to remove the whole rear seat out in order to remove rear seat belt during the disassemble process of rear side panel.
Actually, it was easy
1) pull out the black / small rubber tray protection in the center of the rear seat then you will see a small plastic cover.
2) then remove a small cover then you will see the lock nut
3) remove the lock nut
4) remove rear seat belt socket - black plastic covers on both left / right, just simply pray it out. Then remove seat belt sockets.
5) pull up left and right rear seats - they only use only Velcro to attach it. Still leave the center part.
6) open the center arm rest cover and lift up the rear part of the center rear seat. There are 2 small plastic clip in the front near the center arm rest, just pull it out not hard.
Actually, it was easy
1) pull out the black / small rubber tray protection in the center of the rear seat then you will see a small plastic cover.
2) then remove a small cover then you will see the lock nut
3) remove the lock nut
4) remove rear seat belt socket - black plastic covers on both left / right, just simply pray it out. Then remove seat belt sockets.
5) pull up left and right rear seats - they only use only Velcro to attach it. Still leave the center part.
6) open the center arm rest cover and lift up the rear part of the center rear seat. There are 2 small plastic clip in the front near the center arm rest, just pull it out not hard.
#7
You did ?
Good man !
You're single handely saving the Euro. Give the man a Bell's !!!
Rainier
Good man !
You're single handely saving the Euro. Give the man a Bell's !!!
Rainier
Trending Topics
#9
Diy

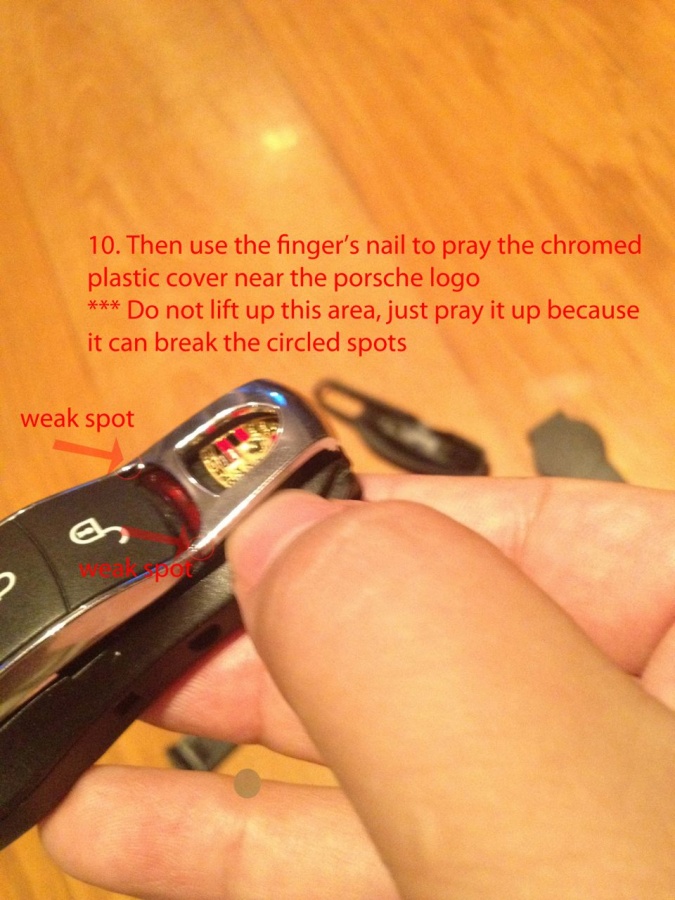

Here is DIY. It is very simple. Cheer! You only need to do step no. 1-6 in order to remove the side covers, to paint.
My matt white paint has
1 x times primer coat
4 x times matt white base coat
4 x times matt clear coat
The paint has a very strong scratch resistance. I drop it to the floor and no sign of any scratches, I am a very happy Porsche owner.
My matt white paint has
1 x times primer coat
4 x times matt white base coat
4 x times matt clear coat
The paint has a very strong scratch resistance. I drop it to the floor and no sign of any scratches, I am a very happy Porsche owner.
Last edited by iambon; 06-08-2012 at 10:37 AM.
#11
Thank you for back seat removal instructions. What was under center piece? Is the whole "back seat" carpeted like the 997? I would be interested in taking the rear seats all out.
Oh, and where are my manners? Key looks good. Glad you got it working again.
Oh, and where are my manners? Key looks good. Glad you got it working again.
#15
my key - factory painted.
Attachment 178899
Attachment 178899
never had a 997 key sit oddly in my pocket, clearly a design flaw nobody thought of.. keys are often ignored...
