996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

Pentosin leaking out of steering reservoir

Thread Tools

Search this Thread

Rate Thread

  #16
Old 03-13-2010 | 11:56 PM
Liquidcooled's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 136
From: Canada
Rep Power: 26
Liquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really nice
Originally Posted by Mikelly
https://www.6speedonline.com/forums/...or-w-pics.html

That'll show you the unit with the accumilator attached to it and where it is in the car.

Mike
Thanks for the link, this is very helpful.

Originally Posted by OCTurbo
as above- bad clutch slave. make sure that it's a 2008 or newer slave that you replace it with, because there were faulty slaves before that.
Good to know, if it turns out to be the slave I'll make sure to ask for a 2008 or newer unit.

Originally Posted by ttboost
Wait, your mechanic doesn't think a Pentosin leak is a big deal?
Apparently he doesn't. He wanted me to keep driving the car to see if it keeps leaking pentosin, he never once warned me how flammable this stuff is. I'm sure if it was his car leaking pentosin on a hot engine he would deal with it differently. Doesn't say much for him or the shop.


Last edited by Liquidcooled; 03-14-2010 at 06:26 AM.
  #17
Old 03-14-2010 | 09:18 AM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by OCTurbo
as above- bad clutch slave. make sure that it's a 2008 or newer slave that you replace it with, because there were faulty slaves before that.
I got a couple of slaves in my garage and just look at them to found a date of manufactured or some kind of info and nothing except part# and fabricated in Norway. How can you found the date of fabrication and do you know what kind of modification they did to improve slave longevity?

  #18
Old 03-14-2010 | 03:12 PM
Mikelly's Avatar
Registered User
Joined: Mar 2007
Posts: 3,813
From: Spotsylvania, Va
Rep Power: 320
Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !Mikelly Is a GOD !
Sorry but I don't support internet brands.. they are the cancer of the internet...

Renntrack.com for the real content on this thread... Chuck, really, don't bother PMing me... I don't care and yes I'm breaking the "rules"... Lions and tigers and bears oh my!
Mike


Last edited by Mikelly; 03-26-2010 at 08:42 PM.
  #19
Old 03-14-2010 | 03:53 PM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by Mikelly
JPFlip, the one I sent you is the latest/greatest. Was made in 2008. The Accumilator is a 2009 make piece.

Mike
Very nice to know! Thanks again mike.

  #20
Old 03-14-2010 | 06:02 PM
Liquidcooled's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 136
From: Canada
Rep Power: 26
Liquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really nice
Originally Posted by Mikelly
JPFlip, the one I sent you is the latest/greatest. Was made in 2008. The Accumilator is a 2009 make piece.

Mike
Would you happen to have a part number for the slave.

  #21
Old 03-14-2010 | 06:05 PM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by liquidcooled
would you happen to have a part number for the slave.
996 116 237 52

  #22
Old 06-09-2010 | 12:28 AM
Liquidcooled's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 136
From: Canada
Rep Power: 26
Liquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really nice
Took the car to the track again and had Pentosin leaking out of the small valve on the steering reservoir in the rear on to the engine again. I siphoned some Pentosin out of the steering reservoir in the rear to lower the level hoping it would fix the problem but it didn't work.

I called the dealership and told them about my problem and they said it will be tough to diagnose since it only does this at the track, they said that they would have to find a way to simulate the situation when my car is doing this....how are they going to simulate my car going around a track!... do you guys think I should try changing the clutch slave like some have mentioned in this thread.

  #23
Old 06-09-2010 | 01:53 AM
speed21's Avatar
Banned
Joined: Feb 2010
Posts: 2,634
Rep Power: 247
speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !speed21 Is a GOD !
Yes id change it. As the slave is interconnected and is a known common problem there really isnt any other thing else that can be causing your problem outside of the accumulator or slave cyl components.
I cant say i'd be doing the job myself though. Its really a job for the P dealer or someone who has done this job before. I've heard its a bear of a job.

  #24
Old 06-09-2010 | 08:58 AM
jjbravo's Avatar
Registered User
Joined: Nov 2008
Posts: 834
From: Upstate, NY
Rep Power: 116
jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !jjbravo Is a GOD !
Bad slave for sure causing front to rear intermix of the pentosin.
GT2 conversion...Not a hard job... just tight space.
I've decided to do it with my clutch change. Right now I'm just nursing it around.

  #25
Old 06-09-2010 | 03:59 PM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by Liquidcooled
Took the car to the track again and had Pentosin leaking out of the small valve on the steering reservoir in the rear on to the engine again. I siphoned some Pentosin out of the steering reservoir in the rear to lower the level hoping it would fix the problem but it didn't work.

I called the dealership and told them about my problem and they said it will be tough to diagnose since it only does this at the track, they said that they would have to find a way to simulate the situation when my car is doing this....how are they going to simulate my car going around a track!... do you guys think I should try changing the clutch slave like some have mentioned in this thread.
But the level, was it too high??? Higher than before you hit the track? I don't understand this problem because transfer of fluid from the front to the back never happen before, that i know, because the steering pressure from the steering pump is always present which is not the case for the clutch pedal pressure!!! But in any case if you do replace the slave lets us know if it fix something. How about this small valve on the tank. What is his function? Is it damaged or stuck open???

Take a look at this similar problem and answers that need to be looked at! http://answers.yahoo.com/question/in...0153337AAGi3kQ


Last edited by jpflip; 06-09-2010 at 04:18 PM.
  #26
Old 06-09-2010 | 07:50 PM
Liquidcooled's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 136
From: Canada
Rep Power: 26
Liquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really nice
Originally Posted by jpflip
But the level, was it too high??? Higher than before you hit the track? I don't understand this problem because transfer of fluid from the front to the back never happen before, that i know, because the steering pressure from the steering pump is always present which is not the case for the clutch pedal pressure!!! But in any case if you do replace the slave lets us know if it fix something. How about this small valve on the tank. What is his function? Is it damaged or stuck open???

Take a look at this similar problem and answers that need to be looked at! http://answers.yahoo.com/question/in...0153337AAGi3kQ
Before I went to the track the rear steering reservoir and the front reservoir were set at the MAX line so I siphoned the pentison out of both and set both of them to the MIN line so I knew they were not overfilled and went to the track and it still leaked pentosin out of the small valve on the rear steering reservoir onto the engine.

I'm not sure what the small valve on the rear steering reservoir is that has the green tag around it, but I'm guessing it's to relieve pressure when it gets to high in the steering reservoir system.

Do you think maybe it is the steering pump?

  #27
Old 06-10-2010 | 04:51 AM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Originally Posted by Liquidcooled
Before I went to the track the rear steering reservoir and the front reservoir were set at the MAX line so I siphoned the pentison out of both and set both of them to the MIN line so I knew they were not overfilled and went to the track and it still leaked pentosin out of the small valve on the rear steering reservoir onto the engine.

I'm not sure what the small valve on the rear steering reservoir is that has the green tag around it, but I'm guessing it's to relieve pressure when it gets to high in the steering reservoir system.

Do you think maybe it is the steering pump?
On my way back from work this afternoon I am going to try to blow air into that valve to see if it is blocked. You will do the same thing and found out if our cars are the same way. I suspect it should be blocked and only open in case of over pressure. But let see first if the valve is ok. If everything seems fine why not getting that fluid completely replace with new one. May be the fluid is contaminated and the boiling point is too low now..... Remember you only got that problem on the track when the steering system is in high demand.. Cheap first attempt to fix your problem.

  #28
Old 06-10-2010 | 01:40 PM
Liquidcooled's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 136
From: Canada
Rep Power: 26
Liquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really nice
Originally Posted by jpflip
On my way back from work this afternoon I am going to try to blow air into that valve to see if it is blocked. You will do the same thing and found out if our cars are the same way. I suspect it should be blocked and only open in case of over pressure. But let see first if the valve is ok. If everything seems fine why not getting that fluid completely replace with new one. May be the fluid is contaminated and the boiling point is too low now..... Remember you only got that problem on the track when the steering system is in high demand.. Cheap first attempt to fix your problem.

The valve on my steering reservoir in the rear has a green tag around it and a small rubber or plastic cap on it that if you push down on it the cap will move down slightly them spring up to its original position, It seems to be working right because that is were the Pentison is coming out of when the pressure gets to high.

I also changed the fluid about 7 months ago so it should be fine.

  #29
Old 06-10-2010 | 04:03 PM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !
Starnge????

Originally Posted by Liquidcooled
The valve on my steering reservoir in the rear has a green tag around it and a small rubber or plastic cap on it that if you push down on it the cap will move down slightly them spring up to its original position, It seems to be working right because that is were the Pentison is coming out of when the pressure gets to high.

I also changed the fluid about 7 months ago so it should be fine.

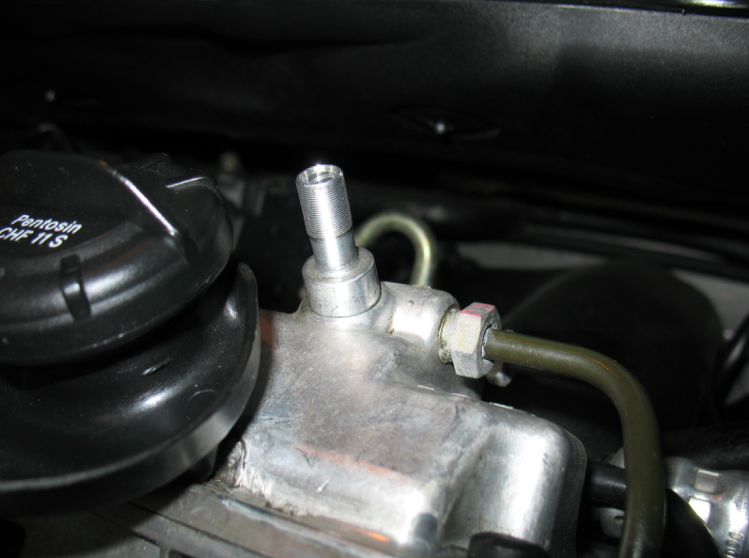

I don't have this "spring up" valve device you are talking about. My valve is completely solid. The stem doesn't move and I tried to blow air into it and it is solid. And yes I am talking about the valve on the steering reservoir with the green flag ?????? Updated valve???? My car is a 2002....

Attached Images

Last edited by jpflip; 06-10-2010 at 05:18 PM.
  #30
Old 06-10-2010 | 05:30 PM
Liquidcooled's Avatar
Thread Starter
|
Registered User
Joined: Nov 2006
Posts: 136
From: Canada
Rep Power: 26
Liquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really niceLiquidcooled is just really nice
Originally Posted by jpflip
I don't have this "spring up" valve device you are talking about. My valve is completely solid. The stem doesn't move and I tried to blow air into it and it is solid. And yes I am talking about the valve on the steering reservoir with the green flag ?????? Updated valve???? My car is a 2002....
Your valve is definitely different than mine. My steering reservoir was replaced a year age, it could be I have an updated part.
