Jack stand location under car
#1
Jack stand location under car
I assume you must use the jack points under the car to lift it but where to you place the jack stands? Is there a generally accepted location?
#3
Good info here: http://www.renntech.org/forums/index...on-jackstands/ But for the engine lift the position of the jack in the center of the crankcase is a bit different... Also here: https://www.6speedonline.com/forums/...le-stands.html
Last edited by jpflip; 02-13-2011 at 08:22 AM.
#4
Do not use the engine case to lift the back of the car. Although many people do this, you are asking for trouble. The cross member in front of the engine case attaches to a suspension carrier subframe. You can either jack the car from the rear jack points (with a long low profile jack) and slip jack stands under the suspension carrier at the crossmember or lift at the carrier points and place jack stands at the jacking points. Remember the car is very stiff and lifting from one side in the rear could unseat a jack stand in the front. Best to use two jack and lift the car evenly. An over abundance of caution can mitigate unintended consequences.
#6

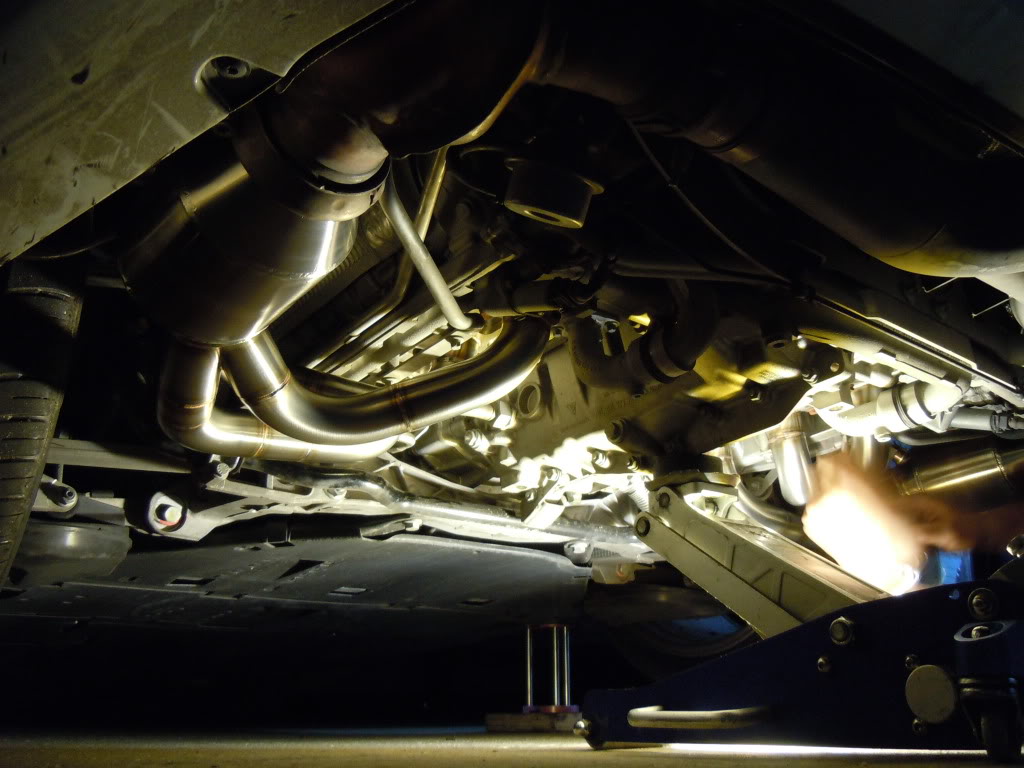

This is from GMG's shop. I'm assuming that they would practice a safe technique.
Last edited by bbywu; 01-06-2012 at 03:32 AM.
#7
What I found works well is to have two jacks. Put one under the rear jack pad and lift to obtain clearance to use the second jack under the rear cross member.
More info here https://www.6speedonline.com/forums/...bolt-mods.html
More info here https://www.6speedonline.com/forums/...bolt-mods.html
Trending Topics
#8
[QUOTE=bbywu;3418179]Can you elaborate?
When you are jacking the rear using the engine case you are transferring the whole load of the car by the two rear engine mounts which are not designed for these type of negative loads. People do it, but I wouldn't. I use two low profile jacks with stop pins and jack using the factory jack points. Then I install the pins locking the jacks in position. I leave the jacks in place and in addition I place two jack stands under the rear suspension carrier (as pictured in an earlier post here) as back up. I think a lot of shops use the engine case as it is the quickest method and for them time is money. I seriously doubt a factory Porsche shop uses the engine case to jack the car.
When you are jacking the rear using the engine case you are transferring the whole load of the car by the two rear engine mounts which are not designed for these type of negative loads. People do it, but I wouldn't. I use two low profile jacks with stop pins and jack using the factory jack points. Then I install the pins locking the jacks in position. I leave the jacks in place and in addition I place two jack stands under the rear suspension carrier (as pictured in an earlier post here) as back up. I think a lot of shops use the engine case as it is the quickest method and for them time is money. I seriously doubt a factory Porsche shop uses the engine case to jack the car.
#9
When you are jacking the rear using the engine case you are transferring the whole load of the car by the two rear engine mounts which are not designed for these type of negative loads. People do it, but I wouldn't. I use two low profile jacks with stop pins and jack using the factory jack points. Then I install the pins locking the jacks in position. I leave the jacks in place and in addition I place two jack stands under the rear suspension carrier (as pictured in an earlier post here) as back up. I think a lot of shops use the engine case as it is the quickest method and for them time is money. I seriously doubt a factory Porsche shop uses the engine case to jack the car.
Although the engine mounts are designed to support lateral displacement, I assumed that it would support downward force of the chassis with upward lift of the engine. On many tracks, the car is designed to take significant lateral and vertical forces. Perhaps I should reconsider.
#10
I was never able to find a low profile jack with built in stands low enough to slide under my GT3, so I am forced to use either the jack points or the engine crankcase.
Although the engine mounts are designed to support lateral displacement, I assumed that it would support downward force of the chassis with upward lift of the engine. On many tracks, the car is designed to take significant lateral and vertical forces. Perhaps I should reconsider.
Although the engine mounts are designed to support lateral displacement, I assumed that it would support downward force of the chassis with upward lift of the engine. On many tracks, the car is designed to take significant lateral and vertical forces. Perhaps I should reconsider.
#11
Last edited by Duane996tt; 01-06-2012 at 02:02 PM.
#12
I just did this today exactly as pictured and would recommend it for several reasons:
-Eliminates the debate/concern about lifting from below the engine (therefore no engine mount failure issues).
-Lifts up the car at the only jack point locations indicated on the vehicle.
-Does not require multiple jacks.
-Works like a charm, was easy and straight forward to do.
-Eliminates the debate/concern about lifting from below the engine (therefore no engine mount failure issues).
-Lifts up the car at the only jack point locations indicated on the vehicle.
-Does not require multiple jacks.
-Works like a charm, was easy and straight forward to do.
#13
jacking on engine
In 40 years going back to my time at the factory the jack was always placed under the engine case close to the flywheel, it did not touch the transmission bellhousing. I have never seen or heard of a failure of an engine case as a result of this. Maybe you have a different experience
