Oil sender unit

Can somone tell me the location of the oil sender unit? It's playing up again. Dial stuck on 5 bars and displaying erratic behaviour. As my gearbox was out I am wondering if its location is by the gearbox anywhere in case something got disturbed (lose contact). If it is located in the engine bay this means it lasted only two years again.

  #2
Old 03-25-2012 | 08:52 AM
raineycd's Avatar
Registered User
Joined: Jan 2009
Posts: 2,249
Rep Power: 163
raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !raineycd Is a GOD !
It is right behind the oil filter.

On page 28 it is number 45:

http://www.porsche.com/all/media/pdf...6T_KATALOG.pdf

  #3
Old 03-25-2012 | 09:43 AM
Terminator's Avatar
Thread Starter
|
Registered User
Joined: Jul 2007
Posts: 1,276
From: London
Rep Power: 87
Terminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant future
Tanx. Ok, so gearbox out/nothing to do with it...

  #4
Old 03-25-2012 | 09:59 AM
landjet's Avatar
Registered User
Joined: Apr 2007
Posts: 3,633
From: Maryland
Rep Power: 275
landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !landjet Is a GOD !
Are you sure it's not a faulty oil pressure sensor? Mine went bad and had to be replaced.

  #5
Old 03-25-2012 | 10:26 AM
Terminator's Avatar
Thread Starter
|
Registered User
Joined: Jul 2007
Posts: 1,276
From: London
Rep Power: 87
Terminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant future
Originally Posted by landjet
Are you sure it's not a faulty oil pressure sensor? Mine went bad and had to be replaced.
Yes I am sure now. However I replaced mine 2 years ago. So short life span???

  #6
Old 03-25-2012 | 11:56 AM
Terminator's Avatar
Thread Starter
|
Registered User
Joined: Jul 2007
Posts: 1,276
From: London
Rep Power: 87
Terminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant future
On second thought, I am not sure. So where is the sensor? Are symptoms the same? Last time this erratic dial was atributed to the oil sending unit. Once replaced all was ok for 2 years. So how to diagnose which is bad unit or sensor? Where is the sensor located? I find it weird it's gone exactly as i had my gearbox out and main shaft bearing replaced.

  #7
Old 03-25-2012 | 12:14 PM
jpflip's Avatar
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 266
jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !jpflip Is a GOD !

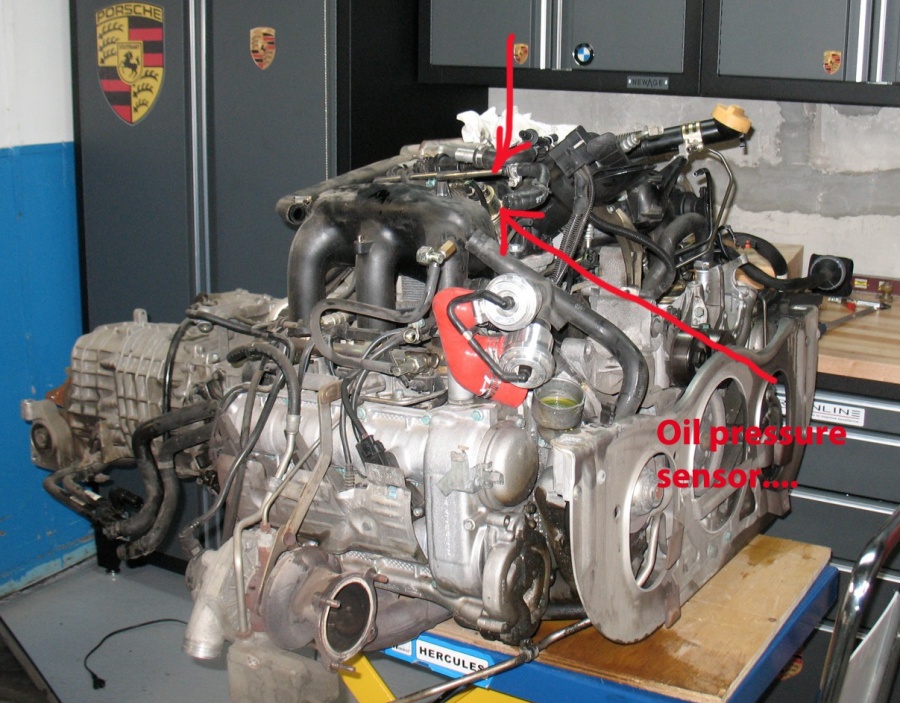

Look at the two wires and check if they are properly installed....Location is just behind the oil filter...

Attached Images
  #8
Old 03-25-2012 | 12:28 PM
Terminator's Avatar
Thread Starter
|
Registered User
Joined: Jul 2007
Posts: 1,276
From: London
Rep Power: 87
Terminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant future
Originally Posted by jpflip
Look at the two wires and check if they are properly installed....Location is just behind the oil filter...
Will do. Thanks.

  #9
Old 07-03-2012 | 02:23 PM
MrWhite's Avatar
Registered User
Joined: Mar 2009
Posts: 1,680
From: Bay Area
Rep Power: 120
MrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond reputeMrWhite has a reputation beyond repute
What did you find out? I have the exact same deal going on, mostly works but sometimes shows 5bar and sometimes hops around. Going to take care of it now.

  #10
Old 07-03-2012 | 02:28 PM
SamboTT@ByDesign's Avatar
Former Vendor
Joined: Sep 2003
Posts: 4,901
From: L.A.
Rep Power: 0
SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !
Very common. Clean the contacts and pinch them on well. especially if they act up after some service or if you have moved things around. They do go bad once in a while but there's a high chance you have a contact issue.

Good luck

  #11
Old 07-04-2012 | 03:06 AM
Etahgnimusnoc's Avatar
Registered User
Joined: Aug 2011
Posts: 217
From: VA
Rep Power: 22
Etahgnimusnoc is infamous around these parts
I actually just replaced mine about 5 days ago. I was getting erratic behavior as well and even experienced a failure code that said "Failure indicator" and showed the oil symbol. The part was roughly 80 bucks removed intake box and inlet, had motor stand/lift and removed 2 bolts from the motor mounts and dropped the motor about 4 inches or so and could reach right in and change it. Do not know if this helps or not.
-Scott

  #12
Old 07-04-2012 | 10:06 AM
BretW's Avatar
Registered User
Joined: Apr 2010
Posts: 114
From: Carmel, CA
Rep Power: 19
BretW is infamous around these parts
Originally Posted by Etahgnimusnoc
I actually just replaced mine about 5 days ago. I was getting erratic behavior as well and even experienced a failure code that said "Failure indicator" and showed the oil symbol. The part was roughly 80 bucks removed intake box and inlet, had motor stand/lift and removed 2 bolts from the motor mounts and dropped the motor about 4 inches or so and could reach right in and change it. Do not know if this helps or not.
-Scott
Mine was doing the same as Scott's. I had the sensor replaced under CPO and it's been fine for the last year.

  #13
Old 07-04-2012 | 02:25 PM
uschoice's Avatar
Registered User
Joined: Jul 2011
Posts: 474
From: Orange County, CA
Rep Power: 48
uschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant futureuschoice has a brilliant future
Originally Posted by MrWhite
What did you find out? I have the exact same deal going on, mostly works but sometimes shows 5bar and sometimes hops around. Going to take care of it now.
Yeah, what was the outcome with the sending unit? It's a shame when someone has a problem, but we never hear how it was fixed.

  #14
Old 07-08-2012 | 03:08 AM
Terminator's Avatar
Thread Starter
|
Registered User
Joined: Jul 2007
Posts: 1,276
From: London
Rep Power: 87
Terminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant future
Originally Posted by uschoice
Yeah, what was the outcome with the sending unit? It's a shame when someone has a problem, but we never hear how it was fixed.
Tried to fix contacts but ***** to get to. Sprayed some contact cleaner on contacts thought I fixed it but didn't. Fault came back! Seems to tricky to DIY so I will take it to Porsche. However I will warn them if it happens again in 2 years I want next one replaced for free!

I guess we will never know if it's the contacts or the unit because Porsche will
of course replace the unit!

  #15
Old 07-15-2012 | 04:34 AM
Terminator's Avatar
Thread Starter
|
Registered User
Joined: Jul 2007
Posts: 1,276
From: London
Rep Power: 87
Terminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant futureTerminator has a brilliant future
I bought a proper high quality electric contact cleaner with a long straw. I sprayed again all over the contacts when the car was hot and then left it for the night.

Today I drove 300 miles. No fault. Also dial is at 4.5 maximum now as before when playing up it got to 5 max on the dial and then dropped to zero which indicated fault.

So all good thus far.

Fingers x-ed. Will keep reporting.
