dead battery
#17
I will try looking it up in the manual but where exactly is the fuse box and what fuse # is for the hood release?
Any picts would be great
Thanks
#18

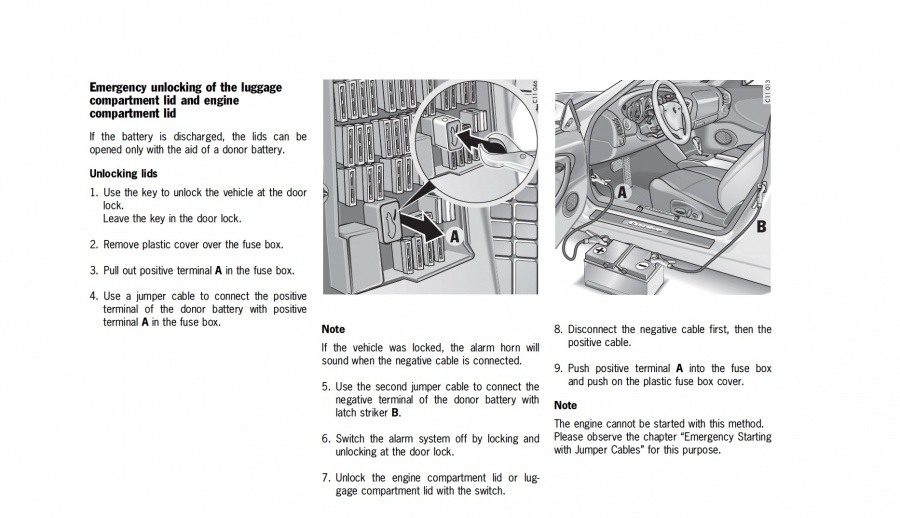

Pictures I took just for you !

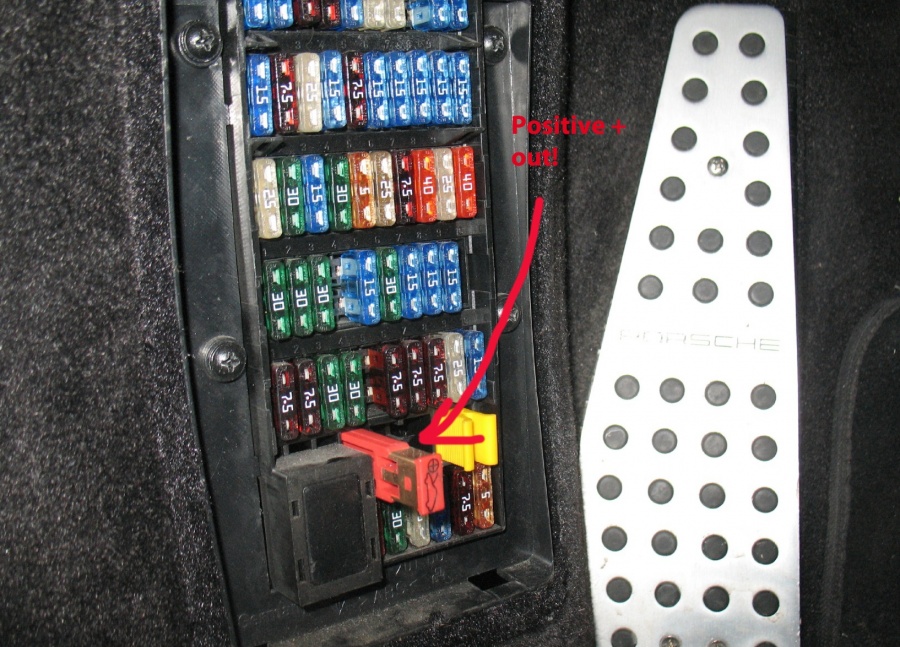

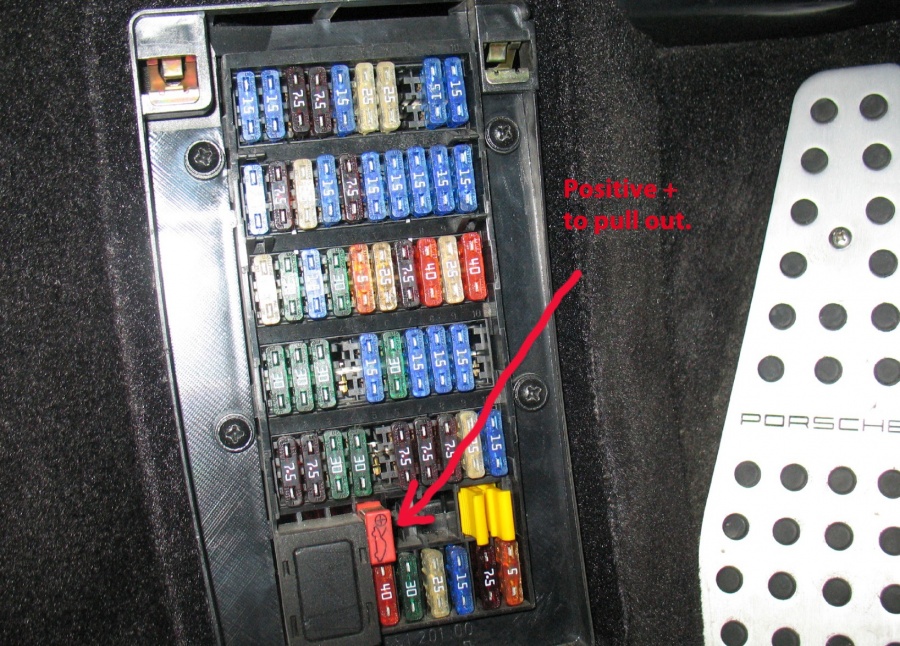

Location of the fuse box. Location of the positive post (terminal A). Location of the positive post (after pulling it out)....On the second post you will found where you should connect your negative (the door hook or latch striker).
Location of the fuse box. Location of the positive post (terminal A). Location of the positive post (after pulling it out)....On the second post you will found where you should connect your negative (the door hook or latch striker).
Last edited by jpflip; 10-21-2012 at 06:55 AM.
#19

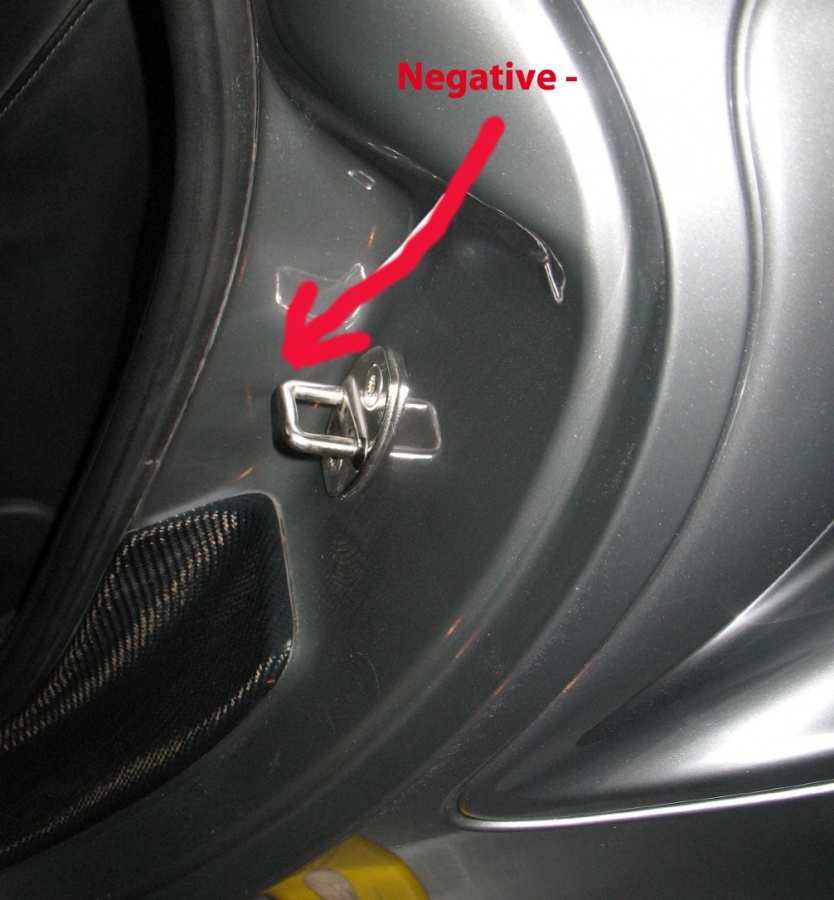

Here is where you should connect the black or negative of your external battery. The door hook or latch striker. (terminal B)
Last edited by jpflip; 10-21-2012 at 06:57 AM.
#20
Dedicatin to learn and to help others is what makes us all come here on the enthusiast web sites
jpflip & 6 Speed rocks (could not find the appropriate similie for rocking though )
Btw, I couldn't find the manual either, must be in the trunk.
Thanks once again
#22
The fuse box lay out is slightly different but I was able to figure it out.

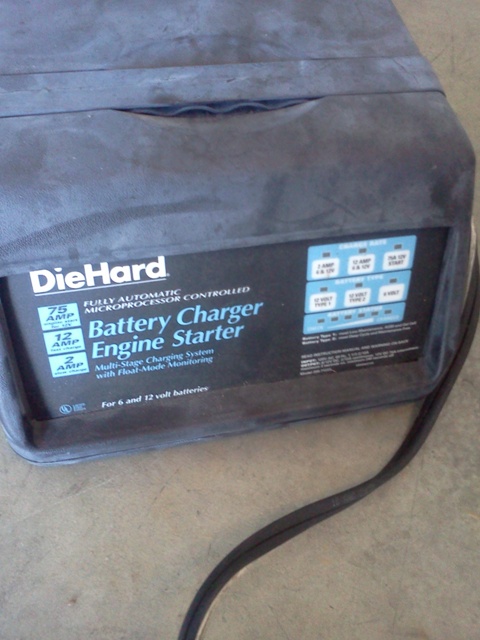

Anyway, tried using one of these and after hooking the cables up, nothing happened.
I used the stting that read (75 AMP/12 Volts/jump start) and still nothing happened.
Even my key is stuck in the key hole which I am unable to get out.
Do I need to get the jumper cables and hook them up to another battery and do it that way?
Thanks
Anyway, tried using one of these and after hooking the cables up, nothing happened.
I used the stting that read (75 AMP/12 Volts/jump start) and still nothing happened.
Even my key is stuck in the key hole which I am unable to get out.
Do I need to get the jumper cables and hook them up to another battery and do it that way?
Thanks
Last edited by quick; 10-21-2012 at 09:15 AM.
#23
I think you should get a battery with jumper connected as per previous post. May be your battery tender does not supply enough amperage to get the hood to open. The key is stuck ????
#24
Yeah, the key is still in the car and I can turn it as If I am starting the car but I can't get it out?
#27
Will not start even with the new battery using the jumper cables
The manual says open the lid using the remote button but the problem is my dang key is stuck in the igniyion and the lid latch will not work
So what's the plan B
The manual says open the lid using the remote button but the problem is my dang key is stuck in the igniyion and the lid latch will not work
So what's the plan B
#28
Obviously you don't have a second key..... The other choice you have is to found the cable release behind the front right hand wheel well cover....See pics post #7....I am nervous when you say "will not start" I hope you mean will not open. Because this red post in the fuse box should be used only to open the front bonnet to eventually connect a battery charger to the battery.... The key is stock in the door or the ignition?
Last edited by jpflip; 10-21-2012 at 12:07 PM.
#29
Obviously you don't have a second key..... The other choice you have is to found the cable release behind the front right hand wheel well cover....See pics post #7....I am nervous when you say "will not start" I hope you mean will not open. Because this red post in the fuse box should be used only to open the front bonnet to eventually connect a battery charger to the battery.... The key is stock in the door or the ignition?
Funny and frustrating 'coz last time I tried taking the wheel off it was stuck too and I didn't try very hard 'coz I was afraid I might damage the PCCB.
