#16

07-30-2013, 04:09 PM

996tt550hp

Banned

Join Date: Apr 2012

Location: Atlanta

Posts: 1,603

Rep Power: 113

996tt550hp has a reputation beyond repute

Quote:

Originally Posted by winnigt2

that is possible, i prefer to check oillevel only at real hot engine

No whoever is telling you this is wrong. For oil to get in your boost hoses means you have a turbo seal leaking.

Reply

#17

07-30-2013, 04:26 PM

rmc1148

Registered User

Join Date: Jul 2012

Location: kirkwood pa

Posts: 2,382

Rep Power: 433

I have not fooled with my 996tt turbos as of yet but have quite a bit on A4/s4 and they have all had some oil in the inner cooler hoses for what that's worth lol.

Reply

#18

07-30-2013, 04:30 PM

rmc1148

Registered User

Join Date: Jul 2012

Location: kirkwood pa

Posts: 2,382

Rep Power: 433

Meant intercooler hoses of course should not watch TV and type lol.

Reply

#19

07-30-2013, 04:50 PM

King James

Registered User

Join Date: Nov 2012

Location: Toronto

Posts: 613

Rep Power: 65

King James has a reputation beyond repute

Quote:

Originally Posted by TTdude

The thermal expansion coefficient for Mobil 1 is approximately 0.0005 vol unit/F. Thus, for a 50 degree increase in temp, 9 quarts of oil would expand less than 3%. So I don't think it would make a whole lot of difference unless it was overfilled to begin with.

Using your math, 3% of 9L is 270ML or about 1/4 of a Liter. Not much but if you had your car filled to the very top (max limit) how would you feel about putting in an extra 1/4?

Guess there is some logic to the statement...

Reply

#20

07-30-2013, 04:50 PM

996tt550hp

Banned

Join Date: Apr 2012

Location: Atlanta

Posts: 1,603

Rep Power: 113

Any oil in the intercooler hoses you need to have your indy check on your turbos. Trust me when i tell you don't let them get any worse if it is the seals.

Reply

#21

07-31-2013, 10:36 AM

winnigt2

Registered User

Join Date: Jun 2007

Location: germany

Posts: 610

Rep Power: 63

Quote:

Originally Posted by 996tt550hp

No whoever is telling you this is wrong. For oil to get in your boost hoses means you have a turbo seal leaking.

if you are simply overfill your oillevel you can get get oil in your boost hoses too, because the overfill line goes into the intake boost hose

Reply

#22

07-31-2013, 10:49 AM

996tt550hp

Banned

Join Date: Apr 2012

Location: Atlanta

Posts: 1,603

Rep Power: 113

Quote:

Originally Posted by winnigt2

if you are simply overfill your oillevel you can get get oil in your boost hoses too, because the overfill line goes into the intake boost hose

Ummmmm plz take a pic because i see all of my hoses and no lines go in there.

Reply

#23

08-01-2013, 06:38 AM

winnigt2

Registered User

Join Date: Jun 2007

Location: germany

Posts: 610

Rep Power: 63

Quote:

Originally Posted by 996tt550hp

Ummmmm plz take a pic because i see all of my hoses and no lines go in there.

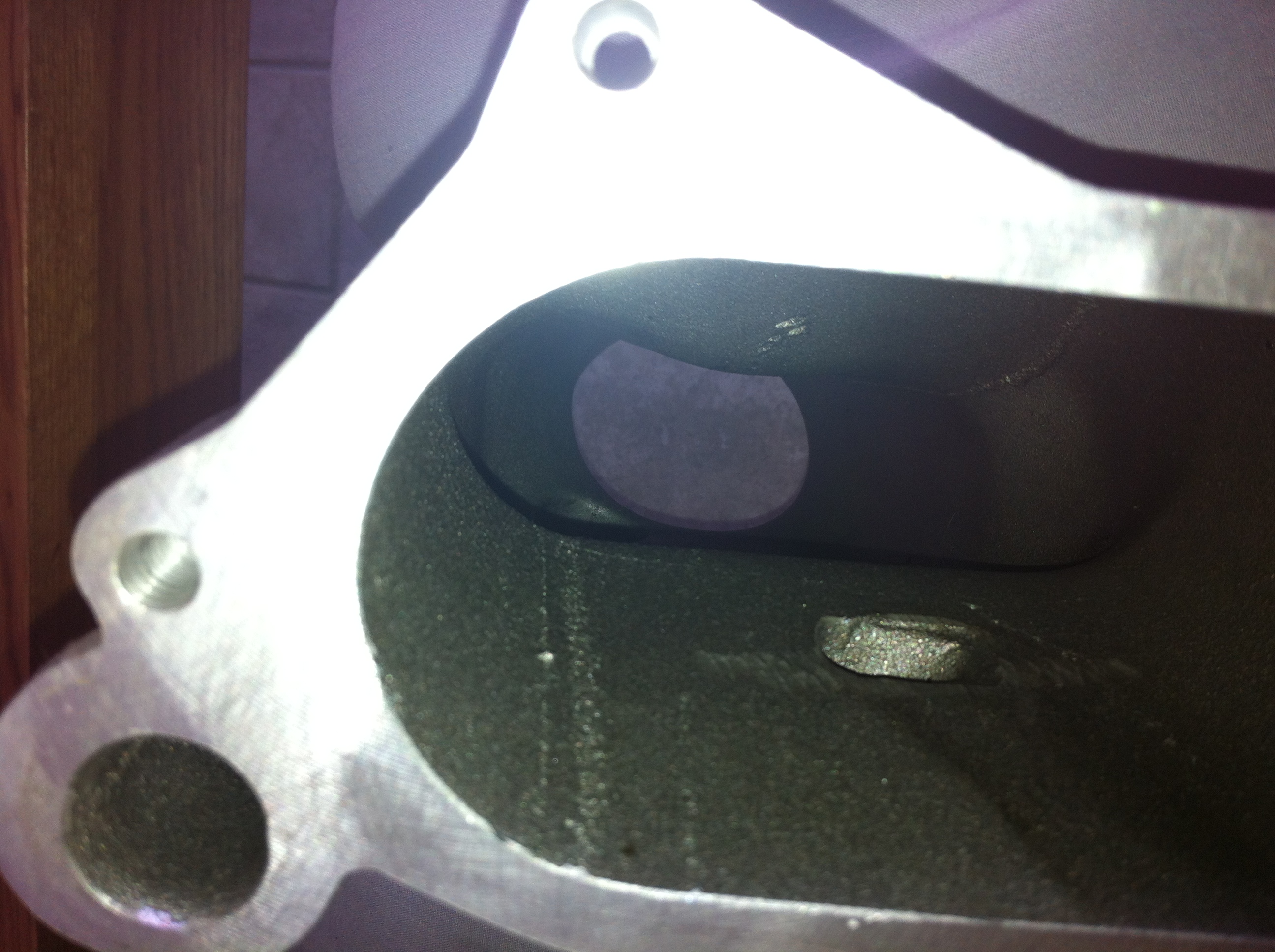

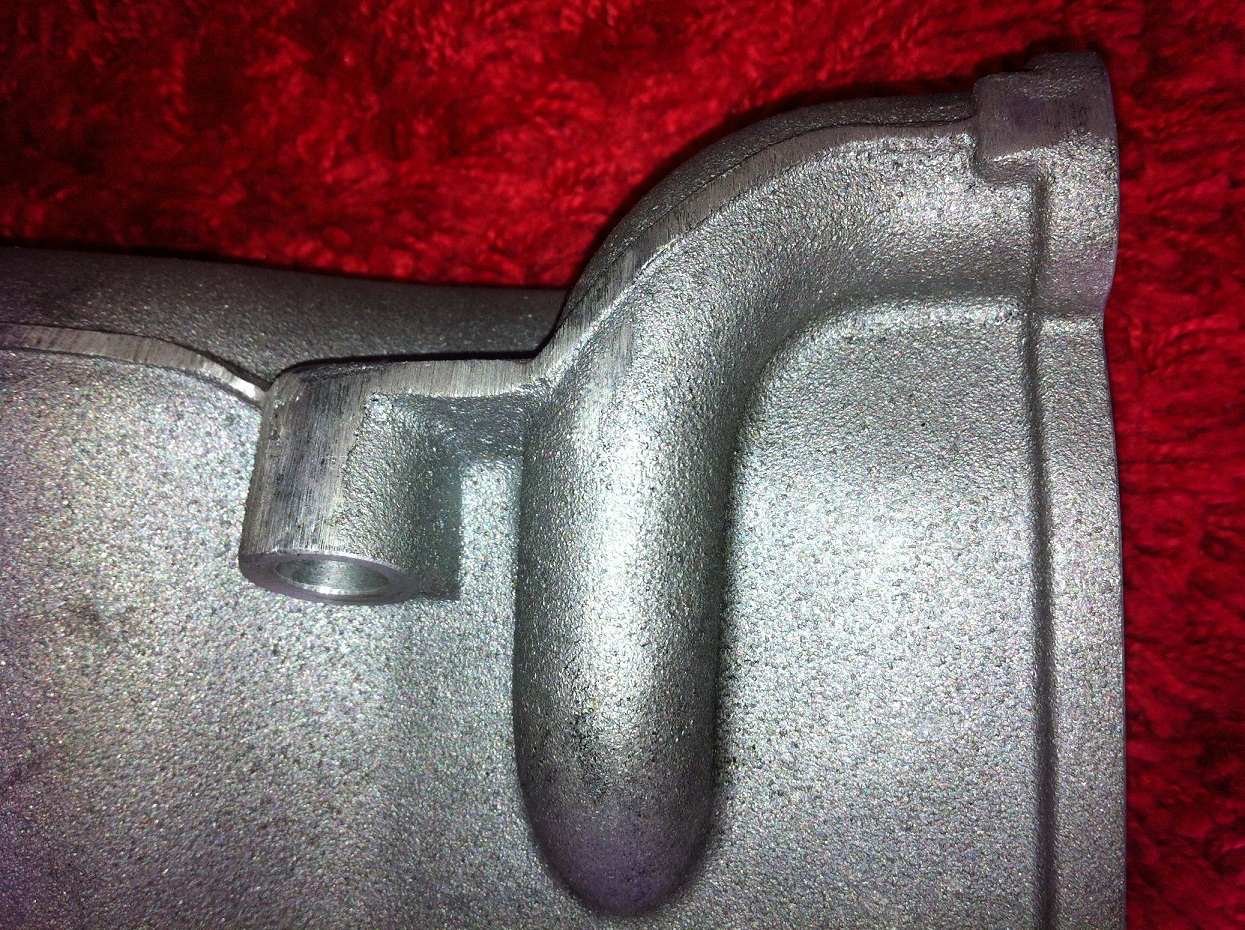

follow the small hole at the intakeplenum and you find your oiltank....pictures attached

and exact at this point overfilled oil at hot engine goes into the intake tract

Attached Thumbnails

Click image for larger version

Name: IMG_0516.JPG
Views: 117
Size: 1.25 MB
ID: 266653

Click image for larger version

Name: IMG_0517f.jpg
Views: 99
Size: 668.2 KB
ID: 266654

Last edited by winnigt2; 08-01-2013 at 06:45 AM.

Reply

#24

08-01-2013, 07:15 AM

996tt550hp

Banned

Join Date: Apr 2012

Location: Atlanta

Posts: 1,603

Rep Power: 113

Quote:

Originally Posted by winnigt2

follow the small hole at the intakeplenum and you find your oiltank....pictures attached

and exact at this point overfilled oil at hot engine goes into the intake tract

I just asked if we had and oil fill drain at Porsche they said no. I have over filled mine and I never had any oil in my pipe so I recommend to get your turbos checked.

Reply
