Inlet Pipe Removal

Hey guys, going crazy here trying to pull my inlet pipes out with the engine still in. I cut the pipe as high up as I could and top or bottom removal both seem close but not quite there. I believe it has to come out the top but could really use some pointers here, thanks all.

  #2
Old 01-09-2015 | 10:42 PM
Wealth Manager's Avatar
Registered User
Joined: Apr 2009
Posts: 1,236
From: NY
Rep Power: 108
Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !Wealth Manager Is a GOD !
If you are good you only need to drop the Trans to do the inlets (removal/install new), but most people need to drop the motor.....

If you are doing so with both in place, I don't think it can be done.


Last edited by Wealth Manager; 01-09-2015 at 10:44 PM.
  #3
Old 01-09-2015 | 10:50 PM
stilov's Avatar
Registered User
Joined: Jun 2010
Posts: 1,035
From: McKinney TX
Rep Power: 117
stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !stilov Is a GOD !
I pulled mine off with trans out.

I didn't really have a sawzall so I found something out.

Small hit with the angle grinder just enough to make a hole. Then put my crowbar in, pry and pop. It broke into some clean pieces. After that I pulled it out the top.

My motor mounts were undone and dropped the motor about 3 or 4 inches too.

  #4
Old 01-10-2015 | 12:12 AM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
inlet has to be broken in half, then from underneath reach as high as possible and cut with a sazall. drop the motor as far as you can and lower the trans. remove the fuel filter and you have just enough room to snake it out.

  #5
Old 01-10-2015 | 12:13 AM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by Wealth Manager
If you are good you only need to drop the Trans to do the inlets (removal/install new), but most people need to drop the motor.....

If you are doing so with both in place, I don't think it can be done.
not possible with motor raised in place.

  #6
Old 01-10-2015 | 12:33 PM
The Pork Hunt's Avatar
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 134
From: Calgary
Rep Power: 40
The Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond repute
Thanks guys I figured from the top. I have my tranny dropped as I'm also doing clutch, turbos, injectors and pump. I have it so close but that fuel filter mount that's part of the coolant reservoir is really in the way. I almost want to cut it out. I'll try again tomorrow when I get some time, cheers!

  #7
Old 01-10-2015 | 01:52 PM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
i didn't have to but you can remove the reservoir and get even more room. might try turning the hacked up piece so the narrow side is closest to the reservoir

  #8
Old 01-10-2015 | 05:28 PM
03EvoIII's Avatar
Registered User
Joined: Sep 2011
Posts: 1,266
From: Colorado
Rep Power: 93
03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute03EvoIII has a reputation beyond repute
Its hard. A few tears might have been cried but in the end I was able to do it with the motor and tranny in place!

  #9
Old 01-10-2015 | 08:56 PM
The Pork Hunt's Avatar
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 134
From: Calgary
Rep Power: 40
The Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond repute
Originally Posted by 03EvoIII
Its hard. A few tears might have been cried but in the end I was able to do it with the motor and tranny in place!
Bravo!

  #10
Old 01-11-2015 | 09:37 AM
winnigt2's Avatar
Registered User
Joined: Jun 2007
Posts: 610
From: germany
Rep Power: 63
winnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond reputewinnigt2 has a reputation beyond repute

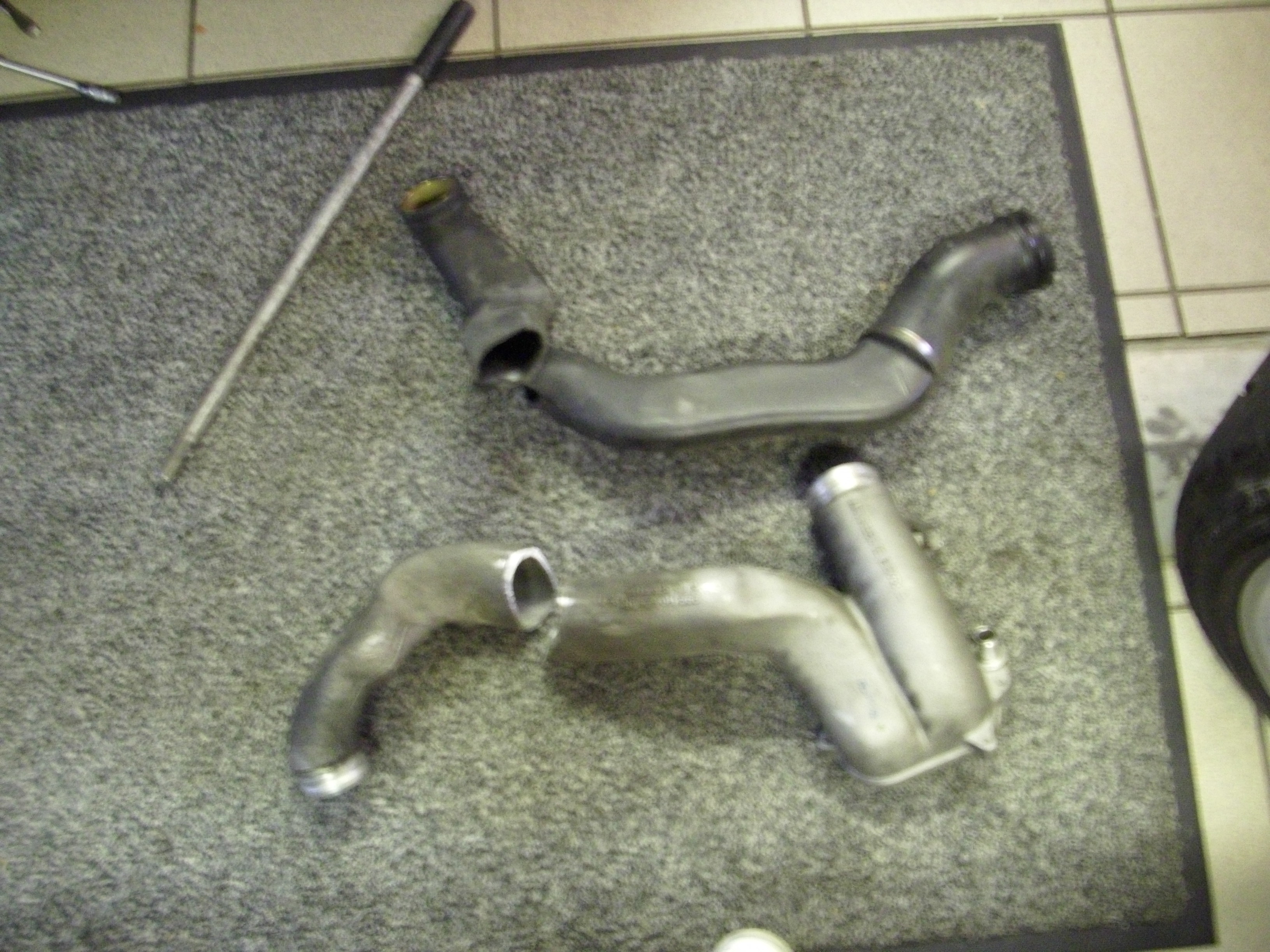

at the end it Looks like the attachments......but it is possible with a saw electrical

with lowered engine cut it in pieces

Attached Thumbnails Click image for larger version

Name:	DSCI0395.JPG
Views:	86
Size:	1.34 MB
ID:	411755

Last edited by winnigt2; 01-11-2015 at 03:47 PM.
  #11
Old 01-11-2015 | 11:06 AM
johnny.dangerous's Avatar
Registered User
Joined: Nov 2013
Posts: 679
From: UK
Rep Power: 51
johnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud of
If you pulled the trans to do a clutch I cannot see why you did not just drop the whole lot out, it makes everything so much easier, if you take into account the time you have already spent trying to get the inlet out its a no brainer.

  #12
Old 01-11-2015 | 12:27 PM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by johnny.dangerous
If you pulled the trans to do a clutch I cannot see why you did not just drop the whole lot out, it makes everything so much easier, if you take into account the time you have already spent trying to get the inlet out its a no brainer.
its not the trans thats in the way. its the small space between the back of the engine and the firewall. with the bend of the plenum you can't clear the engine enough to get it out.

  #13
Old 01-11-2015 | 12:28 PM
The Pork Hunt's Avatar
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 134
From: Calgary
Rep Power: 40
The Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond reputeThe Pork Hunt has a reputation beyond repute
Originally Posted by johnny.dangerous
If you pulled the trans to do a clutch I cannot see why you did not just drop the whole lot out, it makes everything so much easier, if you take into account the time you have already spent trying to get the inlet out its a no brainer.
I didn't want to deal with the coolant mess, I've definitely thought twice about my decision though.


Last edited by The Pork Hunt; 01-11-2015 at 12:31 PM.
  #14
Old 01-11-2015 | 12:49 PM
johnny.dangerous's Avatar
Registered User
Joined: Nov 2013
Posts: 679
From: UK
Rep Power: 51
johnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud ofjohnny.dangerous has much to be proud of
Originally Posted by 32krazy!
its not the trans thats in the way. its the small space between the back of the engine and the firewall. with the bend of the plenum you can't clear the engine enough to get it out.
I meant drop motor and trans, I do this every time now as it may take slightly longer but the heartache is far less !!!!

  #15
Old 01-11-2015 | 12:53 PM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by johnny.dangerous
I meant drop motor and trans, I do this every time now as it may take slightly longer but the heartache is far less !!!!
thats complete overkill if your just doing inlets. if you have to drop the motor then thats when most do it. this was the first mod i did and was determined to do it with the engine in. i succeeded but ultimately wasn't worth the hassle. should have just went mafless ripped it all out and use filter in the fender wells. much less painful in the end
