Is this 996TT Viscous Coupling or a 997TT?
#1
02-19-2016, 06:24 AM
Is this 996TT Viscous Coupling or a 997TT?

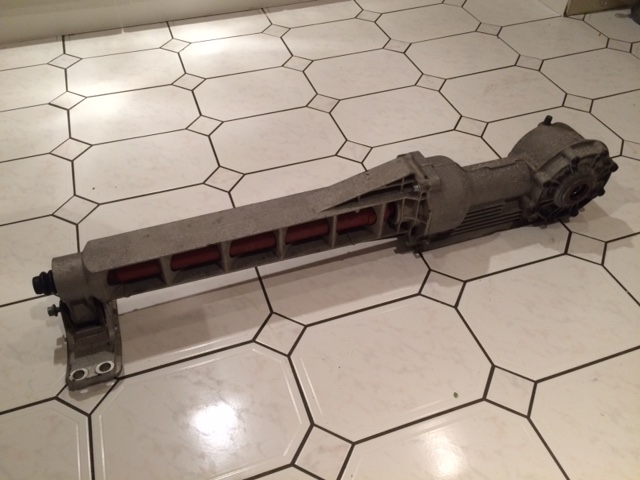

Im sure this is a 997TT VC and drive shaft? Can any one comment please?
The reason I ask is a someone approached me wanting to sell on so I wanted to be sure.

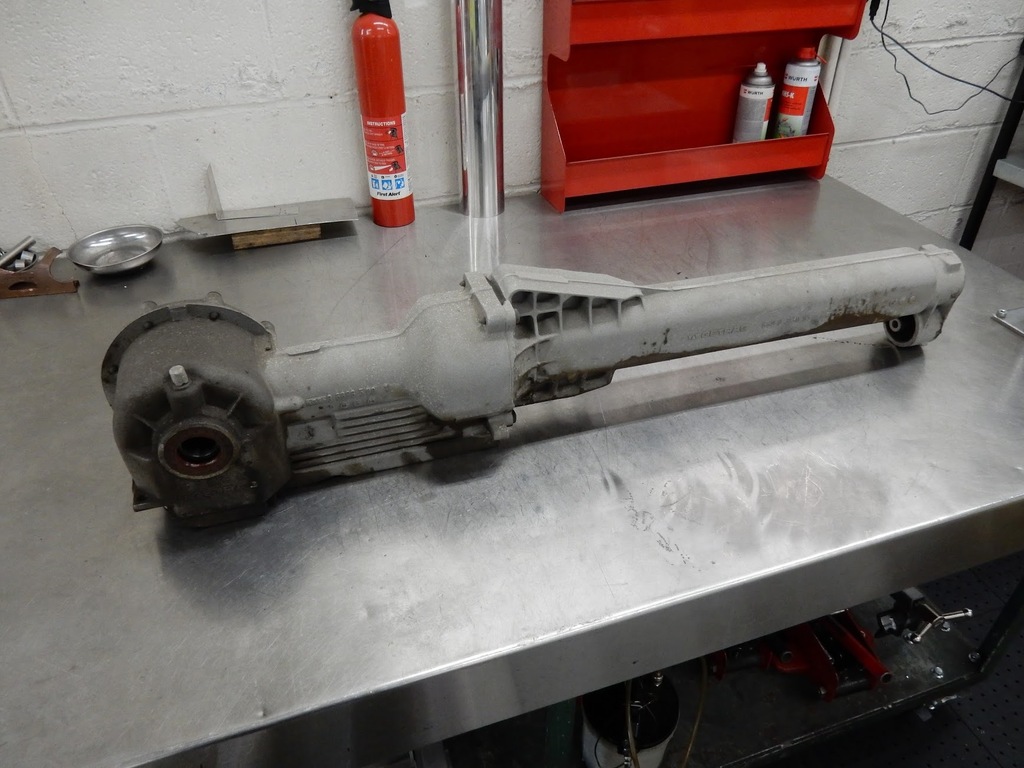

What I think a 996TT VC and drive shaft look like;
Any input greatly appreciated.
The reason I ask is a someone approached me wanting to sell on so I wanted to be sure.
What I think a 996TT VC and drive shaft look like;
Any input greatly appreciated.
#2
02-19-2016, 07:49 AM
My WAG is it looks like a 996 Turbo front diff, viscous coupling with cardan shaft.
The 997 coupling is a wet clutch pack with the amount of engagement controlled by the DME. Thus I would expect to see some kind of a wiring harness connector on the diff/clutch pack housing.
Should be some part numbers on the hardware some place. Find them and write them down and google them.
The 997 coupling is a wet clutch pack with the amount of engagement controlled by the DME. Thus I would expect to see some kind of a wiring harness connector on the diff/clutch pack housing.
Should be some part numbers on the hardware some place. Find them and write them down and google them.
#4
02-19-2016, 11:02 AM
Looks like a 996 front diff with a 997 torque tube assembly bolted up to it. Not sure if thats an upgrade or if Porsche made any like that or why it would be done
Like mentioned above, if it is 997 front diff, it would have a wiring harness coming out right after the section where the 2 halves of the assembly bolt together.
Like mentioned above, if it is 997 front diff, it would have a wiring harness coming out right after the section where the 2 halves of the assembly bolt together.
#5
02-23-2016, 08:10 PM
Registered User
Join Date: Aug 2009
Location: Houston Tx
Age: 39
Posts: 2,496
Rep Power: 186
#6
02-24-2016, 12:26 PM
Basic Sponsor
it may be 997 C4s ... it used 996 style viscous coupling.
check to see if it has a small electric plug on it for the diff control.... that will be your answer.
check to see if it has a small electric plug on it for the diff control.... that will be your answer.
__________________
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
Trending Topics
#8
02-24-2016, 07:22 PM
Registered User
If the part number matches a Turbo..go by the part number..BTW what is the part number? Do not go by the housing design, it is an updated housing, I made the parts department verify this once when I was doing a replacement years ago on a 996T that originally had the smooth type and the replacement was the skeleton type.
#9
02-25-2016, 08:30 PM
Registered User
Join Date: Aug 2009
Location: Houston Tx
Age: 39
Posts: 2,496
Rep Power: 186
then it would be a 997.1tt diff, and have the Electrical harness sticking out
