whats needed to remove the airbag/ and wheel?

any special tools or pulling devices? Ive never pulled a wheel and I'm getting ready to change my air bag out to another.

  #2
Old 01-19-2017 | 11:45 AM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !

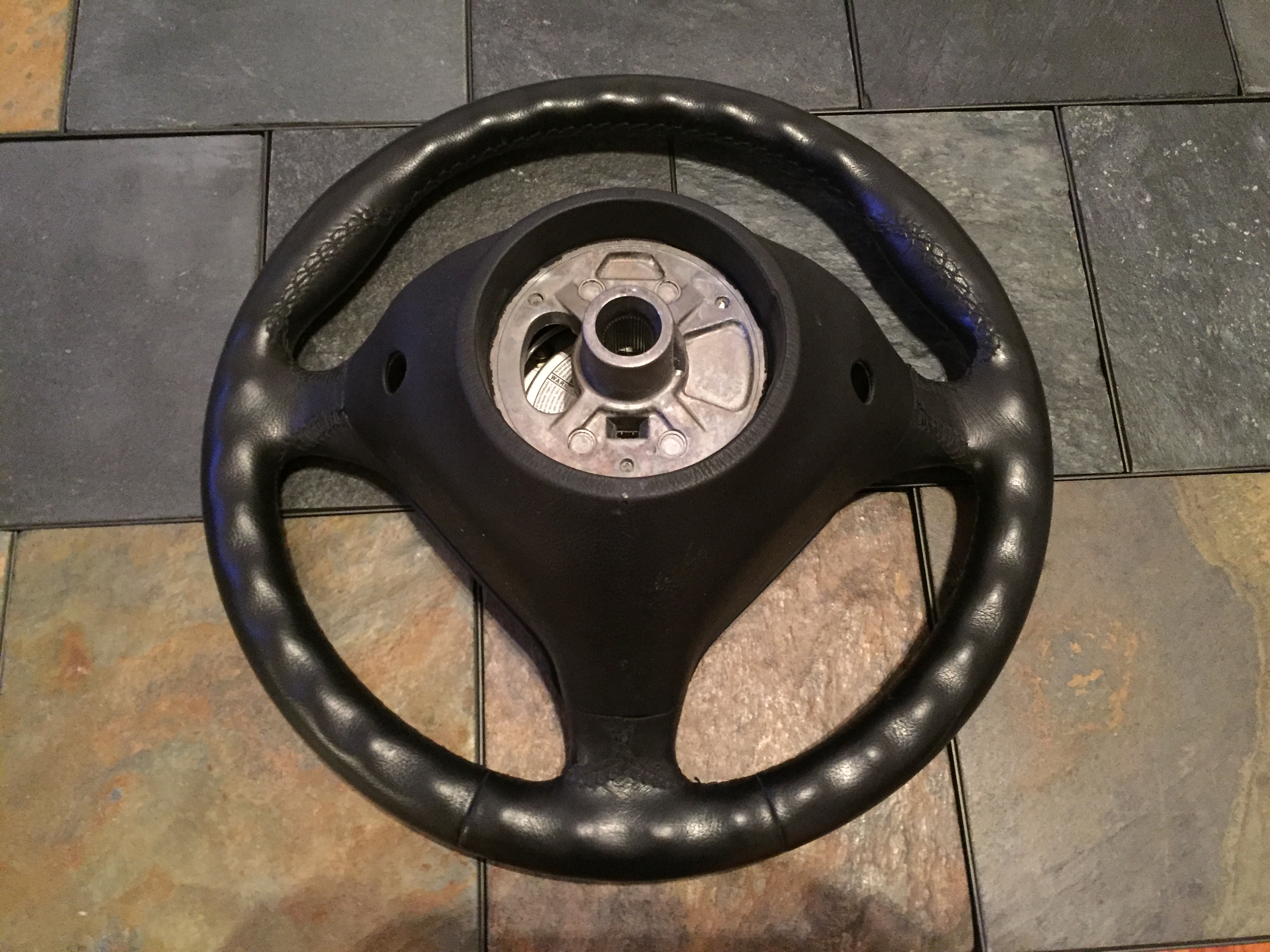

2 torx bits benhind the wheel. disconnect the battery for a good 20 minutes to discharge any juice. turn the wheel so the torx are at the bottom and remove them remoive the bag and theres a plug at the back. remove it thats about it

Attached Thumbnails Click image for larger version

Name:	IMG_1455.JPG
Views:	93
Size:	1.63 MB
ID:	468115   Click image for larger version

Name:	IMG_1457.JPG
Views:	63
Size:	1.28 MB
ID:	468116
  #3
Old 01-19-2017 | 08:09 PM
gophaster's Avatar
Registered User
Joined: Jan 2012
Posts: 710
From: South FLA
Rep Power: 206
gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !
Yup, like 32krazy said...easy peasy..take your time and do it calmly. Position the steering wheel perfectly straight before you pop it off so that you can pop it back on straight as well. I think there is a "996 steering wheel removal" video on YouTube in case you want to have a look.

  #4
Old 01-19-2017 | 09:08 PM
DaveMo's Avatar
Registered User
Joined: Dec 2003
Posts: 523
From: Simi Valley, CA
Rep Power: 42
DaveMo is infamous around these partsDaveMo is infamous around these parts
Before you undo the big nut that holds on the steering wheel, mark the nut and the column with some nail polish. Then you will know exactly where to re-tighten it to.

  #5
Old 01-19-2017 | 09:37 PM
993GT's Avatar
Registered User
Joined: Jul 2013
Posts: 1,533
Rep Power: 315
993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !
I have a complete steering column with wheel on it kicking around if you need any pics

  #6
Old 01-19-2017 | 10:14 PM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
he is just changing the airbag

  #7
Old 01-19-2017 | 10:17 PM
993GT's Avatar
Registered User
Joined: Jul 2013
Posts: 1,533
Rep Power: 315
993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !993GT Is a GOD !
I know Steve lol...just if he wanted anything further... 4x 9x6 chassis here atm
FWIW, you don't need to disconnect the battery or airbag CU to do the swap...at your own risk of course...

  #8
Old 01-20-2017 | 02:41 PM
VGLNTE1's Avatar
Thread Starter
|
Registered User
Joined: Dec 2011
Posts: 1,512
From: Illinois
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
thank you very much guys...meant to say im changing the entire wheel out to a D shaped wheel.

  #9
Old 01-20-2017 | 02:54 PM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
watch the clockspring from unraveling if your removing the wheel

  #10
Old 01-20-2017 | 03:06 PM
gophaster's Avatar
Registered User
Joined: Jan 2012
Posts: 710
From: South FLA
Rep Power: 206
gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !gophaster Is a GOD !
Yeah, if im not mistaken the video i was referring to on YouTube the person was actually going a bit further than just removing the wheel. I think he was fixing something with the indicators and he messed with the clockspring. I didn't even breathe on the clockspring. Last thing I wanted was to have a disaster on my hands from an easy steering wheel swap!

Originally Posted by 32krazy!
watch the clockspring from unraveling if your removing the wheel

  #11
Old 01-20-2017 | 04:27 PM
VGLNTE1's Avatar
Thread Starter
|
Registered User
Joined: Dec 2011
Posts: 1,512
From: Illinois
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
Originally Posted by 32krazy!
watch the clockspring from unraveling if your removing the wheel
where is this spring and how do you swap wheels without it coming loose? And if it does, what happens?

  #12
Old 01-21-2017 | 08:42 AM
geetee's Avatar
Registered User
Joined: Apr 2006
Posts: 1,346
From: 19454
Rep Power: 88
geetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant futuregeetee has a brilliant future
Originally Posted by VGLNTE1
where is this spring and how do you swap wheels without it coming loose? And if it does, what happens?
loosen the center nut but don't remove it. then start pulling towards you. After the wheel is loose from the shaft, then fully remove the center nut and slowly remove the wheel.
Sometimes the back portion of the steering wheel gets stuck with the clock spring and the whole thing will come out. I had it happen and it took me an hour to figure out how the clock spring went back in

  #13
Old 01-21-2017 | 04:13 PM
VGLNTE1's Avatar
Thread Starter
|
Registered User
Joined: Dec 2011
Posts: 1,512
From: Illinois
Rep Power: 130
VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !VGLNTE1 Is a GOD !
Originally Posted by geetee
loosen the center nut but don't remove it. then start pulling towards you. After the wheel is loose from the shaft, then fully remove the center nut and slowly remove the wheel.
Sometimes the back portion of the steering wheel gets stuck with the clock spring and the whole thing will come out. I had it happen and it took me an hour to figure out how the clock spring went back in
so if I'm changing wheels, wouldn't I need to swap the spring?

  #14
Old 01-21-2017 | 04:53 PM
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by VGLNTE1
so if I'm changing wheels, wouldn't I need to swap the spring?
no. the spring operates the airbag and horn electrical connection. its wound behind the wheel. about 1 minute in is the clockspring
https://www.youtube.com/watch?v=hux78ZoPcAI
