Tail Light Help

Thread Tools

Search this Thread

Rate Thread

  #1
Old 10-06-2012 | 06:18 PM
RobboT's Avatar
Thread Starter
|
Registered User
Joined: Sep 2012
Posts: 8
From: Boston
Rep Power: 0
RobboT is infamous around these parts
Tail Light Help

I'm hoping someone here can help me troubleshoot this.
This is my first Porsche so please forgive my ignorance.
Attached photo of my tail light. I labeled the 5 different lights in there.
Light #2 is not working (actually neither one of them is working on either side) and I can't figure out why because embarrassingly, I don't know what light it is and what switch turns it on.

The bulb work, tested it. I thought maybe it was a rear fog light? But the front fogs work fine. Checked the fuses for everything labeled "light" on the fuse panel and all are good.

Any help is greatly appreciated!

PS - I was half way through replacing the back up lights with LEDs, thats why one is bright white the other yellowish.

Attached Images
  #2
Old 10-06-2012 | 10:16 PM
MkC2S's Avatar
Registered User
Joined: Mar 2010
Posts: 1,849
From: Big D, Tx
Rep Power: 99
MkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud of

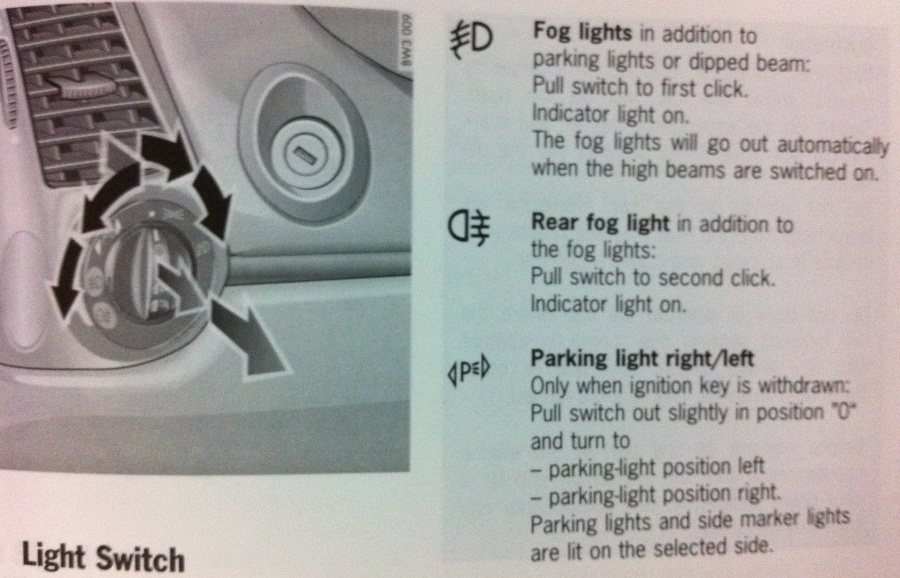

that is your rear fog light & only one side turns on....that's pretty stupid if you ask me

Attached Images

Last edited by MkC2S; 10-06-2012 at 10:26 PM.
  #3
Old 10-06-2012 | 10:25 PM
Pors-Vette's Avatar
Registered User
Joined: Feb 2012
Posts: 322
From: California
Rep Power: 27
Pors-Vette is a jewel in the roughPors-Vette is a jewel in the roughPors-Vette is a jewel in the rough
After you pull the light switch out for your fogs, pull out one more time and your rear fog light will come on. Like MkC2 said, it's only on your left side. There is a socket for a bulb on the right side taillight assembly if you want to take the time to re-wire.

  #4
Old 10-06-2012 | 11:14 PM
JSavinoJr's Avatar
Registered User
Joined: May 2011
Posts: 486
From: New Jersey/NYC
Rep Power: 35
JSavinoJr has a spectacular aura aboutJSavinoJr has a spectacular aura aboutJSavinoJr has a spectacular aura about
Euro fog light. Only one works. You will notice most german cars are like this.

  #5
Old 10-07-2012 | 12:25 PM
RobboT's Avatar
Thread Starter
|
Registered User
Joined: Sep 2012
Posts: 8
From: Boston
Rep Power: 0
RobboT is infamous around these parts
Thanks everyone! It does seem kind of silly that only the drivers side lights up.
