Mustang Dyno Run
#1
02-18-2011 | 07:25 PM
Thread Starter
|
Registered User
Joined: Feb 2010
Posts: 525
From: Texas
Rep Power: 60
Mustang Dyno Run

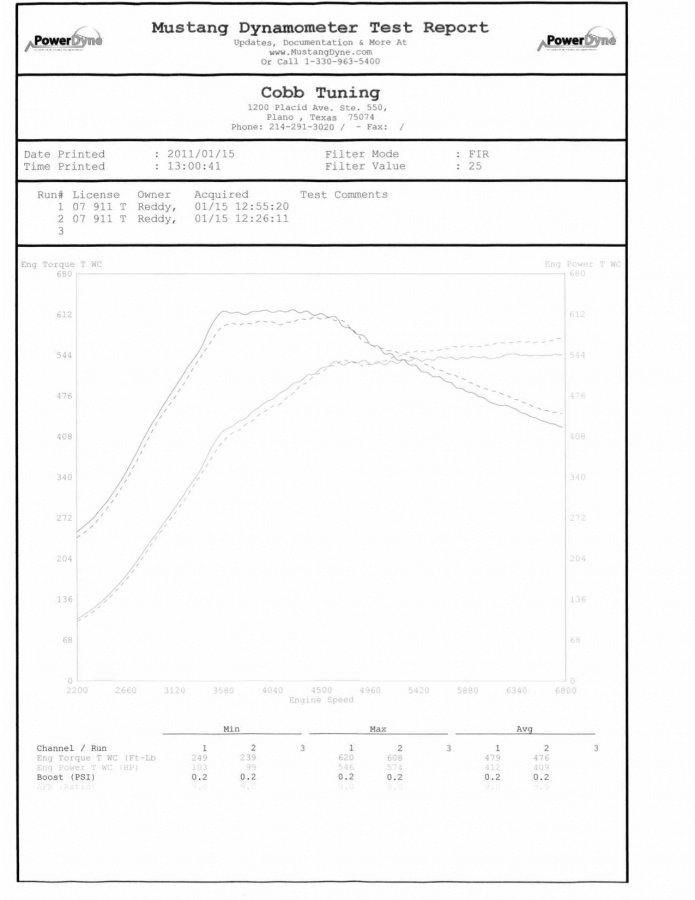

Dynoed my car on a Mustang AWD Dyno on a cold day in January.
I am/was impressed with the results.
574WHP = 700CHP(assuming 18% driveline lose)
620WTQ = 750CTQ(assuming 18% driveline lose)
Car running on E85/Protomotive Tune and driven daily this way
Note:
Dyno shop had no fans to blow air onto the intercoolers, saw an IAT of 70*C
in the logs made of the runs.
I am/was impressed with the results.
574WHP = 700CHP(assuming 18% driveline lose)
620WTQ = 750CTQ(assuming 18% driveline lose)
Car running on E85/Protomotive Tune and driven daily this way
Note:
Dyno shop had no fans to blow air onto the intercoolers, saw an IAT of 70*C
in the logs made of the runs.
Last edited by venkatreddytx; 02-18-2011 at 07:29 PM.
#3
02-18-2011 | 07:32 PM
Thread Starter
|
Registered User
Joined: Feb 2010
Posts: 525
From: Texas
Rep Power: 60
What surprised me was not seeing the drop in power past 6500 rpm that I have
seen on most other modded VTG turbo dyno graphs.
Last edited by venkatreddytx; 02-19-2011 at 08:27 AM.
#5
02-18-2011 | 09:34 PM
Thread Starter
|
Registered User
Joined: Feb 2010
Posts: 525
From: Texas
Rep Power: 60
Car feels awesome and boost start building by 2000 rpm, afraid any upgrade my introduce lag.
Need to upgrade the fueling system if I run bigger turbos on E85, so am leaving the car as is.
Need to upgrade the fueling system if I run bigger turbos on E85, so am leaving the car as is.
#7
02-19-2011 | 06:19 AM
Registered User
Joined: Aug 2009
Posts: 1,745
From: KUWAIT
Rep Power: 169
great results .. could you please show us 100-200
i think your car in 6s ...
nice car bro ..
rep for you
i think your car in 6s ...
nice car bro ..
rep for you
Trending Topics
#8
02-19-2011 | 06:44 AM
Registered User
Joined: Jul 2003
Posts: 2,957
From: Texas
Rep Power: 455
So you might consider a kit like a Switzer P800 if you ever want to upgrade without introducing more lag. Like you said you would have to do a new fuel system to continue with E85 though...
#9
02-19-2011 | 08:47 AM
Thread Starter
|
Registered User
Joined: Feb 2010
Posts: 525
From: Texas
Rep Power: 60

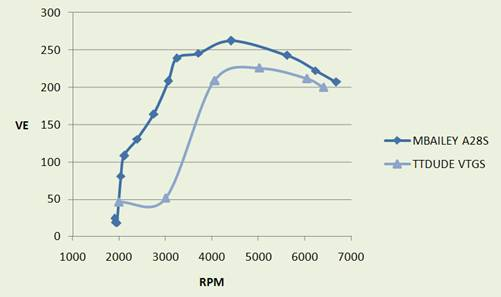

You can actually run a kit with tial A28s with less lag. Look at this volumetric efficiency graph from TTDude. He runs proto modded VTGs.
So you might consider a kit like a Switzer P800 if you ever want to upgrade without introducing more lag. Like you said you would have to do a new fuel system to continue with E85 though...
So you might consider a kit like a Switzer P800 if you ever want to upgrade without introducing more lag. Like you said you would have to do a new fuel system to continue with E85 though...
#10
02-19-2011 | 09:57 AM
Registered User
Joined: Jul 2003
Posts: 2,957
From: Texas
Rep Power: 455
I am pretty sure A3071s will have more lag than VTGs. The A28s with good supporting mods can match power of 3071s with much less lag.
#13
02-19-2011 | 03:26 PM
Thread Starter
|
Registered User
Joined: Feb 2010
Posts: 525
From: Texas
Rep Power: 60
Thanks Scott.
The torque hits hard peaks and holds from 3500 - 4500, makes the front end go light and the rear steps out when I get on it.
The torque hits hard peaks and holds from 3500 - 4500, makes the front end go light and the rear steps out when I get on it.
Last edited by venkatreddytx; 02-19-2011 at 06:33 PM.
