This is also a new product that we now carry - PhotoSync Heat Transitioning Film, which is made by Prestige Film Technologies. Simply put, this window film's (tint) heat rejecting capabilities transform when sun is more intense.

We were the beta testers for the manufacturer for a good 2.5 years now, so we are very familiar with its capabilities...So how does it perform and how it differs from regular tint?

We put it to test to compare it with Porsche factory installed thermal insulated glass. The factory installed option costs $1125 (for rear glasses only) to the Porsche owner.

Here is our test:

Outdoor temperature: 72 degrees
Time during test: 4pm

Product: Spectra PhotoSync45
Shade: 45% VLT (visible light transmission)
IR Rejection: 98.5% IR Rejection at peak performance
Total Solar Energy Rejection: 65%

VS:

Porsche Thermal IR Glass
Shade: 30% VLT (visible light transmission)

**surface temperature measurements taken on passenger seat exposed to window with PhotoSync45 vs. rear seat exposed to window with Porsche Thermal IR Glass

TEST 1
PhotoSync45 measured at 1 Minute 39 seconds 85.6 degrees

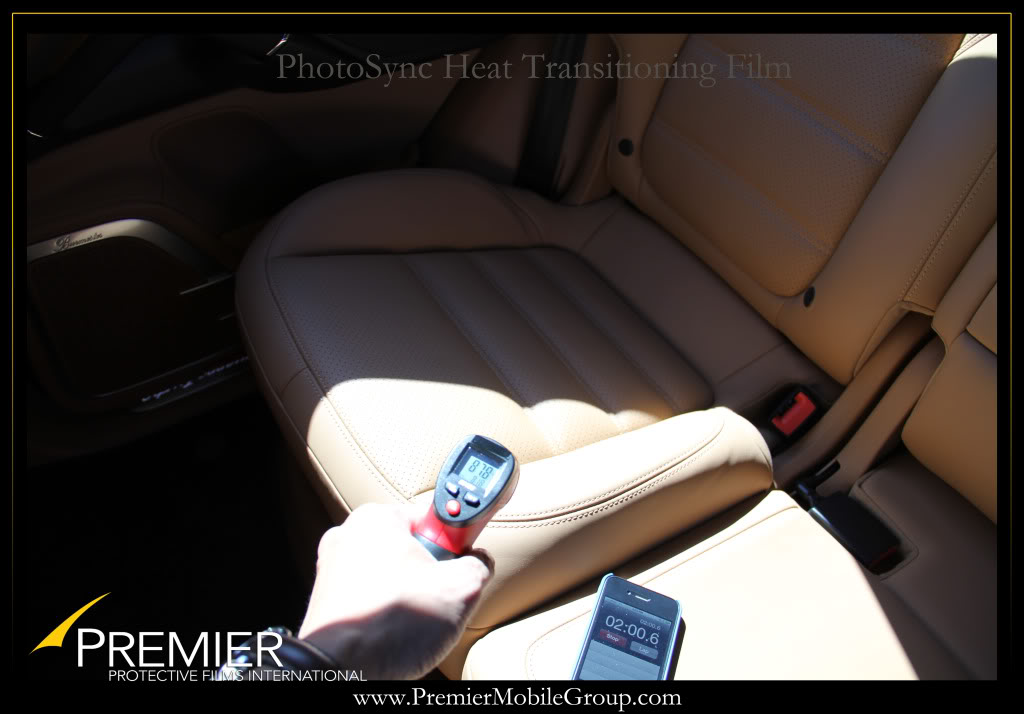

Thermal IR Glass measured at the 2 Minute mark 87.8 degrees

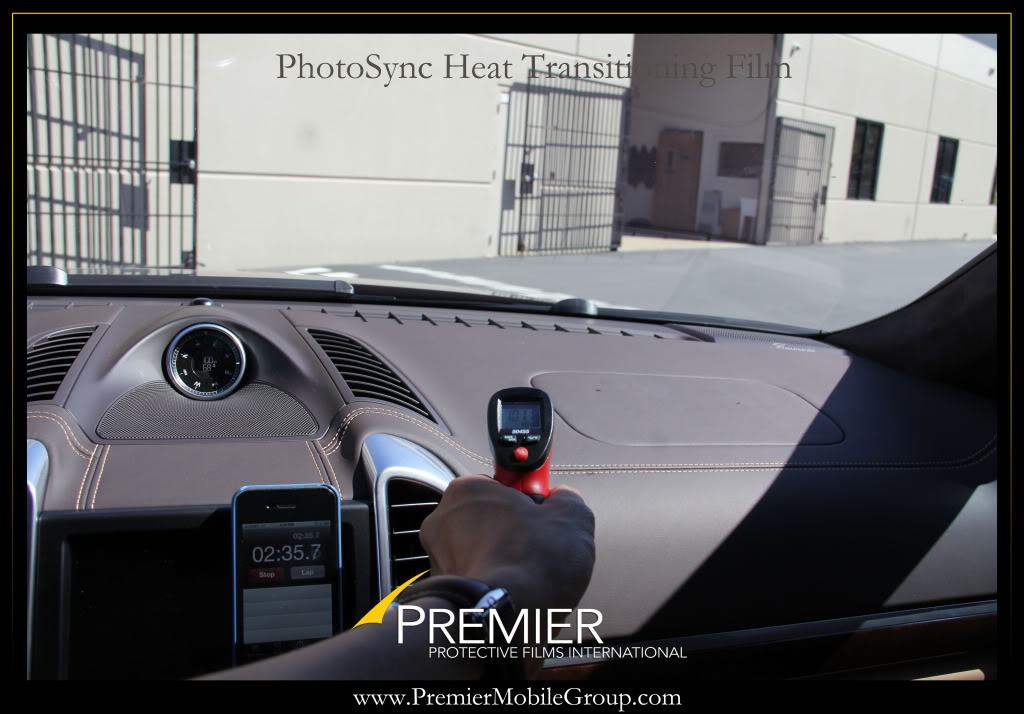

Windshield exposed front dash measured at 2 Minute 35 seconds at 101.1 degrees

TEST 2
PhotoSync45 measured at 18 Minutes 52 seconds 86.3 degrees

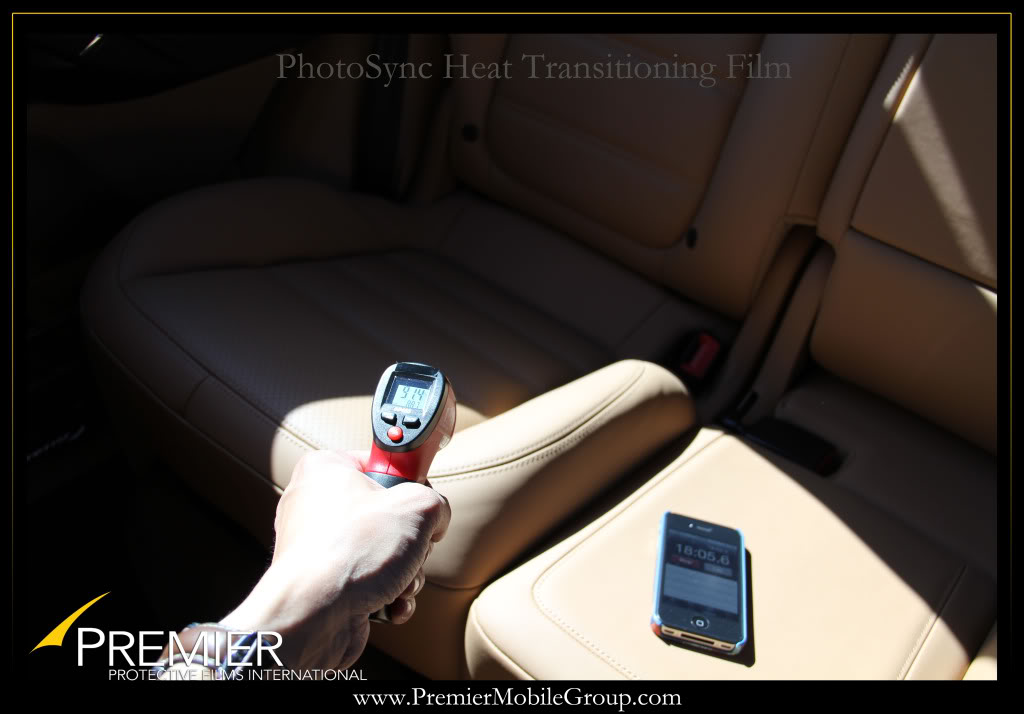

Thermal IR Glass measured at 18 Minutes 5 seconds 91.4 degrees

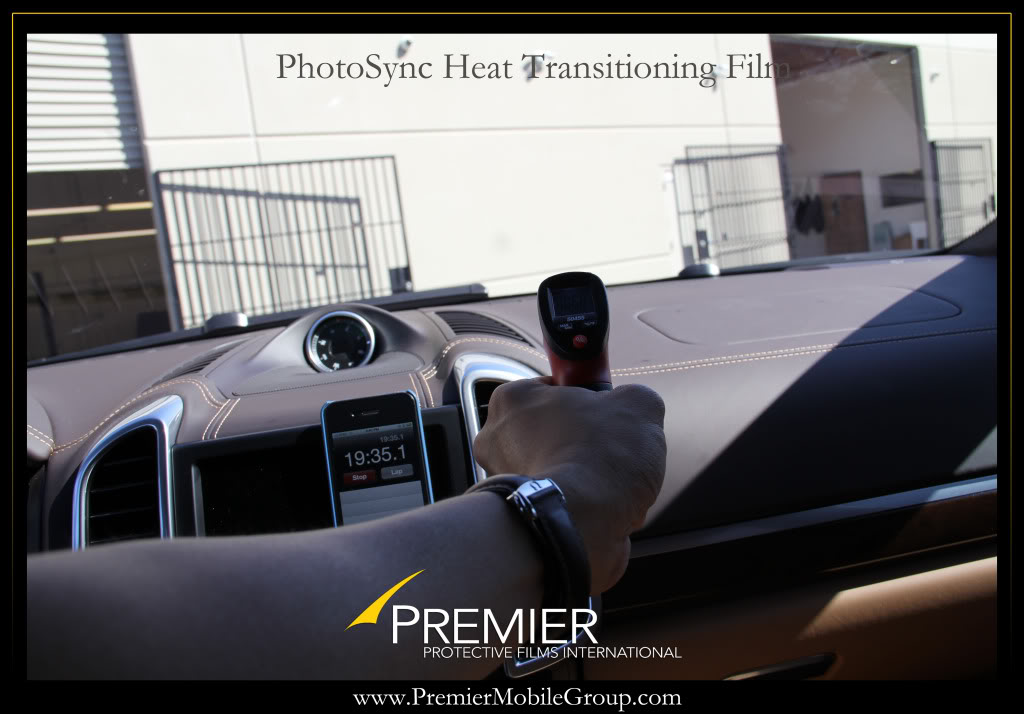

Windshield exposed front dash measured at 19 Minute 35 seconds 106.8 degrees

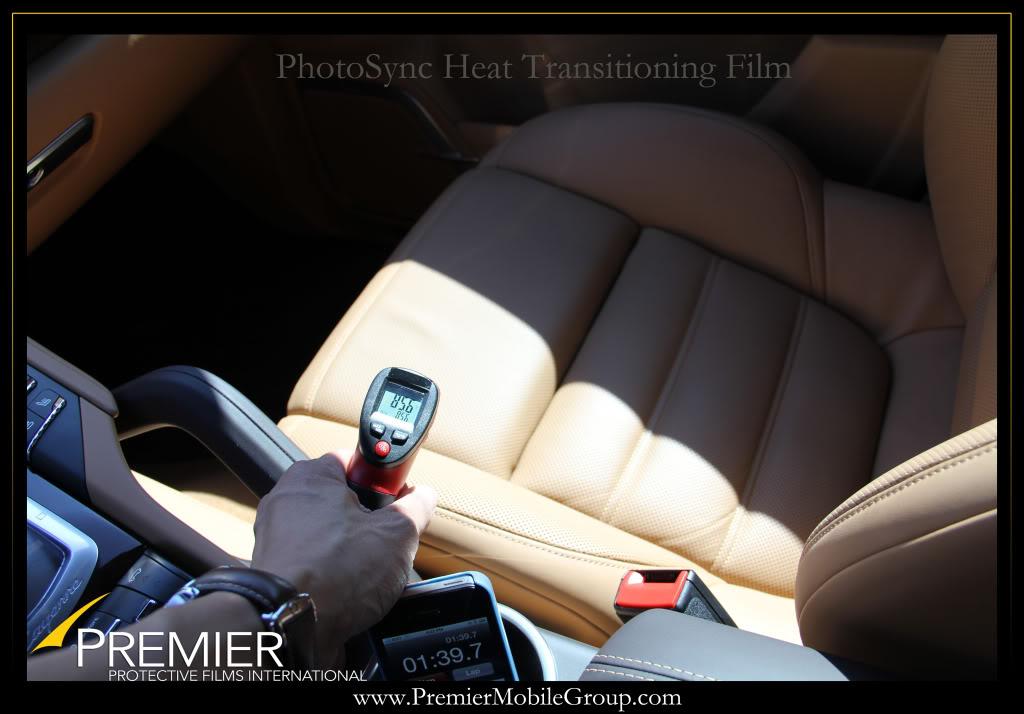

PhotoSync45 Exposed Seat


Porsche Thermal IR Glass Exposed Seat


Dash



TEST 2
PhotoSync45 measured at 18 Minutes 52 seconds 86.3 degrees
Thermal IR Glass measured at 18 Minutes 5 seconds 91.4 degrees
Windshield exposed front dash measured at 19 Minute 35 seconds 106.8 degrees

PhotoSync 45 after 18 Minutes 52 seconds - 86.3 degrees



Porsche Thermal IR Glass after 18 Minutes 5 seconds - 91.4 degrees


Dash



Is the Porsche factory installed thermal insulated glass a film or is the actual glass tinted?



It is laminated glass with an IR tint built into the laminate. This option is only for the rear glasses (behind front pgr and driver doors)



As we have all heard, the earth is warming up by approximately 5 degrees since records were kept pre-1900. The hotter regions will get hotter, which means having proper IR and UV protection is important to protecting the interior of vehicles. What we love about PhotoSync is that the performance of it improves as it gets hotter, which at some point reaches as high as 98.5% of infrared rejection. That is quite significant considering that regular tint are typically in the 30% -40% infrared range. With some of the higher end products such as metallics and ceramics, they would only run up as high 75%-85%.



Good question!



99.5% UV (A&B) - same

However, IR rejection is where it differs. The Diamond Cut IR produces 94% of infrared rejection whereas when PhotoSync's Solar Adaptive Coating activates, IR rejection increases to 98.5%. Total Solar Energy Rejection is also 10%-15% higher depending on shade chosen

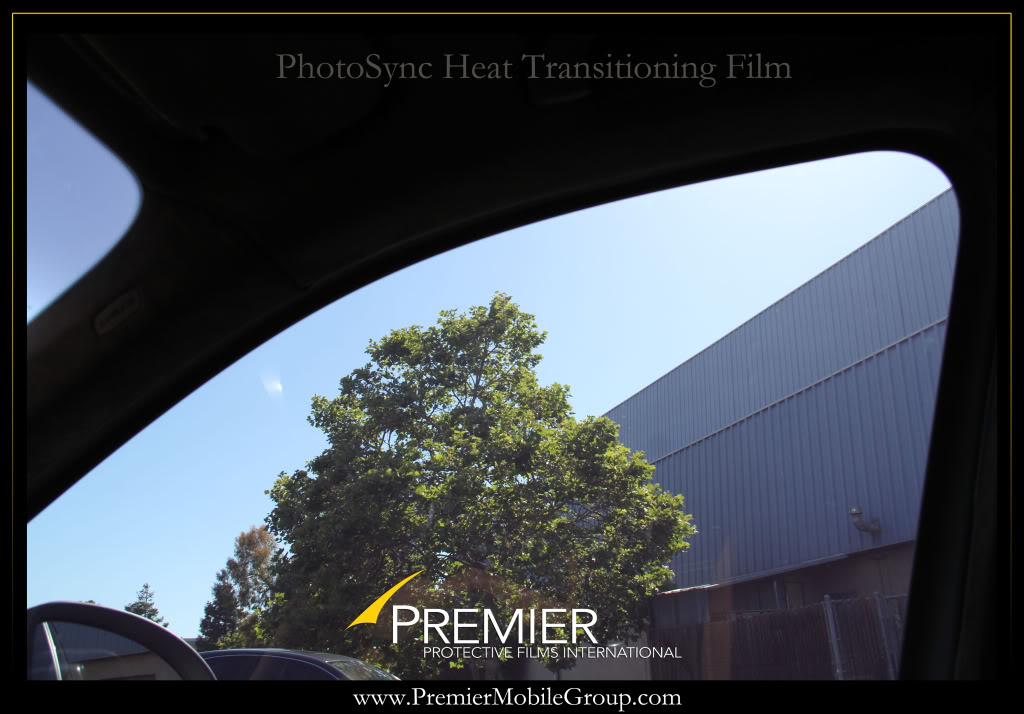

Here is how this looks from the interior. Again, this is PhotoSync45 on the front two windows only. This product not only performs exceptionally well, but also has a high clarity adhesive system



Looking forward to assisting you!



The performance difference between PhotoSync45 (45% shade) vs. Porsche Thermal IR Glass in the rear windows (approximately 30% shade) is quite significant. Below is a simplified version of our test results:

At around the 2 minute mark - PhotoSync45 windows show a 2.2 degree improvement
At 2.35 minute marker, the windshield (no film) dash area registers a surface temperature of 101 degrees

The seats after over 18 minutes of exposure shows that PhotoSync45 registers an improvement of 5.1 degrees
The windshield dash at that time shows a surface temperature of 106 degrees.

Result: Although the exterior temperature does not provide a very compelling difference (it was only 72 degrees), there is an apparent variance between Porsche's IR Thermal Glass and PhotoSync45. Keep in mind the Porsche glass is darker, so less light (approximately 15% less) is entering the cabin in the rear, yet PhotoSync still outperforms it.



Don't forget. the factory installed option by Porsche - "Thermal IR Glass" for the Panamera and Cayenne's cost $1125 for just the rear windows!

Yet, it does not perform as well as PhotoSync on a relatively cool day at 72 degrees...now imagine if it was hotter. The degree spread would be more significant!





How is it on UV rays? It would be nice to protect the skin.



99.5% blockage of UVA and UVB.

98.5% blockage of IR (infrared)



PhotoSync does come in the following shades (represented in "VLT" - visible light transmision)

http://www.prestige-films.com/auto_photosync.shtml

75%
65%
45%

***Keep in mind, according to the manufacturer, their "Solar Adaptive Coating" is what's truly unique about this nano tint. The performance of this tint actually improves as it gets hotter. Another effect of their Solar Adaptive Coating is that the film actually darkens when the sun gets more intense....by up to 11%! We had confirmed this effect as well.

We have used the various products on the market before such as dyed, metallic, ceramic, & hybrids and so far, this is one product that is technologically advanced to match the technology of luxury cars today.
