Comparing Tunes With Data Logs!
#1
Comparing Tunes With Data Logs!
Hey Guys!
Just got another file from Todd @ Proto, I uploaded the file last night and managed to data log the car on sport mode from gear 2,3,4.
I will upload both the data logs of my first tune and my revised (New) tune. The concern I had with the first tune is that I felt the car would die abit after 200km/h.
Sorry but the only file format I could upload was in ZIP format, If you want me to email you the Excel Files I will be glad to do so, just PM me ur email.
Notes:
Just got another file from Todd @ Proto, I uploaded the file last night and managed to data log the car on sport mode from gear 2,3,4.
I will upload both the data logs of my first tune and my revised (New) tune. The concern I had with the first tune is that I felt the car would die abit after 200km/h.
Sorry but the only file format I could upload was in ZIP format, If you want me to email you the Excel Files I will be glad to do so, just PM me ur email.
Notes:
- The temperature of the first tune data log was around 23 Degrees Celsius Vs. 31 Degrees for the revised tune.
- On the first tune car did 0-100km/h in 3.3s & 100-200km/h in 7.0s. On the revised tune car did 0-100km.h in 3.2s & 100-200km/h in 7.3s.
- I have sent these to Todd and awaiting his reply, Just wanted to see what you guys think.
#2
The DME is still correcting the "fun" above ~220kph on the new tune. Timing is gone, AFRs go to 10.0, and boost is reduced to cool things down and quell potential knock. There are signs of life again above 250kph but thats because you're at 1.2 bar vs 1.5 bar. Too much boost for whatever octane you're running, particularly through the 5000-6000 rpm range IMO. I'm sure Todd will have some input though. You get away with it until that 3-4 gear change. Octane/boost aside, high ambient temps can be brutal on these cars, even with good intercoolers theres only so much you can do without getting into chemical intercooling (methanol).
It looks like he did pull some boost out at the higher rpms on the new tune, but only above ~6000rpm. It's getting there.
It looks like he did pull some boost out at the higher rpms on the new tune, but only above ~6000rpm. It's getting there.
Last edited by earl3; 04-21-2013 at 01:00 PM.
#3
You need intercoolers to keep get your IATs down. As earl3 said, it looks like the the ECU is pulling boost to compensate. In fact, look at your boost when the IAT is logged >60.
Last edited by bbywu; 04-21-2013 at 01:12 PM.
#4
He's got the .2 coolers which is why he's "only" 33C above ambient at 270kph Its the 30+C ambient temps combined with 1.5 bar+ boost that are just brutal on these cars. I'm not sure he's going to see much better IATs without a meth nozzle helping things out. CTR cores would probably keep it within 25C of ambient on a hot day but big $$$.
#5
Thanks Earl
The DME is still correcting the "fun" above ~220kph on the new tune. Timing is gone, AFRs go to 10.0, and boost is reduced to cool things down and quell potential knock. There are signs of life again above 250kph but thats because you're at 1.2 bar vs 1.5 bar. Too much boost for whatever octane you're running, particularly through the 5000-6000 rpm range IMO. I'm sure Todd will have some input though. You get away with it until that 3-4 gear change. Octane/boost aside, high ambient temps can be brutal on these cars, even with good intercoolers theres only so much you can do without getting into chemical intercooling (methanol).
It looks like he did pull some boost out at the higher rpms on the new tune, but only above ~6000rpm. It's getting there.
It looks like he did pull some boost out at the higher rpms on the new tune, but only above ~6000rpm. It's getting there.
Just a quick question for you, Do you think if we reduce boost <1.5 Bar, will it reduce or increase performance? Will it significantly reduce IAT's? What would you recommend in my case? (I would prefer to avoid chemical cooling).
#6
Thanks Guys!
Other than more advanced intercoolers or chemical cooling, what would you recommend I do in my case (Reduce Boost.. etc?) ?
Thanks for your feedback Meslinger, I do have .2 intercoolers installed on the car. . Any recommendations from your end?
#7
Here is mine log
http://www.wirx.ee/911/tuned.xls
4th gear 100-200km/h
Temp is Celsius
What do you think?
Car has straight pipes, BMC filter and tune.
100-200km/h in 4th time is 8s
http://www.wirx.ee/911/tuned.xls
4th gear 100-200km/h
Temp is Celsius
What do you think?
Car has straight pipes, BMC filter and tune.
100-200km/h in 4th time is 8s
Trending Topics
#8
Give the high ambient temps, might be better off backing out some boost?
Your knock sensors and ecu are basically doing their job when they see the high IATs.
Your knock sensors and ecu are basically doing their job when they see the high IATs.
Last edited by TT Surgeon; 04-25-2013 at 11:53 AM.
#9
Here is mine log
http://www.wirx.ee/911/tuned.xls
4th gear 100-200km/h
Temp is Celsius
What do you think?
Car has straight pipes, BMC filter and tune.
100-200km/h in 4th time is 8s
http://www.wirx.ee/911/tuned.xls
4th gear 100-200km/h
Temp is Celsius
What do you think?
Car has straight pipes, BMC filter and tune.
100-200km/h in 4th time is 8s
#10
http://www.wirx.ee/911/tuned2.xls
One more try, outside temp was about 8c celcius less now, 100-200 time 7.6s (perfomance box), 4th gear
There is no cats, only straight pipes
One more try, outside temp was about 8c celcius less now, 100-200 time 7.6s (perfomance box), 4th gear
There is no cats, only straight pipes
Last edited by wirx; 04-25-2013 at 05:01 PM.
#12
Hi Tareq, I'm not entirely sure but my hunch, based on sifting through various logs, is that you will sacrifice 0-200kph performance a touch for the sake of increasing 200-300+kph performance, particularly in the hot environment you're in. Unless tuners have the ability to request torque/boost by gear or speed which I don't think they can with the factory DME(?)
#13
He's got the .2 coolers which is why he's "only" 33C above ambient at 270kph Its the 30+C ambient temps combined with 1.5 bar+ boost that are just brutal on these cars. I'm not sure he's going to see much better IATs without a meth nozzle helping things out. CTR cores would probably keep it within 25C of ambient on a hot day but big $$$.
http://www.fvd.us/us/en/Porsche-0/997_Turbo-126-31/-/-/item/item_details/VID_83925872-VCD_60584931-gid_154-sort_4-display_50-item_FVD110350AKG1/ENGINE_-_Tuning_-_Air_Intake_-_Intercooler_FVD110350AKG1_997_Turbo_GT2_`Aerospac e_Core`_Intercooler_Kit.html
#14
I think many people in your neighborhood have gone with methanol.
#15

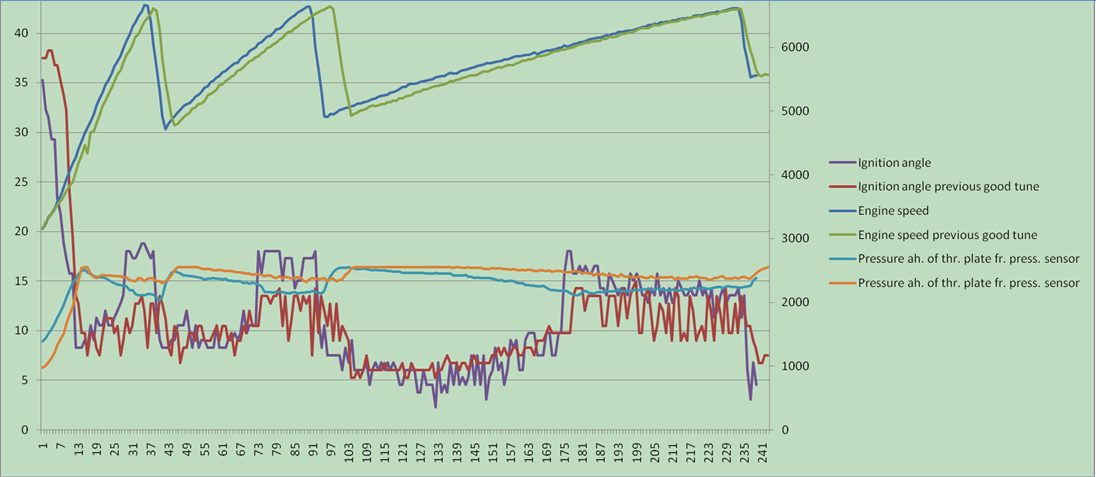

Updated Graph Comparison
Hey Guys,
Todd managed to send me a graph comparing my previous "Good Tune" with my new revised tune.
It would be great to get some feedback from you guys so I can choose which tune I should settle on for the meantime until Todd sends me a revised one.
Thanks!
Todd managed to send me a graph comparing my previous "Good Tune" with my new revised tune.
It would be great to get some feedback from you guys so I can choose which tune I should settle on for the meantime until Todd sends me a revised one.
Thanks!
