997 Turbo Dyno Day at Moore Automotive in Fairfax
#1
997 Turbo Dyno Day at Moore Automotive in Fairfax

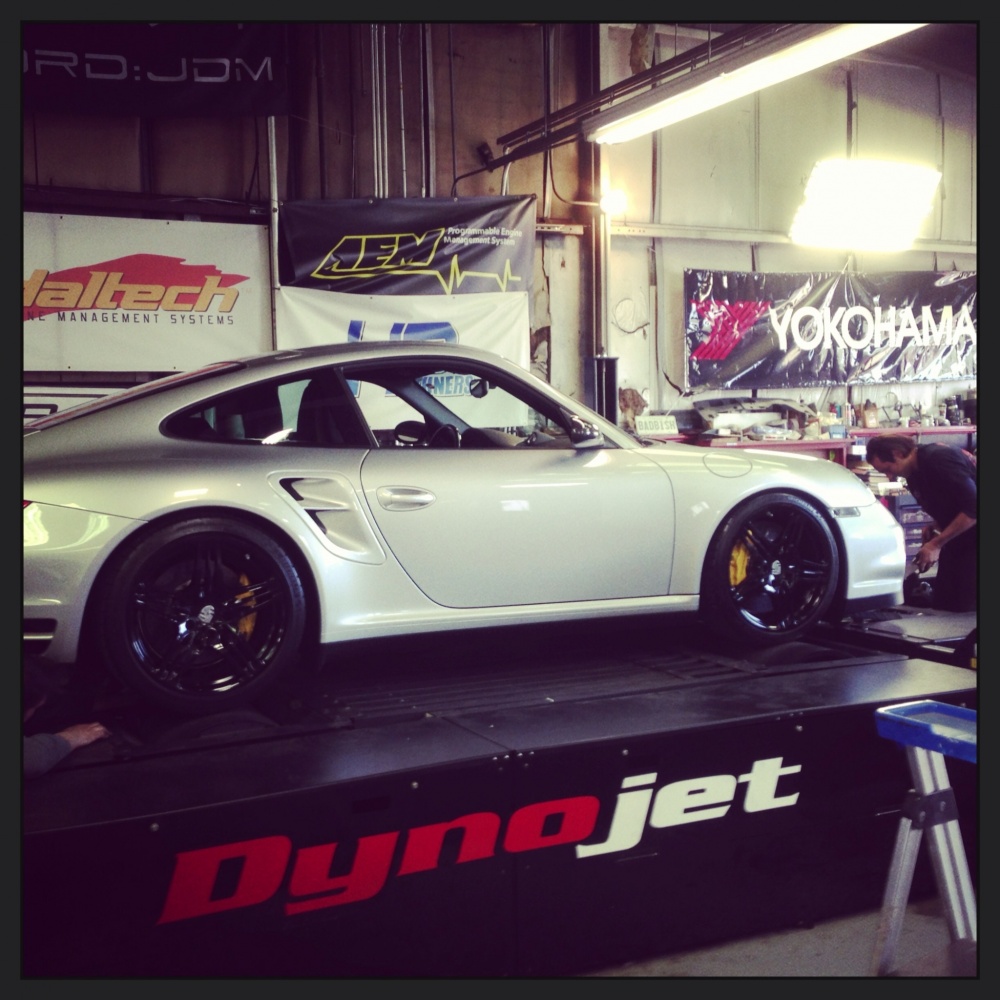

Had the Turbo Dyno'd today. Below are my specs and read outs. Car sounded insane, numbers looked good but need to tweak the tune a bit. Should be able to get another 40hp/tq more I think. Let me know what you guys think. Read out looks a little weird to me....not sure if the Dyno sensors were set correctly.
2008 Turbo with 17k miles
FVD race exhaust (catless)
BMC Filter
Werks CF plenum and GT3 TB
Headers
FVD Tune
2008 Turbo with 17k miles
FVD race exhaust (catless)
BMC Filter
Werks CF plenum and GT3 TB
Headers
FVD Tune
#4
Something weird with that dyno, sensors aren't reading right.
A stock 997tt will put down about 380 at the wheels. You should be around 460-480 at the wheels, many variables. Dyno technician, improper placement, not using fans, etc.
If it was a very hot, humid day, engine hot, your numbers would look like that bc heat soak, knock sensors, ecu pulling timing etc.
I'd re dyno at another shop under ideal temp conditions.
A stock 997tt will put down about 380 at the wheels. You should be around 460-480 at the wheels, many variables. Dyno technician, improper placement, not using fans, etc.
If it was a very hot, humid day, engine hot, your numbers would look like that bc heat soak, knock sensors, ecu pulling timing etc.
I'd re dyno at another shop under ideal temp conditions.
#5
Something weird with that dyno, sensors aren't reading right.
A stock 997tt will put down about 380 at the wheels. You should be around 460-480 at the wheels, many variables. Dyno technician, improper placement, not using fans, etc.
If it was a very hot, humid day, engine hot, your numbers would look like that bc heat soak, knock sensors, ecu pulling timing etc.
I'd re dyno at another shop under ideal temp conditions.
A stock 997tt will put down about 380 at the wheels. You should be around 460-480 at the wheels, many variables. Dyno technician, improper placement, not using fans, etc.
If it was a very hot, humid day, engine hot, your numbers would look like that bc heat soak, knock sensors, ecu pulling timing etc.
I'd re dyno at another shop under ideal temp conditions.
#6
#7
Absolutely, bring it by and we can get you running the way you want to be. Here's an example of another 997 Turbo we just did.
Porsche 997 Turbo Behe Performance Custom ECU Tuning - YouTube
Porsche 997 Turbo Behe Performance Custom ECU Tuning - YouTube
Trending Topics
#8
Sub-Zero,
We need some more information from you on the dyno pulls. Can you provide us with a better picture so we can see the AFR and intake temp. line. Or if you can have the dyno email the original win pep file that would be great. The programmers need to see that info, they will also check the type of dyno and will re-check the file that you have. But if you felt power in the seat of you pants, like you originally stated nothing should have changed. So once we have more data we can see what is actually happening and make adjustments if needed.
Many thanks,
Rhonda
We need some more information from you on the dyno pulls. Can you provide us with a better picture so we can see the AFR and intake temp. line. Or if you can have the dyno email the original win pep file that would be great. The programmers need to see that info, they will also check the type of dyno and will re-check the file that you have. But if you felt power in the seat of you pants, like you originally stated nothing should have changed. So once we have more data we can see what is actually happening and make adjustments if needed.
Many thanks,
Rhonda
__________________
FVD Brombacher - USA
Contact me directly to get the latest FVD forum member discount!
Rhonda Roxburgh
+1-954-571-2050 x 1
rhonda.roxburgh@fvd.net
Visit our online shop for an extensive selection of tuning and original parts www.fvd.net
FVD Brombacher - USA
Contact me directly to get the latest FVD forum member discount!
Rhonda Roxburgh
+1-954-571-2050 x 1
rhonda.roxburgh@fvd.net
Visit our online shop for an extensive selection of tuning and original parts www.fvd.net
#9
Not sure on the forum rules with posting prices for vendors, lol, they're all a bit different on that. Anyway, sent you a PM.
#10
God of tuning, I find that questionable...I'm sure he's good, but not the god of tuning.
Last edited by k-ore; 05-01-2013 at 01:30 AM.
#11
It almost looks like traction control was kicking in. My mechanic said that a Turbo needs to be Dyno'd on a linked system because if the front drum is turning at a different rate than the rear, this is exactly the type of read out that one would expect. The other thing that was weird to me is that they pointed the fans at the intercoolers and not the intakes.
#12
If I get a chance later, I'll post a scan of a dyno from my blue car with the exact same fvd 555hp package, dyno'd 477 at the wheels on a dynodynamics. Your problem isn't the tune I don't think.
(correction....466)
(correction....466)
Last edited by TT Surgeon; 05-01-2013 at 06:50 PM.
#14

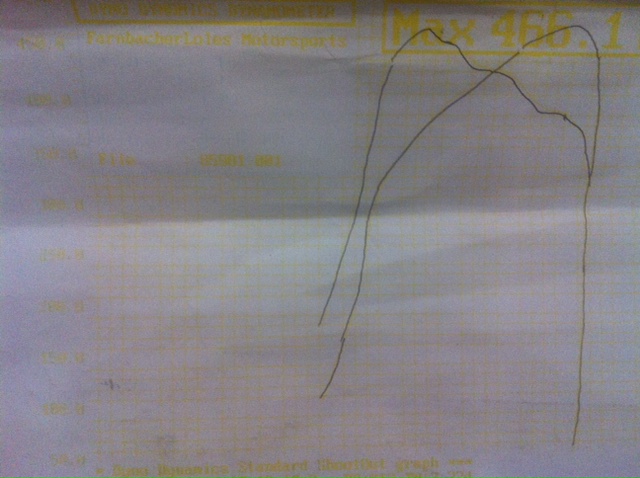

My graph from '09 with the same fvd tune as the op. This was done at farnbacher-loles on a dynodynamics dyno, just after the #87 cup car got off. (I think they know what they're doing...) Sorry for the yellow ink, I guess their printer ink was low. Peak wheel hp was 466, hot, humid day, corrects to about 560 crank.

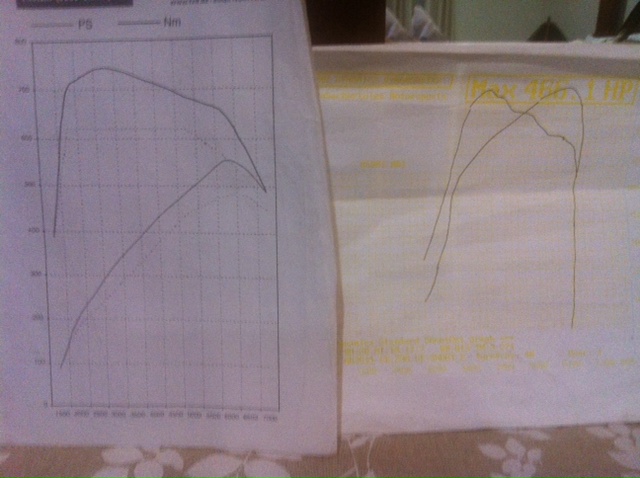

Note the comparison to the fvd graph, very similar.
Hope this helps the op, I don't think it's the tune as this is the exact same one with just a tubi exhaust, car stock otherwise.
Note the comparison to the fvd graph, very similar.
Hope this helps the op, I don't think it's the tune as this is the exact same one with just a tubi exhaust, car stock otherwise.
Last edited by TT Surgeon; 05-01-2013 at 06:46 PM.
