DIY 997 Muffler Removal and Install
#1
DIY 997 Muffler Removal and Install
Slapped a set of Tubi mufflers on Old Fraulein lat weekend. Here is a DIY I posted:
http://www.renntech.org/forums/index...howtopic=23931
Regards,
http://www.renntech.org/forums/index...howtopic=23931
Regards,
#3
Anyway, looks cool with the bumper off.
#4
Bumper cover removal, etc.
Guys,
It is very easy remove the bumper COVER and the heat shields and it takes maybe 15 min at the most. The screws are obvious -
IMHO, removal of the above allows easier access to the mufflers for removal and install.
For example, removal of the cover and shields gives you more room to work and much better lighting.
But as you state, it is not necessary.
Regards,
It is very easy remove the bumper COVER and the heat shields and it takes maybe 15 min at the most. The screws are obvious -
IMHO, removal of the above allows easier access to the mufflers for removal and install.
For example, removal of the cover and shields gives you more room to work and much better lighting.
But as you state, it is not necessary.
Regards,
#7
Great idea removing the bumper - does make everything easier to do, and gives a good chance for visual inspection and cleaning, should you want to. I've done it both ways, and actually prefer removing the bumper as you have really good access and lighting as indicated.
Nice work and thanks for posting.
Gundo
Nice work and thanks for posting.
Gundo
Trending Topics
#8
DIY Muffler Install for the 997
The following is a DIY Muffler Install for the 997. Very similar to the 996, but details might not be obvious or posted. Here I will key off what is known already about the 996, and will assume reasonable shade tree mechanic ability.
First, I refer to the fine threads:
Removal of the rear bumper cover and muffler:
http://www.renntech.org/forums/index...howtopic=16935
996 sport exhaust and bypass pipe install:
http://www.renntech.org/forums/index.php?s...p=6&#entry6
Here are some items to consider and watch out for:
1) Find a safe stable way to jack up the car with fail-safe in case of jack failure.
2) Remove rear wheels - it is alot easier to remove and install the mufflers with them off
3) Remove rear bumper cover - Remove rear tail lights to access a lone hidden torx screw and see 1 torx in wheel well, in addition to the other obvious screws under the engine lid and under the car - it is alot easier to remove and install the mufflers with the cover off
4) Remove heat shields to access the mufflers - see my pics below, the fasteners are very obvious
5) To remove and re-install new mufflers, follow the above threads......
6) I used WD-40 soak on muffler fasteners prior to removal and fused aluminum anti-seize compond to lube up muffler joints for install.
7) I found that a ratchet with a pivoting head and just the socket was more useful and easier than a ratchet a universal joint and extension and socket.
Here are some pictures which may help:
Torx behind tail light for bumper cover removal:
Torx in wheel well for bumper cover removal:

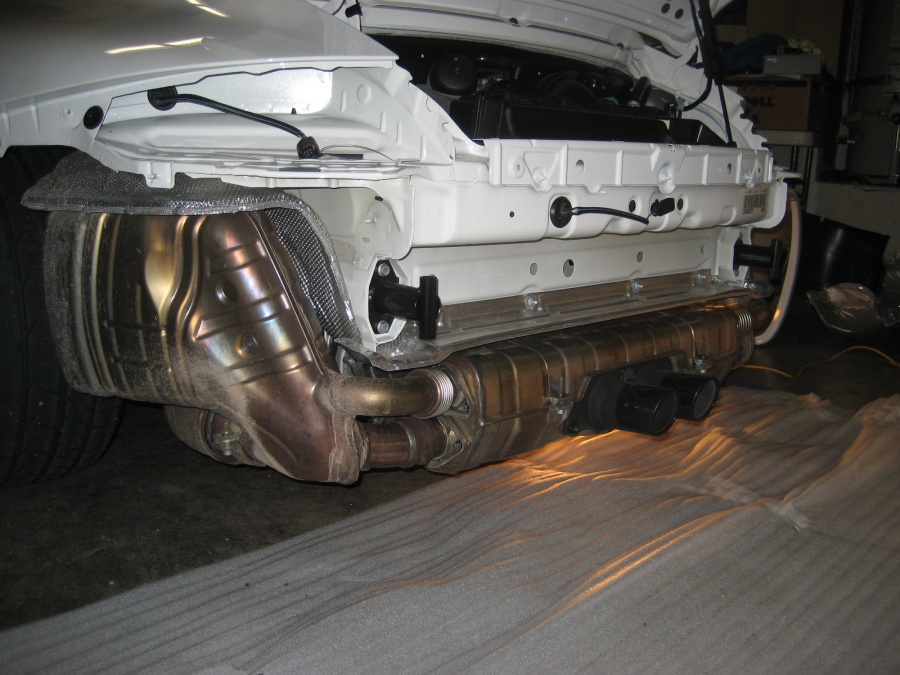

Exhaust shield that needs to be removed:

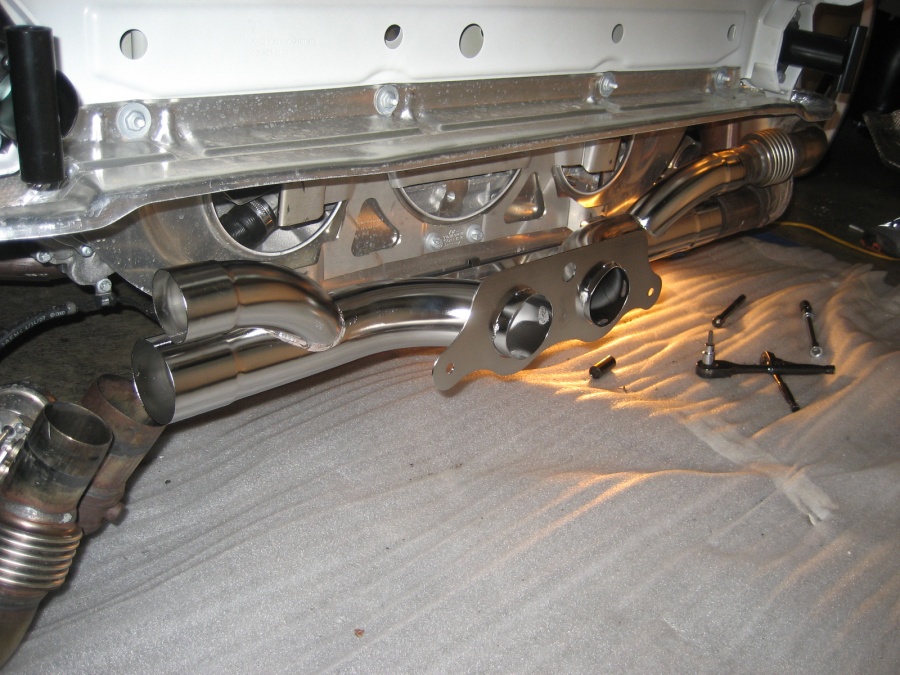

Exhaust shield after removal:
First, I refer to the fine threads:
Removal of the rear bumper cover and muffler:
http://www.renntech.org/forums/index...howtopic=16935
996 sport exhaust and bypass pipe install:
http://www.renntech.org/forums/index.php?s...p=6&#entry6
Here are some items to consider and watch out for:
1) Find a safe stable way to jack up the car with fail-safe in case of jack failure.
2) Remove rear wheels - it is alot easier to remove and install the mufflers with them off
3) Remove rear bumper cover - Remove rear tail lights to access a lone hidden torx screw and see 1 torx in wheel well, in addition to the other obvious screws under the engine lid and under the car - it is alot easier to remove and install the mufflers with the cover off
4) Remove heat shields to access the mufflers - see my pics below, the fasteners are very obvious
5) To remove and re-install new mufflers, follow the above threads......
6) I used WD-40 soak on muffler fasteners prior to removal and fused aluminum anti-seize compond to lube up muffler joints for install.
7) I found that a ratchet with a pivoting head and just the socket was more useful and easier than a ratchet a universal joint and extension and socket.
Here are some pictures which may help:
Torx behind tail light for bumper cover removal:
Torx in wheel well for bumper cover removal:
Exhaust shield that needs to be removed:
Exhaust shield after removal:
#11
How much more room do you need? Everything is right there with the wheels off.
#13
Here's a link to the alternative muffler install on Renntech. This is the one I've used several times now. It doesn't not allow nearly as much room to work as with the bumper off and some of the bolts can be a bear to get to but it does keep it a one-man job and the bumper stays in place. I wish I had a lift
From Renntech's site:
Here's a link to the bypass install I just did yesterday:
https://www.6speedonline.com/forums/...ss-review.html
#14
perhaps there is some special technique im not aware of?? perhaps the gt3 bypass install from sharkwerks is a bit different? anycase removal of the rear bumper was very fast like 15min. btw, i never took the wheels off or even jacked up the car.
Last edited by Daytonaviolet; 12-21-2008 at 04:57 PM.
