Installing rear emblem/badge
#1
Installing rear emblem/badge
Purchased the 993 "911" badge. Does any one have teh instructions on mounting locations to match up with factory. How many inches up from bottom of the decklid? Any suggestions; thanks.
#4
Good luck, I had to put one on my first 997, it is a little challenging due to the curvature of the deck lid. Use painters tape to mark the position and a level to make sure it was not skewed.
Just be patient and double check all your measurements.
Just be patient and double check all your measurements.
#5
This advice would help all the idiots driving around with crooked bumper stickers....
![Smilie](https://www.6speedonline.com/forums/images/smilies/smile.gif)
#6
Please help
![Smilie](https://www.6speedonline.com/forums/images/smilies/smile.gif)
Thanks,
Jim
#7
I sent this PM to you, and then saw this post, incase anyone else wants it.
This is from Renntech.org for a 996
1. Find the middle of the lid.

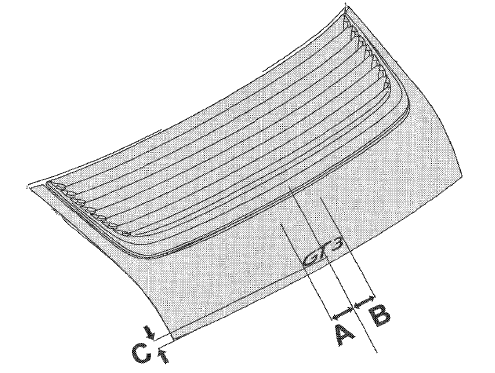

2. Position the GT3 logo with the dimensions A and B = 78.2 mm- and -C = 28 ± 1 mm on the rear lid and affix.
http://www.renntech.org/forums/index...adge+placement
This is from Renntech.org for a 996
1. Find the middle of the lid.
2. Position the GT3 logo with the dimensions A and B = 78.2 mm- and -C = 28 ± 1 mm on the rear lid and affix.
http://www.renntech.org/forums/index...adge+placement
