Aha! Differences between S and non-S mufflers
#1
Aha! Differences between S and non-S mufflers
Well, we all know that the part #'s on non-S mufflers are different from the part #'s on S mufflers.
And most of us know that the outlet pipes on an S are wider at the ends (where it meets the tips) than those on a non-S.
But, after a couple hours work, I discovered one more IMPORTANT difference as relates to fitment, not performance: the non-S muffler's inlet pipe (where it meets the cat) is about 2 inches shorter than it is on an S muffler. As a result, non-S muffler's inlet pipe won't reach the cat on an S car. The inverse is that S mufflers inlet pipe MAY be too long for the non-S car to join the cat properly.
Of course, these are simple fixes at a shop with the right sleeves, clamps, etc., but not very much fun to discover after spending over an hour jacking the car up and removing one of the mufflers, only to try (unsuccessfully) installing a non-S muffler on an S car.
Learn from my mistakes.
Consider it my gift to you.
CATTMAN
And most of us know that the outlet pipes on an S are wider at the ends (where it meets the tips) than those on a non-S.
But, after a couple hours work, I discovered one more IMPORTANT difference as relates to fitment, not performance: the non-S muffler's inlet pipe (where it meets the cat) is about 2 inches shorter than it is on an S muffler. As a result, non-S muffler's inlet pipe won't reach the cat on an S car. The inverse is that S mufflers inlet pipe MAY be too long for the non-S car to join the cat properly.
Of course, these are simple fixes at a shop with the right sleeves, clamps, etc., but not very much fun to discover after spending over an hour jacking the car up and removing one of the mufflers, only to try (unsuccessfully) installing a non-S muffler on an S car.
Learn from my mistakes.
Consider it my gift to you.
CATTMAN
#5
I have AWE cats, and they only sell one version for 997 NA engines, they don't have S or non-S versions, which means that's a constant. Headers are OEM.
I've had OEM S mufflers, Fabspeed mufflers, and AfterHours mufflers, and the non-S do not reach the cats- and if the cats are constant, that means the inlet on non-S are shorter than they are on an S.

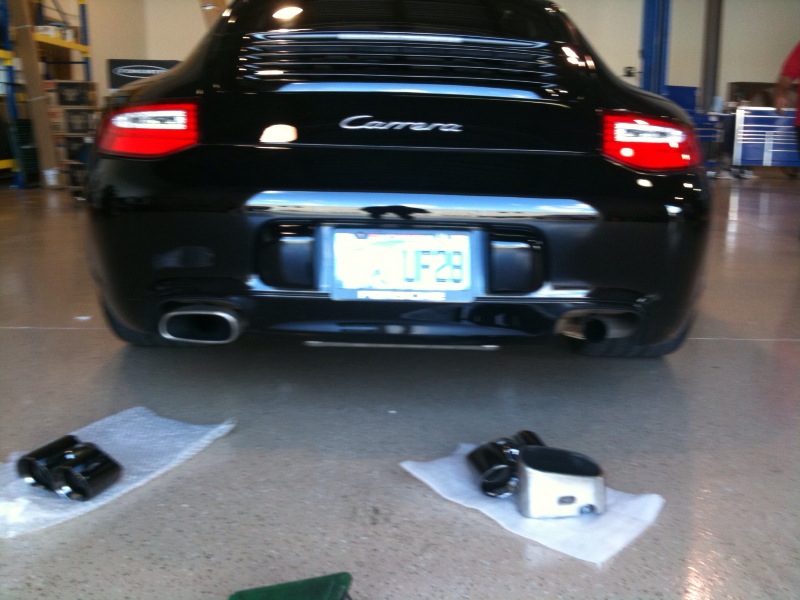

As for why: I am testing non-S Gundo hacked mufflers, and to do so I am removing my AfterHours mufflers and OEM S tips.
CATTMAN
I've had OEM S mufflers, Fabspeed mufflers, and AfterHours mufflers, and the non-S do not reach the cats- and if the cats are constant, that means the inlet on non-S are shorter than they are on an S.
As for why: I am testing non-S Gundo hacked mufflers, and to do so I am removing my AfterHours mufflers and OEM S tips.
CATTMAN
#6
Perhaps cut an inch or so off the end of the outlet pipe to the mufflers, unless you can just loosen the clamp and slide the tips back toward the bumper.
#7

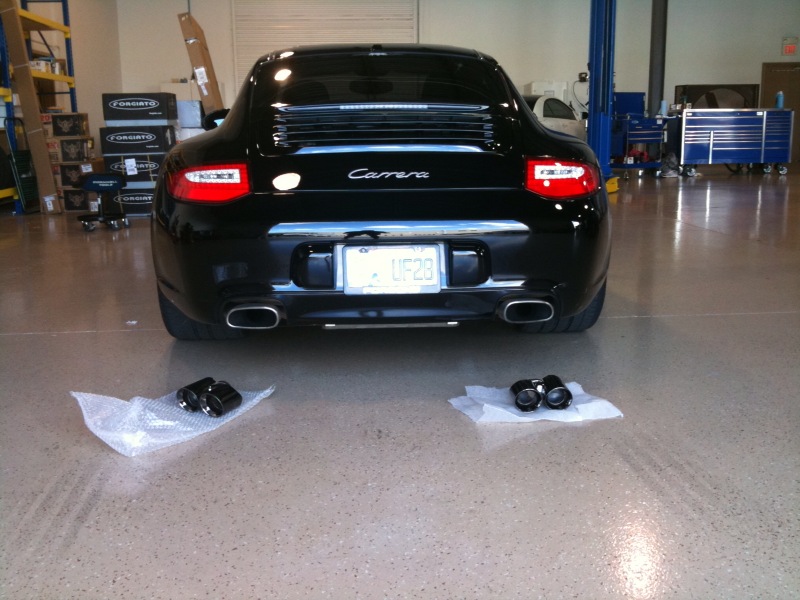

I think it is probably from the upward Ngle looking down thY they Appear to stick out. They look great and I'll post a poc from a lower angle.
Trending Topics
#8
That is funny, I got raked over the coals by another member a while back because he said that I didn't include any extensions for the mufflers I sold him. I guess now I can sleep a little better knowing that this is an issue with the length of mufflers!
#9
Hmmm. Curious.
When I installed my PSE mufflers - which were not ordered for a non-S (there is only one part number for the PSE kit) - the muffler pipe-to-cat connection distance was the exact same as the stock non-S mufflers. I mean completely identical fit.
Are you sure your non-S Gundo-hacked mufflers were not modified in other ways as well?
When I installed my PSE mufflers - which were not ordered for a non-S (there is only one part number for the PSE kit) - the muffler pipe-to-cat connection distance was the exact same as the stock non-S mufflers. I mean completely identical fit.
Are you sure your non-S Gundo-hacked mufflers were not modified in other ways as well?
#10
Ed,
u r full of $hit. U know u kept those extensions for your good friend Stacy. He used them as the oil return lines for his SC BTW love the new avatar.....people couldnt remember your name....ehhh
