WOW! ROTtec 997.1 DRL LED's
#31
12-09-2011 | 10:59 AM
Registered User
Joined: Aug 2011
Posts: 28
From: Winnipeg, Canada
Rep Power: 15

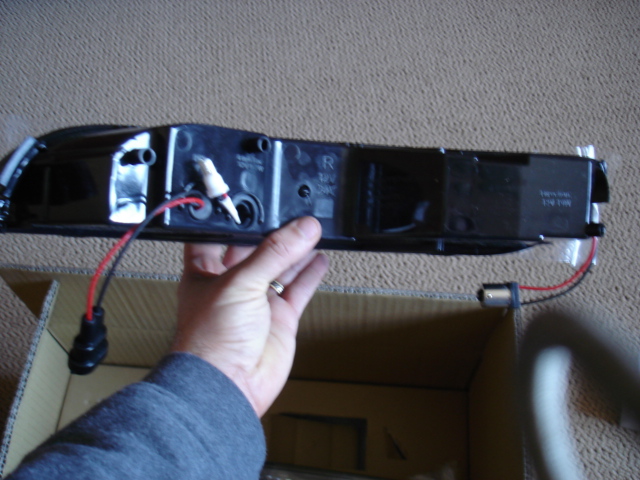

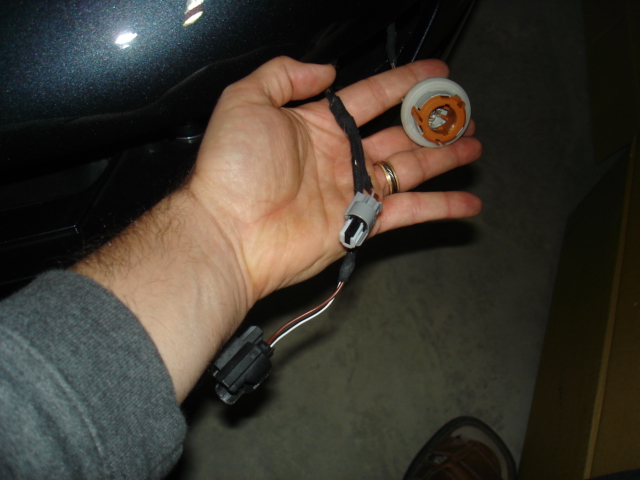

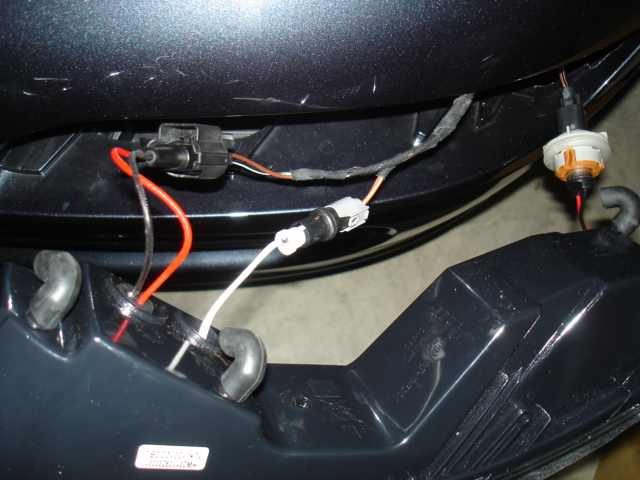

I received my Rottec DRLs yesterday. I'm very pleased with the lights. Here are some pics of the install. Basically, to remove them all you do is insert the card tool as per the owner's manual. Push in once and pull out the assembly a bit, then push in again and it will release. Pull it out and disconnect as per the manual. The only trick is that the fog light bulb and connector need to be removed from the original housing after the wiring has been disconnected. Then you re-use the black connector that the little blue bulb was in. It really couldn't be easier.
#32
12-09-2011 | 02:27 PM
Former Vendor
Joined: Feb 2004
Posts: 4,113
From: Vancouver Canada
Rep Power: 0
I received my Rottec DRLs yesterday. I'm very pleased with the lights. Here are some pics of the install. Basically, to remove them all you do is insert the card tool as per the owner's manual. Push in once and pull out the assembly a bit, then push in again and it will release. Pull it out and disconnect as per the manual. The only trick is that the fog light bulb and connector need to be removed from the original housing after the wiring has been disconnected. Then you re-use the black connector that the little blue bulb was in. It really couldn't be easier.
#33
12-09-2011 | 02:28 PM
Former Vendor
Joined: Feb 2004
Posts: 4,113
From: Vancouver Canada
Rep Power: 0
I received my DRL today and installed it!!!
All lights (fog, park, turn) are working. However, I received a 'check front left light' warning error. Sigh!!!
In addition, I noticed that the LEFT park light turns 'on' for a while (approx. 10sec) whenever I lock/unlock the car. The Right side light remains 'off' all this while.
I have informed Ray on this problem and is waiting for his resolution.
All lights (fog, park, turn) are working. However, I received a 'check front left light' warning error. Sigh!!!
In addition, I noticed that the LEFT park light turns 'on' for a while (approx. 10sec) whenever I lock/unlock the car. The Right side light remains 'off' all this while.
I have informed Ray on this problem and is waiting for his resolution.
#35
12-09-2011 | 05:36 PM
Registered User
Joined: Jul 2011
Posts: 191
From: Franktown, Colorado
Rep Power: 25
I received my Rottec DRLs yesterday. I'm very pleased with the lights. Here are some pics of the install. Basically, to remove them all you do is insert the card tool as per the owner's manual. Push in once and pull out the assembly a bit, then push in again and it will release. Pull it out and disconnect as per the manual. The only trick is that the fog light bulb and connector need to be removed from the original housing after the wiring has been disconnected. Then you re-use the black connector that the little blue bulb was in. It really couldn't be easier.
#36
12-09-2011 | 08:53 PM
sigh.. i just received my drl today also opened it and the passenger side didnt have parking light connector installed the driver side anyways it looked great but disappointed that i'll have a wait a few more weeks to receive a fix on this
#37
12-09-2011 | 09:30 PM
Registered User
Joined: Sep 2010
Posts: 650
From: Las Vegas
Rep Power: 51
Doug, thanks for those pics, they really helped out as I was staring clueless at the wires for at least 10 minutes. I found first light to be a bit of the pain to do since I didn't know how. I did the 2nd within a couple of minutes.
A few things to note:
* The bulb connector on LED lights can be hiding in the large side hole of the LED assembly. One of mine was. I fished it out carefully with my finger.
* You have to reuse 2 pieces of the hardware from the OE lights on the LED lights! Look at the pictures above and see which those are. I would have never guessed to do that, at least not for a while. I just don't understand why the connectors couldn't be made to work with OE wires without those pieces.
* Separating the OE wiring by cutting the electrical tape and freeing them makes work a lot easier.
* I changed how the wires ran through the inside of the bumper to make the reused floating hardware easier to manage on the insertion of the LED lights.
This is not a hard install, but only when you know what you are doing. Othewise there are a few WTF moments. Instructions would have been very helpful. Someone needs to make a video for this.
Installed, these lights look great! There is DOT writing on the lights, if these are DOT approved then hopefully they are quality and will stand up to wear and tear well.
A few things to note:
* The bulb connector on LED lights can be hiding in the large side hole of the LED assembly. One of mine was. I fished it out carefully with my finger.
* You have to reuse 2 pieces of the hardware from the OE lights on the LED lights! Look at the pictures above and see which those are. I would have never guessed to do that, at least not for a while. I just don't understand why the connectors couldn't be made to work with OE wires without those pieces.
* Separating the OE wiring by cutting the electrical tape and freeing them makes work a lot easier.
* I changed how the wires ran through the inside of the bumper to make the reused floating hardware easier to manage on the insertion of the LED lights.
This is not a hard install, but only when you know what you are doing. Othewise there are a few WTF moments. Instructions would have been very helpful. Someone needs to make a video for this.
Installed, these lights look great! There is DOT writing on the lights, if these are DOT approved then hopefully they are quality and will stand up to wear and tear well.
Last edited by DirtyVegas; 12-09-2011 at 09:35 PM.
#38
12-10-2011 | 03:51 AM
Registered User
Joined: Oct 2011
Posts: 9
From: Singapore
Rep Power: 0
I did further investigation today on the LEFT DRL:
1) per your advise, I turn the white connector around. With this change, the middle element of the DRL module no longer works, even when the light switch is turned on. As such, my original connection was correct, which turn the middle element on.
2) With the white connector in the correct position, there are 2 issues:
a) there is a warning 'Check front left light 'on the dash
b) the middle element will turn on for a few seconds whenever I lock/unlock the car. ( this does not happen for the RIGHT DRL)
2) I swap out the white connector and replace with the original parking bulb. With this change, the park light works normally. There is no warning message on the dash when I turn on the lights.
With the above tests, I would conclude that the the LEFT DRL is faulty.
1) per your advise, I turn the white connector around. With this change, the middle element of the DRL module no longer works, even when the light switch is turned on. As such, my original connection was correct, which turn the middle element on.
2) With the white connector in the correct position, there are 2 issues:
a) there is a warning 'Check front left light 'on the dash
b) the middle element will turn on for a few seconds whenever I lock/unlock the car. ( this does not happen for the RIGHT DRL)
2) I swap out the white connector and replace with the original parking bulb. With this change, the park light works normally. There is no warning message on the dash when I turn on the lights.
With the above tests, I would conclude that the the LEFT DRL is faulty.
#39
12-10-2011 | 10:24 AM
Registered User
Joined: May 2007
Posts: 530
From: sweden
Rep Power: 41

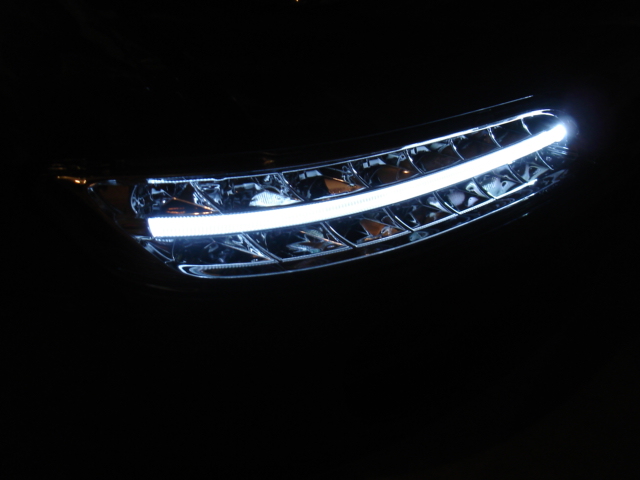

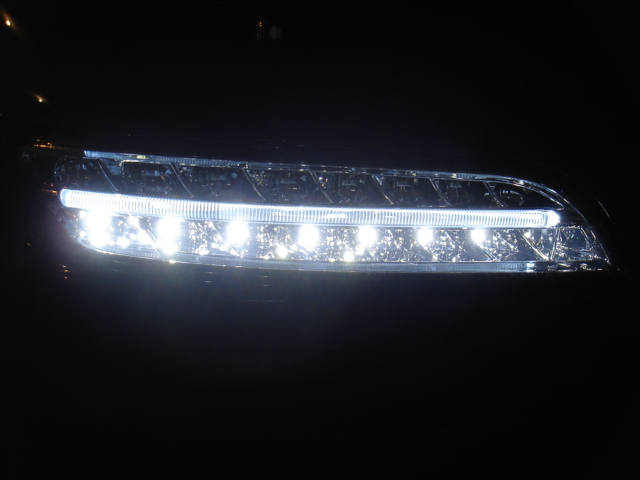

Installed mine yesterday. snapped som quick shots (with my phone) just for you guys to see. I´ll take better one later. They look absolutely beautiful with good fit and finish!
Last edited by sideWays_swe; 12-10-2011 at 12:19 PM.
#40
12-10-2011 | 11:05 PM
Registered User
Joined: Nov 2011
Posts: 1,019
From: Toronto AREA of CANADA
Rep Power: 62
nice pics. They look great. I love the shots you took, cool car and garage
#44
12-13-2011 | 12:13 PM
In the middle of my install. The driver side middle bar thing won't light and the passenger bottom LEDs won't light. I've tried reversing polarity on the middle connection but no change. Going back to it...
