DIY: simple cornering light upgrade to LED
#1
DIY: simple cornering light upgrade to LED

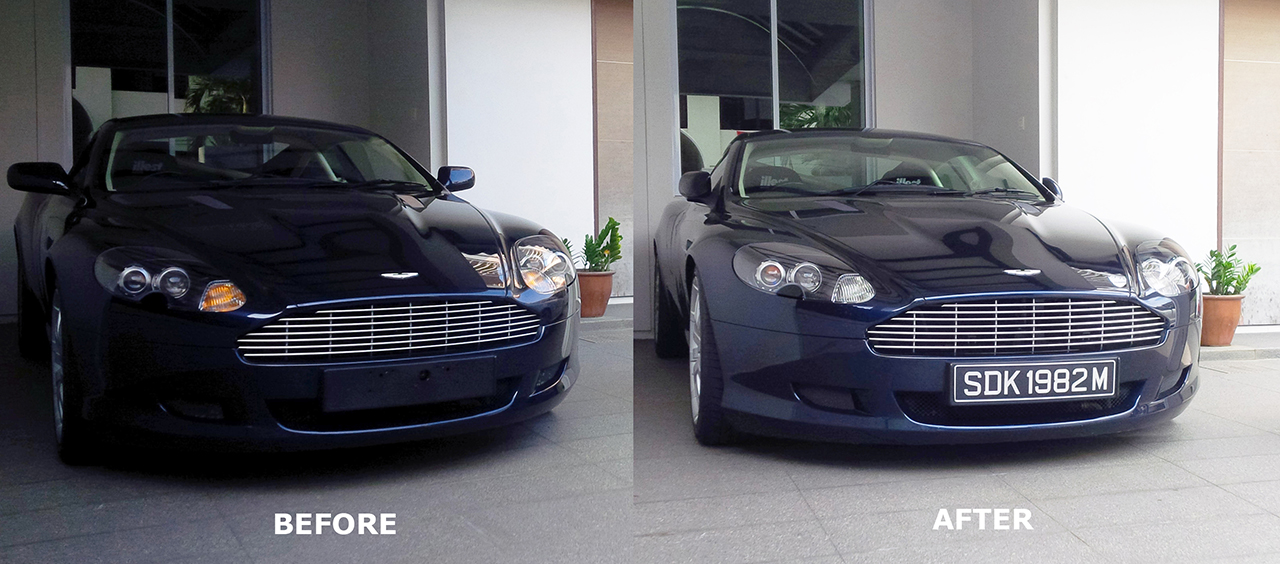

One of the recent DIY's I tackled was that of upgrading my headlight cornering light-bulbs. The standard PY27/7v-style orange bulbs 'reflect' this orange hue all over the blinker light area on the headlights. This doesn't give it the look it should have imho. With bad experience on previous cars with the chrome-covered bulbs, I decided to upgrade to LED instead.

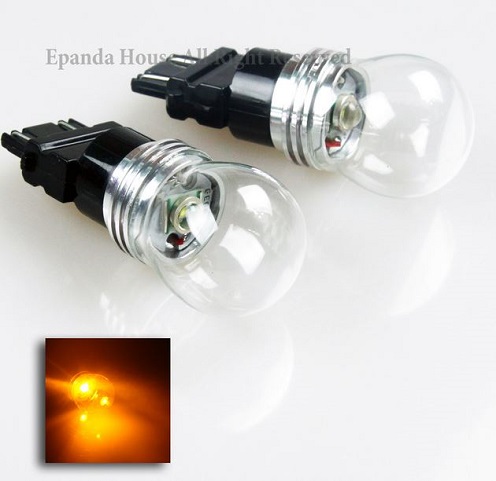

Because I'm not a fan of multi-SMD-led style bulbs (directional light and questionable quality), I further searched and found this single orange-led bulb which still has the glass-bulb incorporated enabling the light a 360 degree angle which replicates the OEM-bulbs 'shine'.

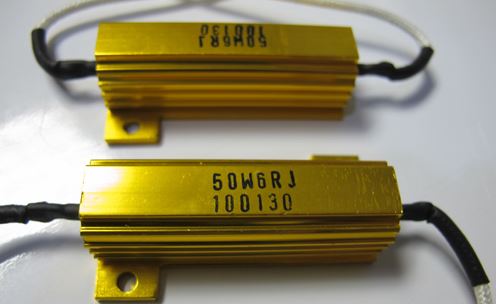

I bought them thru eBay and this search term "AMBER SMD 9W CREE CHIP 3157 DUAL FILAMENTS LED LIGHT BULBS" will get you where you need to be. Do not forget to order a set of 50 W 6 Ohm resistors to prevent rapid flashing and error messages in your instrument panel.
Because I'm not a fan of multi-SMD-led style bulbs (directional light and questionable quality), I further searched and found this single orange-led bulb which still has the glass-bulb incorporated enabling the light a 360 degree angle which replicates the OEM-bulbs 'shine'.
I bought them thru eBay and this search term "AMBER SMD 9W CREE CHIP 3157 DUAL FILAMENTS LED LIGHT BULBS" will get you where you need to be. Do not forget to order a set of 50 W 6 Ohm resistors to prevent rapid flashing and error messages in your instrument panel.
#3
I really like the look and will try to do this also. Did you have to take the wheels off to change the bulb or was there a better way to access them. Also, was it easy to install the relays? Could you describe or post a photo showing how you connected them? Any help is appreciated.
Thanks!
Ethan
Thanks!
Ethan
Last edited by Ekaplan1020; 09-16-2015 at 02:10 PM.
#4
I really like the look and will try to do this also. Did you have to take the wheels off to change the bulb or was there a better way to access them. Also, was it easy to install the relays? Could you describe or post a photo showing how you connected them? Any help is appreciated.
Thanks!
Ethan
Thanks!
Ethan
