Newer style seats retrofit
#18
This project is turning out to be more difficult than planned. It appears that the airbags are different from new to old. Harness also. So I’ll have to figure out wiring. Does anyone know how to remove the rails from the 2006. The front bolts I’ve managed to loosen. But the rear bolts are not even visible. And the front bolts only come down but so far because the hit the rail.
update: so it dawned on me. The db9 have height adjustments. Duh. So put the seat back in the car and adjusted to maximum height. Can now reach all the rail bolts.
update: so it dawned on me. The db9 have height adjustments. Duh. So put the seat back in the car and adjusted to maximum height. Can now reach all the rail bolts.
Last edited by trainwreck; 08-10-2024 at 01:10 PM.
#20
The leather cover is mostly removed, although you can see that it us still attached by the airbag on the side of the squab.
The cover open at the bottom and with the zip around the headrest then pulls off the top with enough slack even though the airbag is still attached.
The cover open at the bottom and with the zip around the headrest then pulls off the top with enough slack even though the airbag is still attached.
Last edited by PhuketPaul; 08-20-2024 at 11:23 PM.
#21
Hello @trainwreck ,
I noticed that you never responded to @GA_DB9 , not sure why, but I will add that GA_ DB9 is correct, those red seats are definitely out of a flood vehicle, and by the corrosion on the motor, and the rust elsewhere, this appears to be saltwater, or at least brackish water damage, I went through all of this in my Hurricane Sandy Bentley GT rebuild, I removed all the red leather from my GT seats, and installed it onto the donor seat frames from my parts GT.
I mention this as to inform you of the hidden issues on the underside of the leather, hopefully you have removed all of the red leather and cleaned and conditioned it prior to reinstalling same, same goes for any seat cushions, as the white residue aka white mold shown in you picture of the seatback will likely turn to black mold, neither are good, health wise.
You can see in my photos the mold that appeared over time, along with the musty moldy smell, as the person whom purchased my GT from the auction house stored it in his shop for 9 months plus, only doing surface cleaning, which left the issue hiding underneath.
Sincerely
Johnny
.
I noticed that you never responded to @GA_DB9 , not sure why, but I will add that GA_ DB9 is correct, those red seats are definitely out of a flood vehicle, and by the corrosion on the motor, and the rust elsewhere, this appears to be saltwater, or at least brackish water damage, I went through all of this in my Hurricane Sandy Bentley GT rebuild, I removed all the red leather from my GT seats, and installed it onto the donor seat frames from my parts GT.
I mention this as to inform you of the hidden issues on the underside of the leather, hopefully you have removed all of the red leather and cleaned and conditioned it prior to reinstalling same, same goes for any seat cushions, as the white residue aka white mold shown in you picture of the seatback will likely turn to black mold, neither are good, health wise.
You can see in my photos the mold that appeared over time, along with the musty moldy smell, as the person whom purchased my GT from the auction house stored it in his shop for 9 months plus, only doing surface cleaning, which left the issue hiding underneath.
Sincerely
Johnny
.
#22
Apologies. Thank you GA_DB9. And Thank you for that info and the warning. I was made aware it was from a flood vehicle. I know I took a chance on them. I don’t see any signs of mold. As the white spots you may be referring to are glue. The motor on it is shot after taking the cover off to examine. I was hoping that the water line wasn’t high enough to do too much damage as the leather appeared to be in good condition. I am now up to a complete disassemble of the red seats as there is no way to reach the wiring harness in the squab without it. This has become worst case scenario but probably for the best. As now I can really go through the leather and treat it. What products/process were used to treat the Bentley? Also I’m swapping over my db9 rails motors and harness as I want to keep the height adjustment. Guessing the vantage did not have that option, idk? I have to figure out negative and positive for the seat air bag. As they are different colors/connector. Will need to splice to make it work. I believe I’m going to lose the function of the button on the headrest since the original harness does not a connection or reach
Last edited by trainwreck; 08-25-2024 at 10:51 AM.
#23
From what I can remember it unclips from the bottom of the rear squab and pulls upwards, I left it attached to the airbag. there is a zip in the gap under the headrest to allow you to pull the head rest part off. It comes off quite easily.
The solenoids and wiring for the seat back release is in there - if you wouldn't mind sending me a picture of the solenoids as mine didn't have any solenoids nor wiring for heaters, back release or lumbar support, got the heating an d lumbar sorted easily enough but and I couldn't find any information on the solenoids so added my own but not really strong enough.
The solenoids and wiring for the seat back release is in there - if you wouldn't mind sending me a picture of the solenoids as mine didn't have any solenoids nor wiring for heaters, back release or lumbar support, got the heating an d lumbar sorted easily enough but and I couldn't find any information on the solenoids so added my own but not really strong enough.
#25
Anyone have access to a wiring diagram between the 06 db9 and 09 vantage. Need to review the air bag connection. The original has black with a red tracer and green with an orange tracer. And the vantage has white with black tracer and purple with yellow tracer.
Nevermind traced back to other side connectors to match up. Pics for future help
Nevermind traced back to other side connectors to match up. Pics for future help
Last edited by trainwreck; 08-25-2024 at 01:43 PM.
#27
I think as long as the seat has accessory power the seatback release button should just work. Though if you're saying your original sandstorm seats don't have the button it shouldn't be that big of a lift to post wire the button to the seat release solenoid.
#28
My originals (moonshadow actually) did not have the seat release button. Only the lever. So the wiring harness will not have that connection. But I’m sure I can figure out wiring it up. It’s kinda like I want to be done already. I’m close. Do I want to keep adding more tasks. But I’m not one to half ***. I’m even thinking of replacing the seat heater. I can’t stand how you can see the elements through the leather.
#29
So I’ve finally managed to get the front passenger seat all wired up and back together. Bolted it back in the car and at first it was not responsive to the adjustment buttons. I’ve read about seat resets and managed to get it going. The seat was already in the most forward position. After starting the car and driving a bit. I was able to move it back and down!

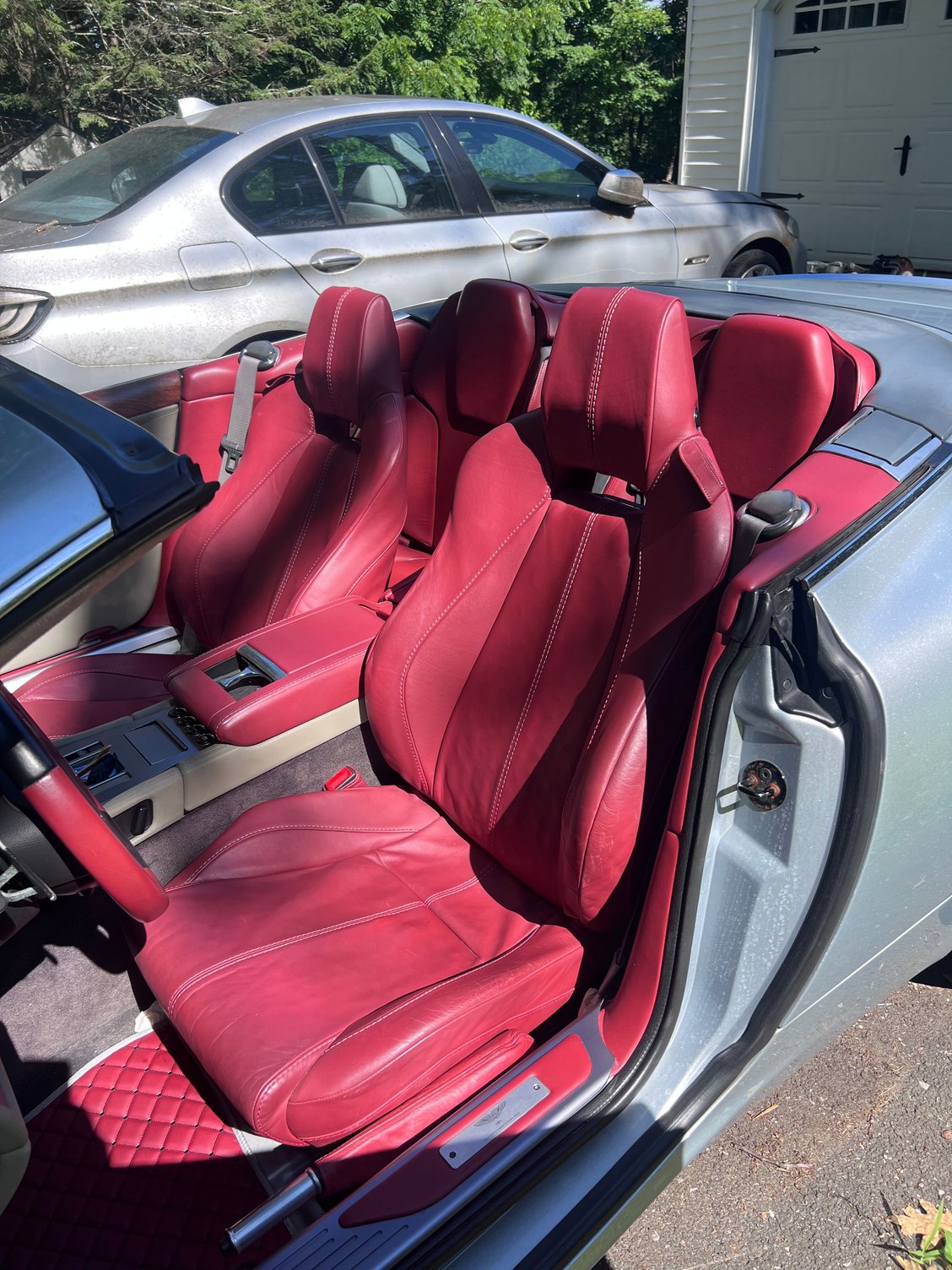

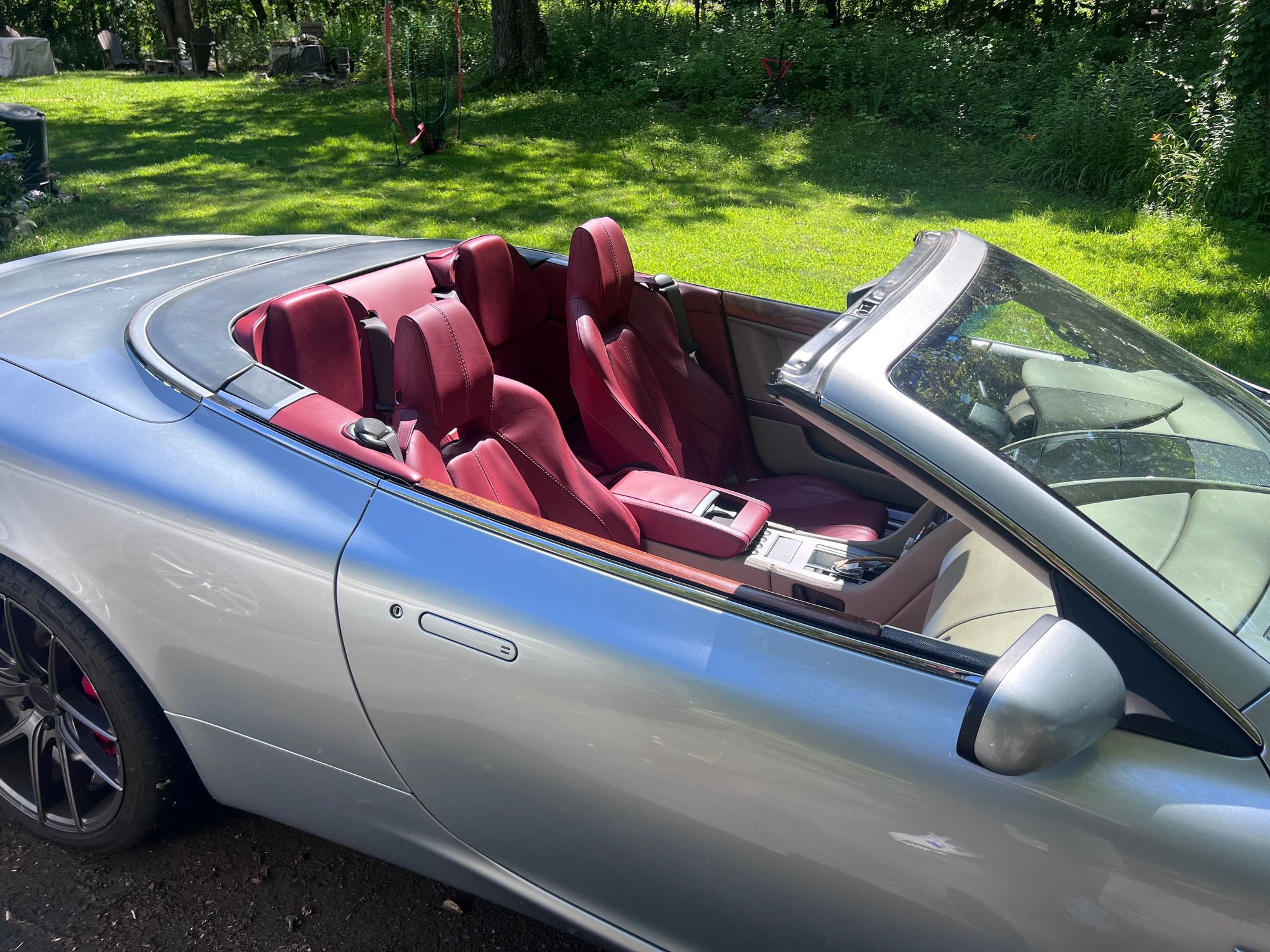

But not sure if the backrest was responding. I also managed to wire up the back release button on the side of the headrest with one wire not connected at the base. Brown with orange tracer I believe. But still maintained its function. The only other thing was I did not connect the seat heater as original I believe was 2 wire and newer was 3. And I don’t like how you can see the heat strips through the leather. So I may replace the heating element at a later time. But for now I got 1 done and on to the driver side! And no warning lights on the dash (ie. airbag). Here’s a pic
But not sure if the backrest was responding. I also managed to wire up the back release button on the side of the headrest with one wire not connected at the base. Brown with orange tracer I believe. But still maintained its function. The only other thing was I did not connect the seat heater as original I believe was 2 wire and newer was 3. And I don’t like how you can see the heat strips through the leather. So I may replace the heating element at a later time. But for now I got 1 done and on to the driver side! And no warning lights on the dash (ie. airbag). Here’s a pic
