Year: 2003
Make: BMW
Model: 5-Series
Price: $40000
Mileage: 53000
Color: Titanium Silver
Private or Dealer Listing: Private Listing
Location (State): NC
Transmission: Manual
Drivetrain: Rear Wheel Drive

My MONSTER 540i will be for sale
I have every receipt and every scrap of paper on the build...Performance BMW Magazine is doing an article on the car here in a few months.
I will have fresh videos the weekend after Memorial day weekend...

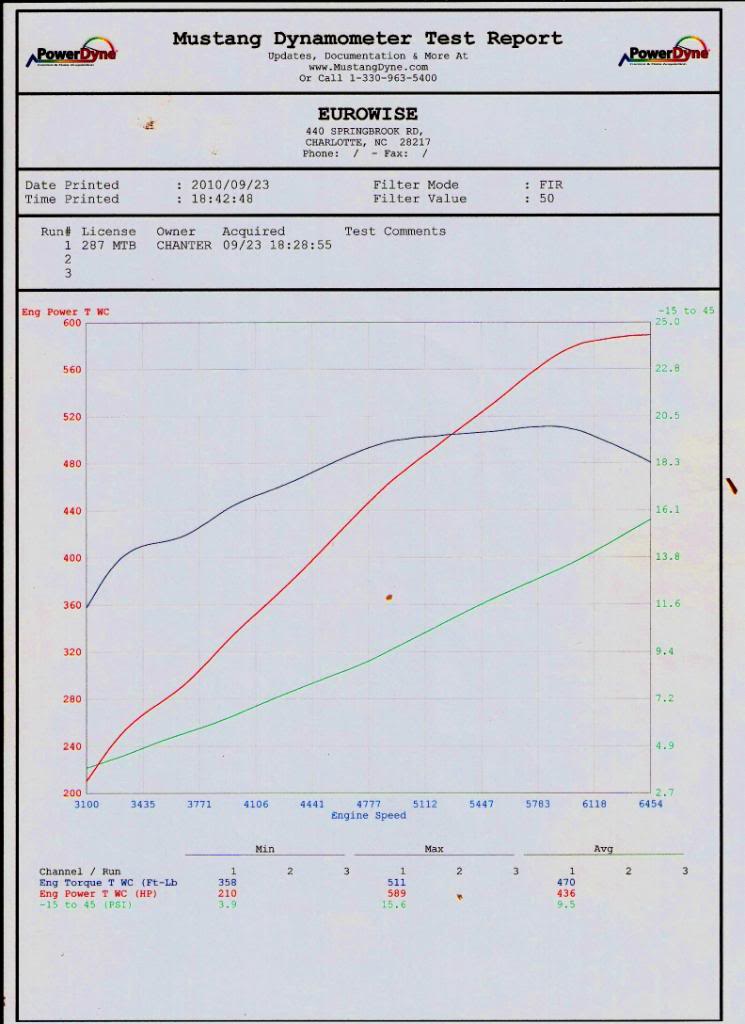

My 2003 540i Sport is up for sale.52k on the odometer.5K on all the modifications as far as mileage.It has just been completely gone through and is 100%.Last dyno was something like 589 RWHP @ 6100 RPM and 511 Torque at 5250RPM on a Mustang Dyno.( On a Dyna Pak Dyno it showed 627WHP and 561 Torque)I will find the lists of things the car has later.The car will most likely be in the Miami area by the end of May ( I am delayed a bit ) as I need to be in North Palm Beach around then and that will be a good ride for my last ride.I am only interested in serious offers from those who know what they are buying and of course I know I will take a bath on the price.The car needs to go to an enthusiast to enjoy the fruits of my labor and $$$$....$40,000
Here is a short video.
http://s782.photobucket.com/albums/y...DSCON_0001.mp4

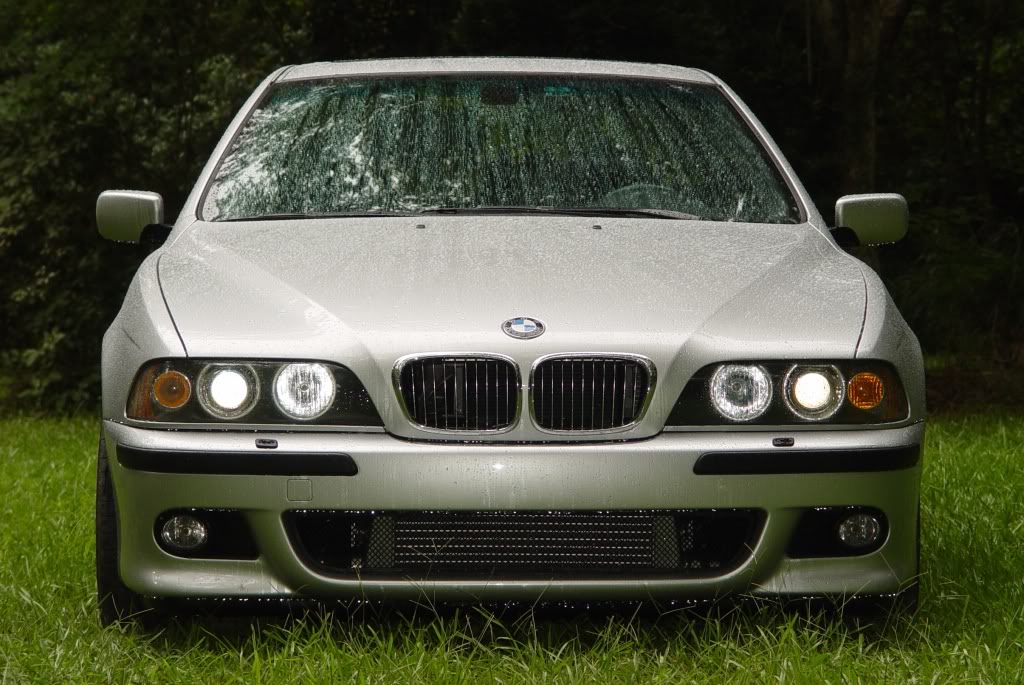

Pictures of various parts and the car its self.













http://i782.photobucket.com/albums/y...Picture654.jpg

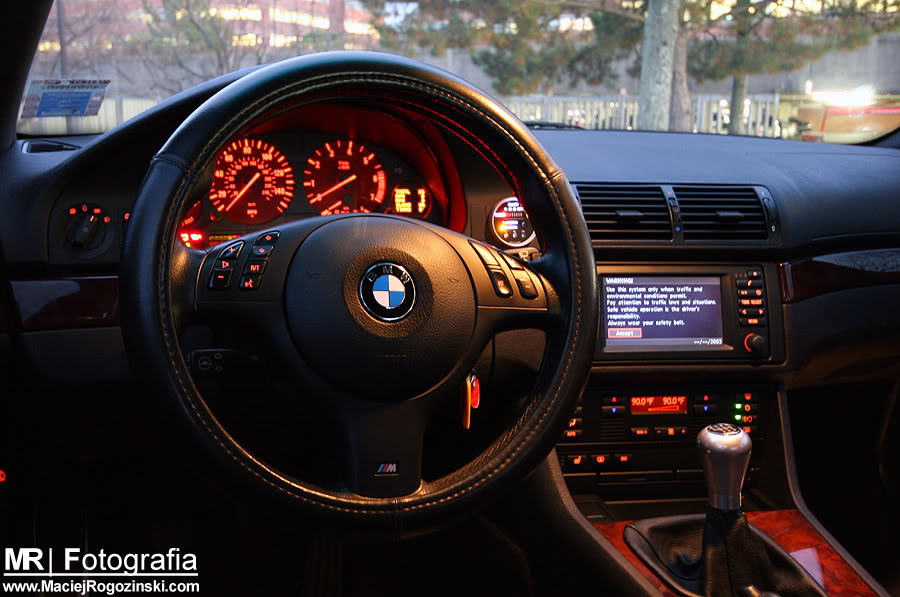

The car is pretty much Mint inside and out ( I did drive the car ) and has just been gone through completely as I want the next owner to be able to enjoy the car.
The motor cost 20K to have built at VAC Motorsports in Philly.
Like I said everything has been done new as of 5,000 miles ago.I will have a list online, when I get back from sailing,of all the various parts that are basically brand new.I just decided to let the car go to someone else when I put this up.I am too busy these days to deal with the car and figure that someone would want to enjoy the car at my expense.

Oh yeah, the car has never been tracked and the worst abuse it got was on a Dyno tuning it....
Just pulled the plugs...
http://i782.photobucket.com/albums/y...Sparkplug2.jpg
Resonators and support rods...
http://i782.photobucket.com/albums/y...atorInline.jpg
By Pass Valves...
http://i782.photobucket.com/albums/y..._2003/BPVs.jpg
More to come later, I need to get packing for my trip....

Short List from memory-

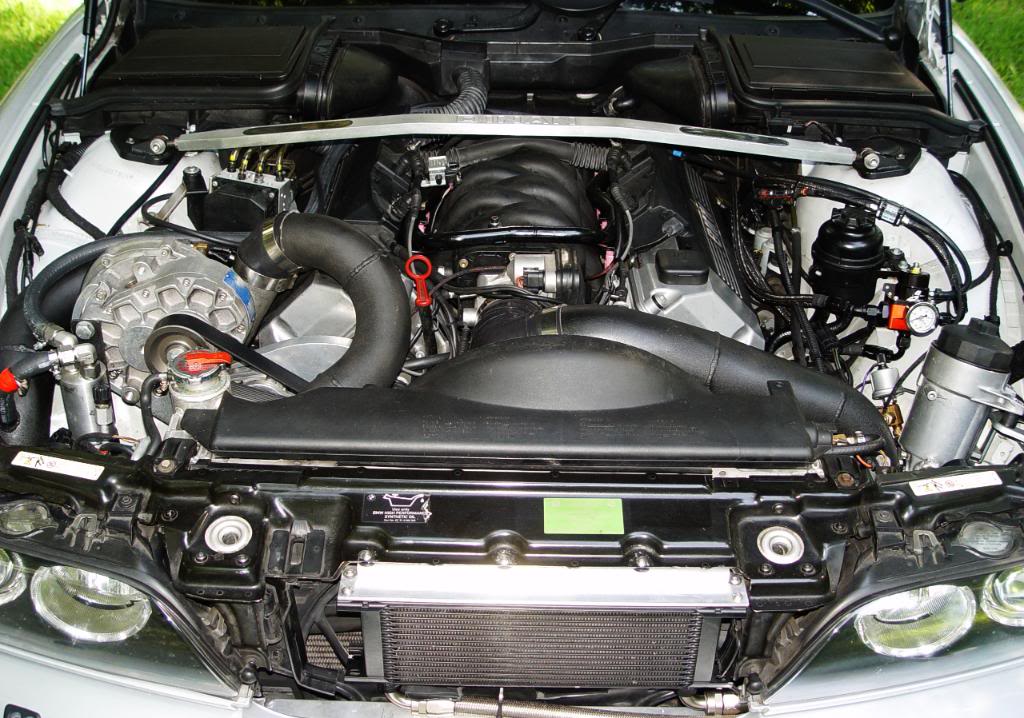

ENGINE,
CP Pistons with ceramic coated tops and Teflon coated skirts 9:1 compression

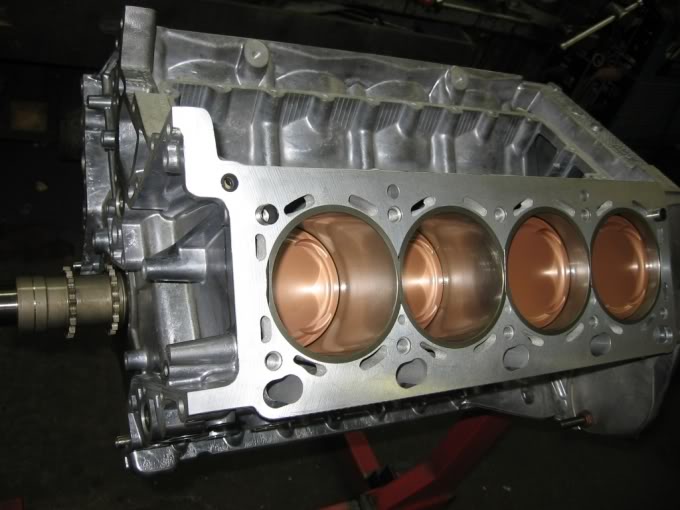

Darton Sleeved
Arrow H-Rods
Raceware fasteners throughout
Alpina Forged crank(4.6L)
Five O Motorsports Modified 65 pound Bosch injectors
OEM fuel rail Modified to fit 6AN lines
Ported and Polished heads
1mm oversized SS valves intake and exhaust
Elgin Cams
JB Racing flywheel
Water Pump all metal / OEM had plastic impeller
New Vanos solenoids
New timing chain/New Cam chains
VAC oil pump kit
Dinan throttle Body
Dinan intake manifold
Super Sprint Headers/Ceramic Coated / Super Sprint CATS / E92 resonator as well as a Vibrant performance resonator /Magnaflow exhaust can /All custom
Vortech T-Trim SuperCharger
All custom inter cooler piping
PWR intercooler
Setrab 15 row oil cooler / 10 AN lines

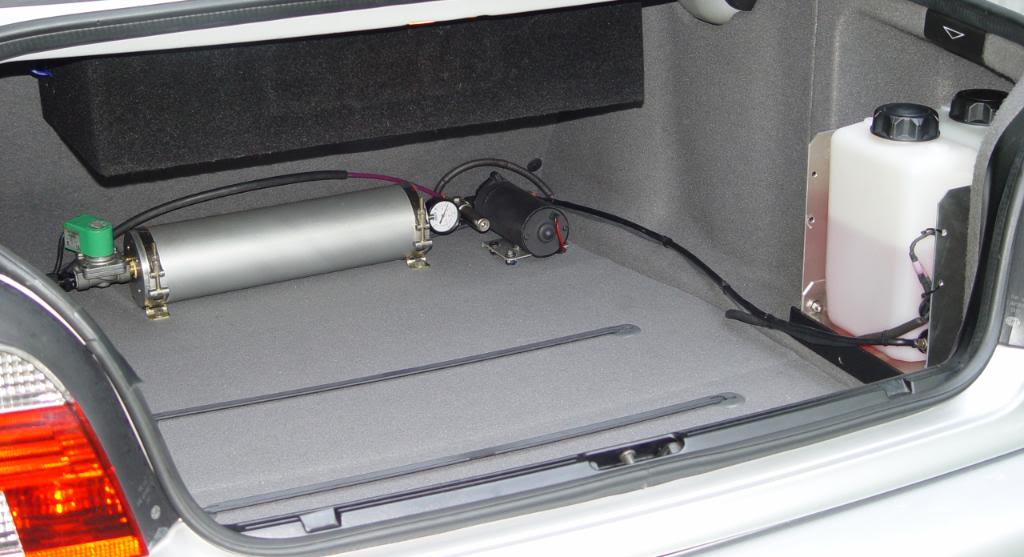

Accusump Pre-Oiling Sysytem( 3 quart Reservoir) /10AN lines
Aquamist HF-5S water/Methanol injection ( Injector Duty Cycle Trigger) single 1.0mm nozzle
Aeromotive FPR
In tank Walbro HP 355 / Bosch 044 inline / Kenne Bell Boost a Pump
Aeromotive Fuel Filter
Aeromotive inline check valve
McKinney Catch can
Active Autowerke BPVs all custom mounting
BMW hot climate oil filter housing /has thermostat built in
VAC E39 All Aluminum single pass radiator / 666 Fabrication reservoir tank
8 rib Crank pulley made by Buldogge
8 rib Supercharger pulley Vortech high traction
Green Stripe supercharger belt
Vibrant Performance Couplings for the SC and Intercooler
Alpha N Tune by Mr. X
Could be more just can not think of anything else engine related

New wheel bearings
New tie rods
New wishbone
New thrust arm

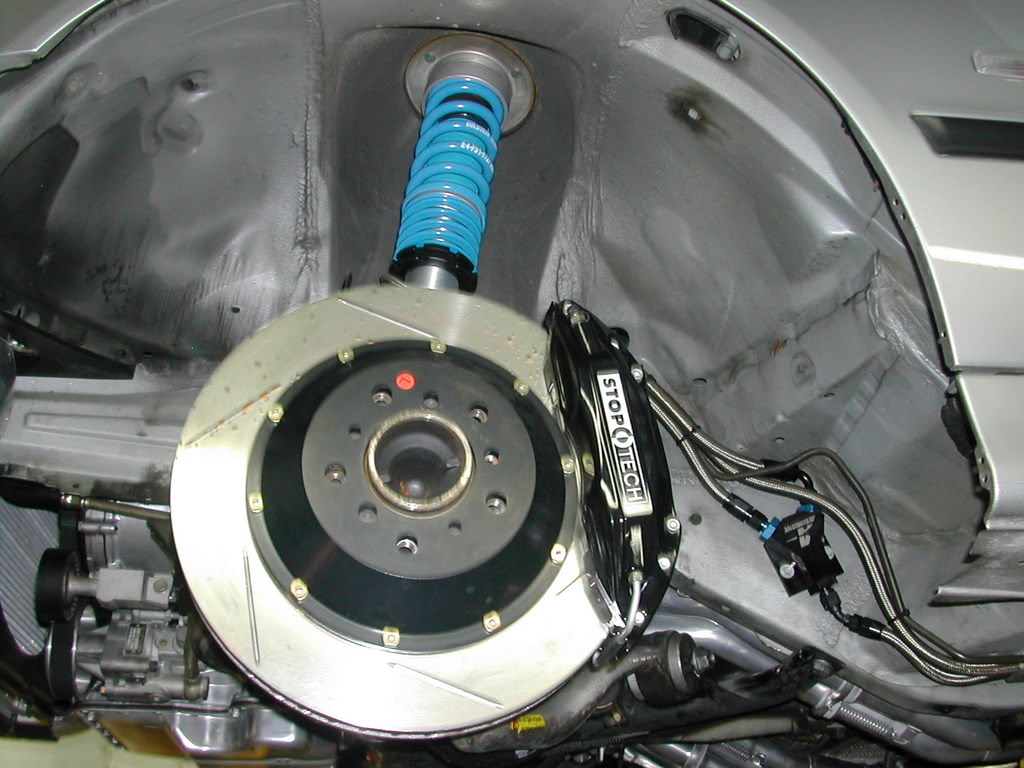

Stoptech 355mm brakes up front / new rebuilt rear brakes with slotted rotors
PSS9 suspension
M5 Sway bars front and rear
M5 rear differential 3:15 LSD /43K on it
M5 Half shafts
New drive shaft and center bearing
New Guibo
Michelin PS2s for tires , NEW 1K on them
M5 support rods for rear
UUC shortshifter
Clutch Masters stage 4 clutch for M5
Could be more stuff here also........
PLX electronics with data logger that hooks to laptop / AFR both banks , Boost & Vacuum , oil Temp/pressure ,H2O temp at top of heads plus the OBDII stuff

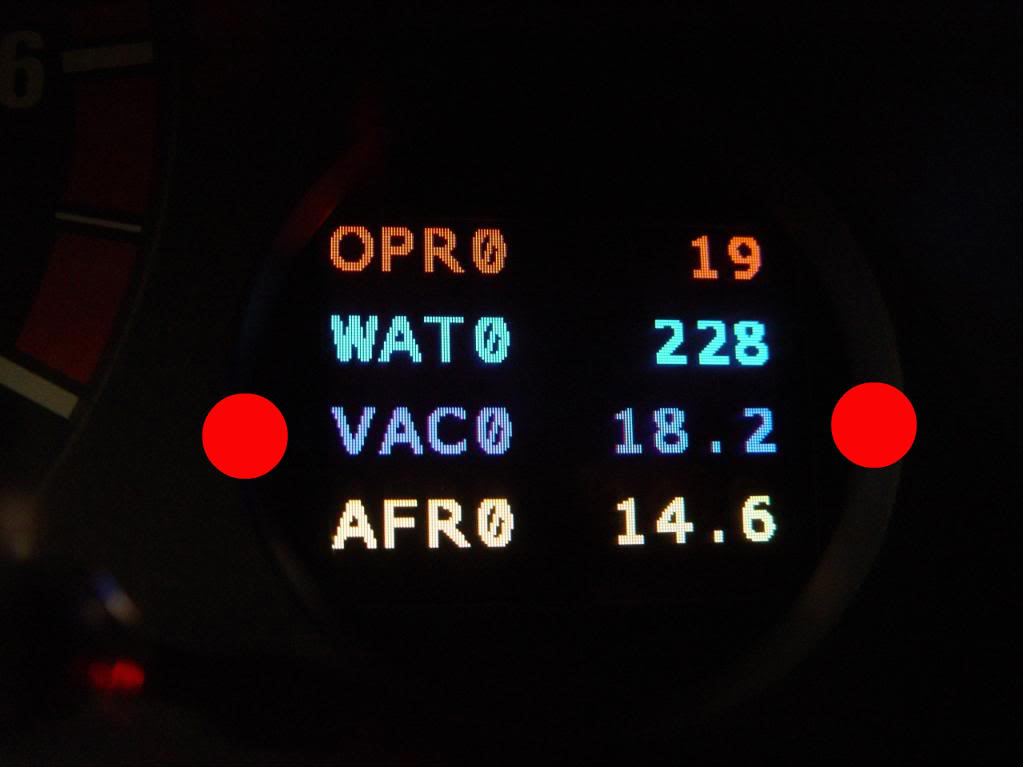

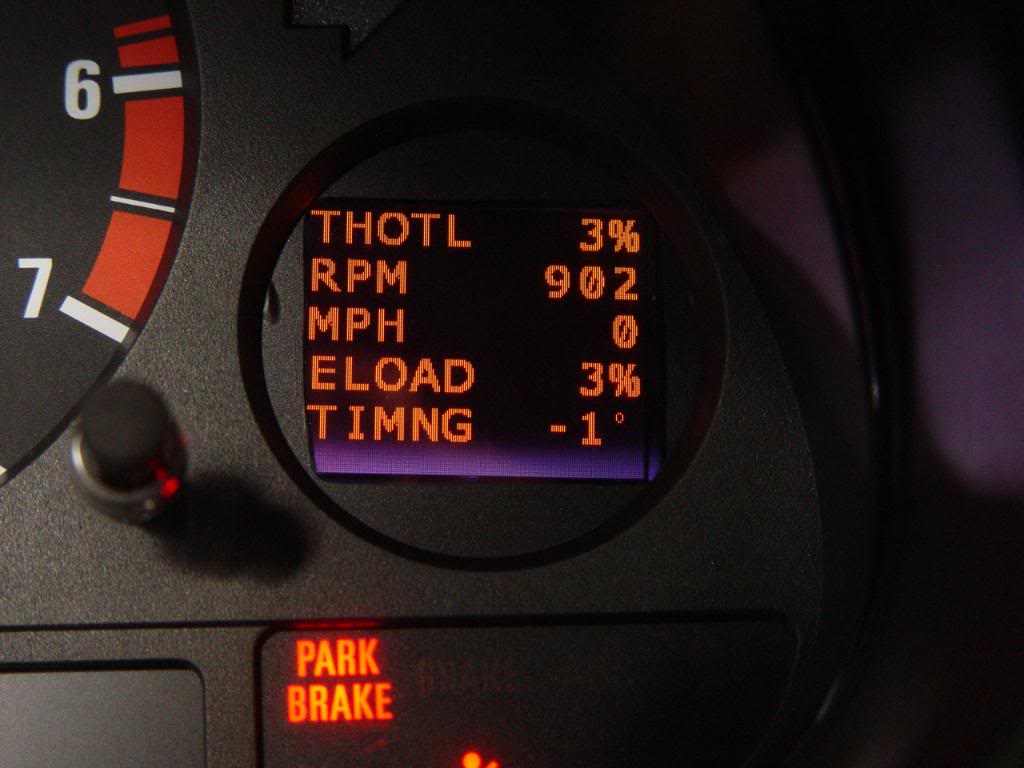

Custom in cluster display for PLX
BSW sound upgrade for the speakers in the car
BSW sub in trunk with 200Watt amp

Most likely more things.....


http://i782.photobucket.com/albums/y...3/DSC06251.jpg

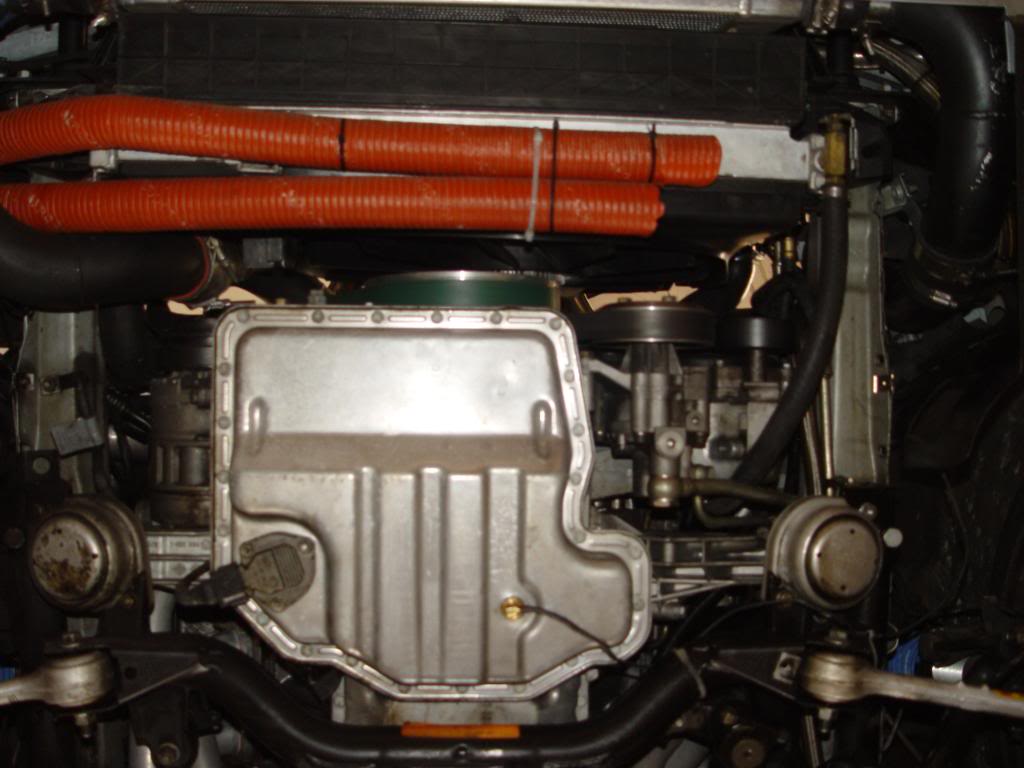

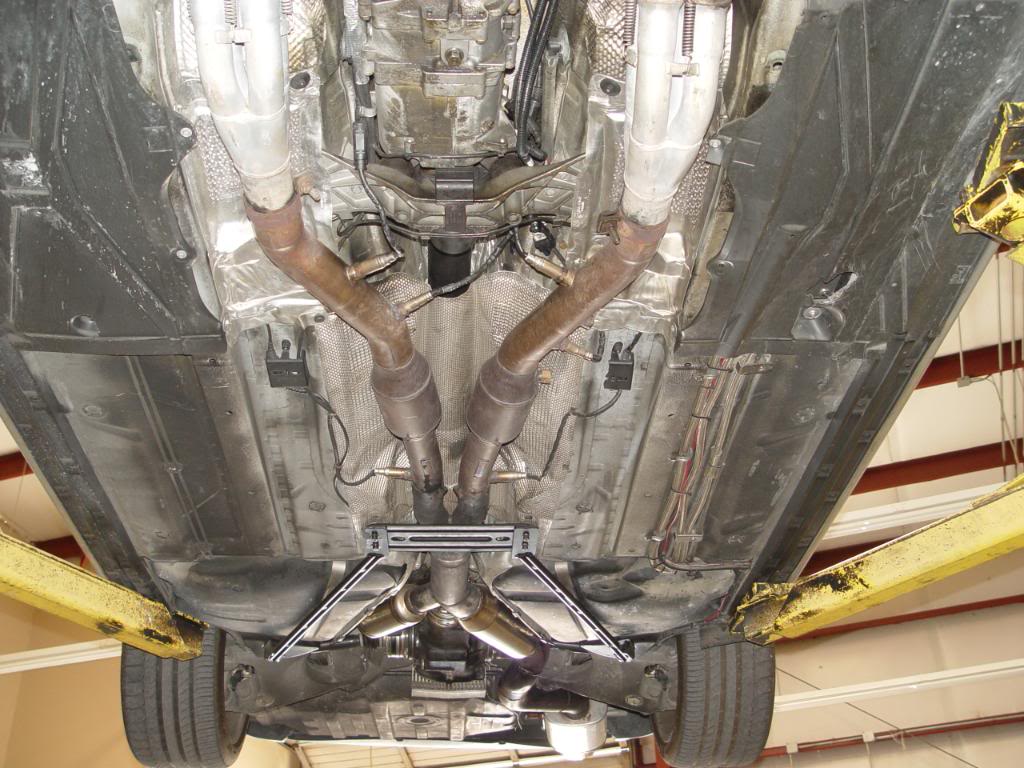

UNDER the CAR photos
The BPV hoses...

The new thrust arm

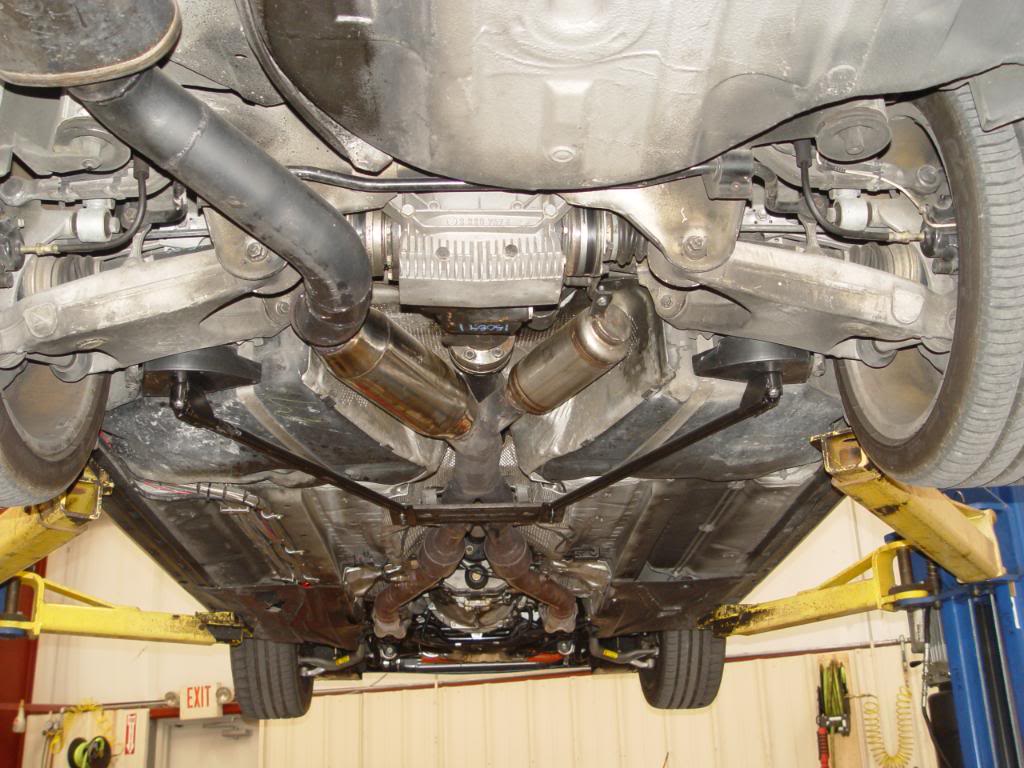

The rear to the front view

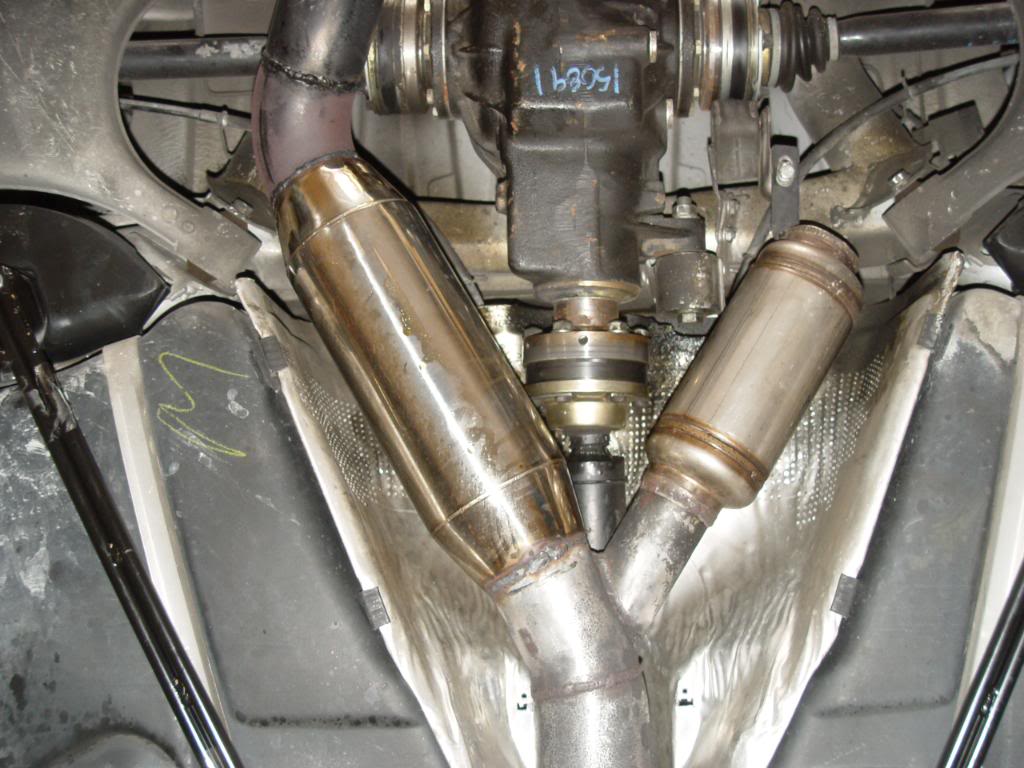

The E92 & Vibrant Resonators

Front to rear view

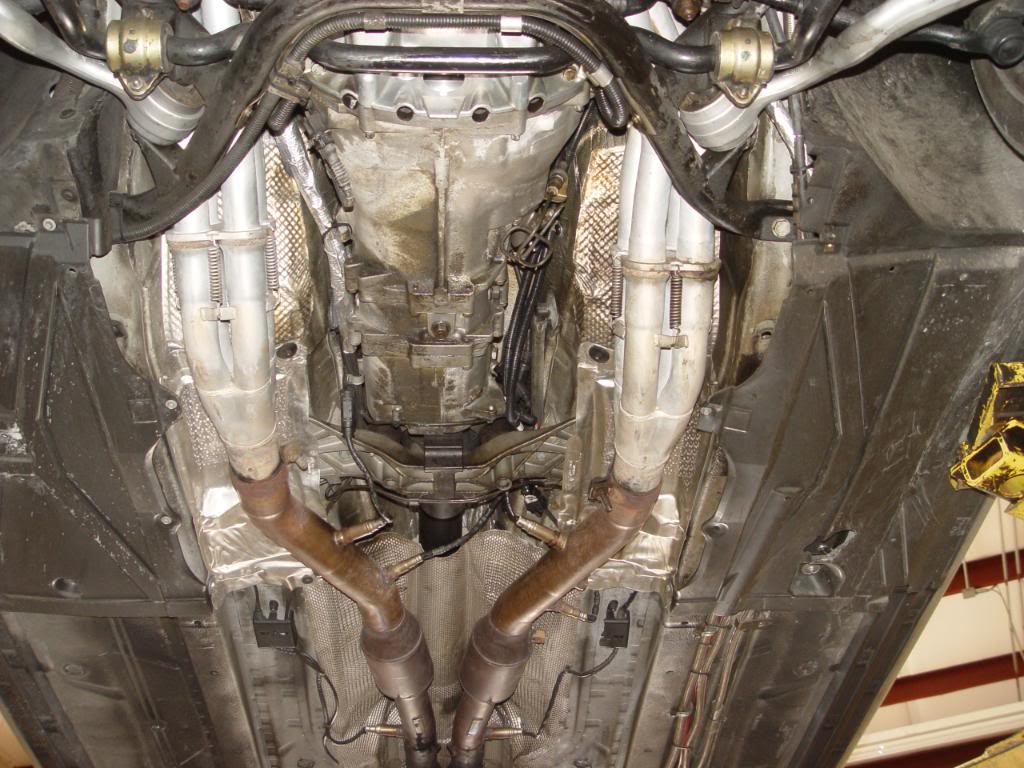

Headers view

__________________
http://i173.photobucket.com/albums/w...t11NC/car2.jpg



Man.....this would be one hell of a daily driver



It drives like a normal car in a closed loop fuel system until you put your foot into the accelerator pedal and the it acts like the street legal race car it is built to be...
Tuning by RUMA TUNING INC. made it so....



Wow very nice 540i, It would be mine on steriods I can imagine its gotta be a blast to drive. Would make a great daily beast for someone. GLWS



It will be a nice car for someone to drive around , I had my fun putting it together( Had my troubles as well of course) now it is time for it to go to someone else to enjoy.
Thanks for the good wishes.



So well done. I will spread the word. Best of luck with the sale.



I made sure that nothing ,but the best went into the car.I cleaned up all the wiring , I cleaned up all the fuel and oil lines ,all the intercooler piping was custom made to be efficient,the 8 rib pulleys on the super charger system do their jobs and no slippage ,the Vibrant Performance couplings are great ,the Vibrant Performance resonator works really well to keep the drone down,The stereo works pretty good for what it is ( BSW upgrades and subwoofer) All in all the car came out well after me being persistent.
Plus getting the best tuner to fly to the car to tune the car,no piggy back OEM Alpha N ....
Thanks....
