2005 CGT dead battery...can't access trunk.

First and foremost, I did tons of research on this topic and nothing has worked so far.

I saw this video which has been posted numerous times on here
, but when I try removing the left air filter, it doesn't even budge. It seems to be connected to something else on the bottom as well, since after removing the 10mm screw on top as shown in the video, I can barely get it to move afterwards.

As the emergency trunk release handle is also electronically operated... that option is exhausted as well.

I have no idea what to do at this point.

Any help is appreciated, thanks.

  #2
Old 04-15-2017 | 02:01 AM
ExSF's Avatar
Registered User
Joined: Sep 2013
Posts: 646
From: Europe
Rep Power: 42
ExSF is a name known to allExSF is a name known to allExSF is a name known to allExSF is a name known to allExSF is a name known to allExSF is a name known to all
There are a number of screws holding the air filter top, 6 or 7 I think, they all need removing.
Or do you mean the bottom part?

Les.

  #3
Old 04-15-2017 | 04:51 AM
jim2331's Avatar
Registered User
Joined: Jan 2017
Posts: 431
From: san francisco
Rep Power: 25
jim2331 is infamous around these parts
....have you tried the access hole behind the back seat...from other posters that seems the mechanical way to open trunk...I know how frustrating this is, a real crazy design...JimB

  #4
Old 04-15-2017 | 04:57 AM
jim2331's Avatar
Registered User
Joined: Jan 2017
Posts: 431
From: san francisco
Rep Power: 25
jim2331 is infamous around these parts
....Just noticed you are Bergen County...Johnny here is expert not too far from you. I'm sure he will help you in or look up his posts on the rear seat door thing. I do believe it is mechanical but can be difficult...JimB

  #5
Old 04-15-2017 | 06:49 AM
Johnny Hotspur GT's Avatar
Administrator
Joined: Jul 2014
Posts: 3,446
From: Montgomery NJ
Rep Power: 1002
Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !Johnny Hotspur GT Is a GOD !
Originally Posted by lefizzet
First and foremost, I did tons of research on this topic and nothing has worked so far.

I saw this video which has been posted numerous times on here https://www.youtube.com/watch?v=XErgTtr0bN8, but when I try removing the left air filter, it doesn't even budge. It seems to be connected to something else on the bottom as well, since after removing the 10mm screw on top as shown in the video, I can barely get it to move afterwards.

As the emergency trunk release handle is also electronically operated... that option is exhausted as well.

I have no idea what to do at this point.

Any help is appreciated, thanks.
Good morning Lefizzet,

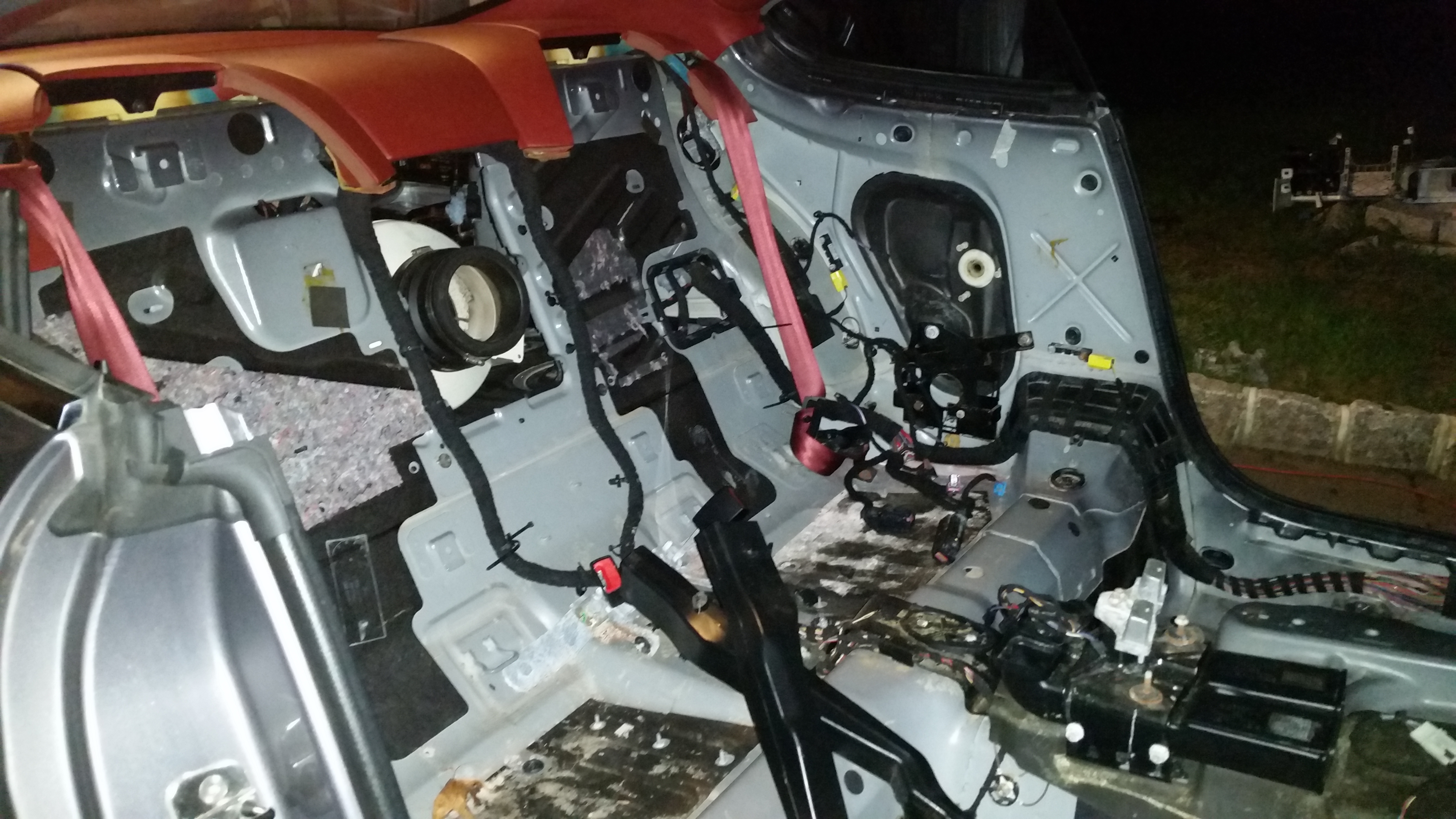

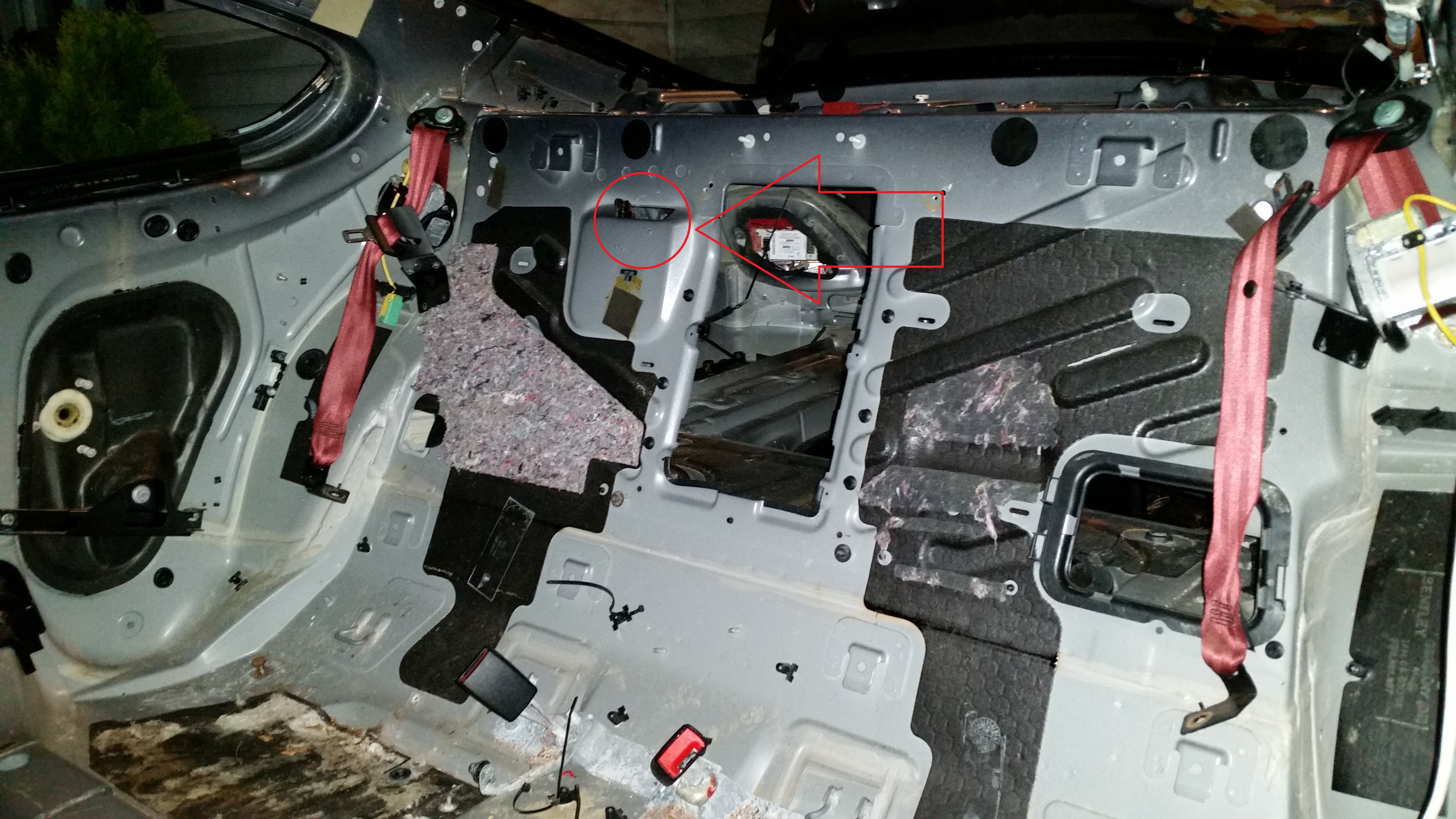

If for some reason to still cannot remove the air filter lower box, the NON electric emergency trunk release lever is located behind the right rear upper seat, you would pop the lower section of the seat out as it just snaps in place, so you would lift the front of the lower section up and out, next you will see the 1 torx bolt at the bottom holding the vertical portion of the rear seat in place, remove bolt and slide the seat down so it releases from the upper mounting apparatus, you will now see the black metal trunk release lever, it does require some strength to unlatch, and if you could have a second person gently push down on the truck lid and then lift as you operate the lever it would help.




.

Attached Thumbnails Click image for larger version

Name:	744.jpg
Views:	138
Size:	3.67 MB
ID:	474267   Click image for larger version

Name:	752.jpg
Views:	259
Size:	3.87 MB
ID:	474269

Last edited by Johnny Hotspur GT; 05-16-2017 at 04:06 PM. Reason: add photo
  #6
Old 04-15-2017 | 08:12 AM
lefizzet's Avatar
Thread Starter
|
Registered User
Joined: Jan 2014
Posts: 29
From: Bergen County, NJ
Rep Power: 12
lefizzet is infamous around these parts
Originally Posted by ExSF
There are a number of screws holding the air filter top, 6 or 7 I think, they all need removing.
Or do you mean the bottom part?

Les.
In the video, he only removes 1 10mm screw and the whole filter seems to pop out of place. The one on my car doesn't budge once I remove the 1 screw, it seems like it's screwed down somewhere else as well towards the front of the car (bottom if you're looking straight down at the air filter). Thanks.

Originally Posted by jim2331
....have you tried the access hole behind the back seat...from other posters that seems the mechanical way to open trunk...I know how frustrating this is, a real crazy design...JimB
Yes I reached the emergency release handle with a broomstick through the back seats. It makes a clicking noise when I press it down, but nothing happens so I assume it's electronically activated. Thanks.

Originally Posted by Johnny Hotspur GT
Good morning Lefizzet,
If for some reason to still cannot remove the air filter lower box, the NON electric emergency trunk release lever is located behind the right rear upper seat, you would pop the lower section of the seat out as it just snaps in place, so you would lift the front of the lower section up and out, next you will see the 1 torx bolt at the bottom holding the vertical portion of the rear seat in place, remove bolt and slide the seat up so it releases from the upper mounting apparatus, you will now see the black metal trunk release lever, it does require some strength to unlatch, and if you could have a second person gently push down on the truck lid and then lift as you operate the lever it would help.




.
Wow I never knew about this, I will try it out this weekend, thanks!
