Here at GMP Performance, we love power upgrades. The words turbocharger and supercharger are two of our favorites of all time. So when we got word that we'd be driving out to pick up a Z4M interested in a supercharger kit from ESS, we were more than excited.

Currently, we are hard at work at that and we can't wait to be able to share it with you. For now, however, we though we'd share the kit itself so you guys can see what's coming soon!

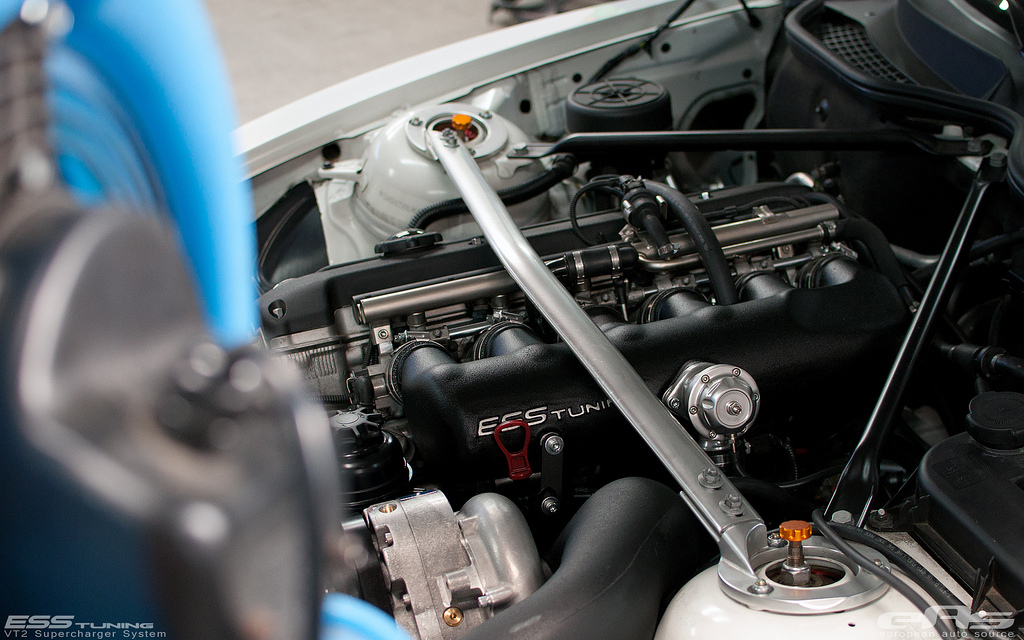

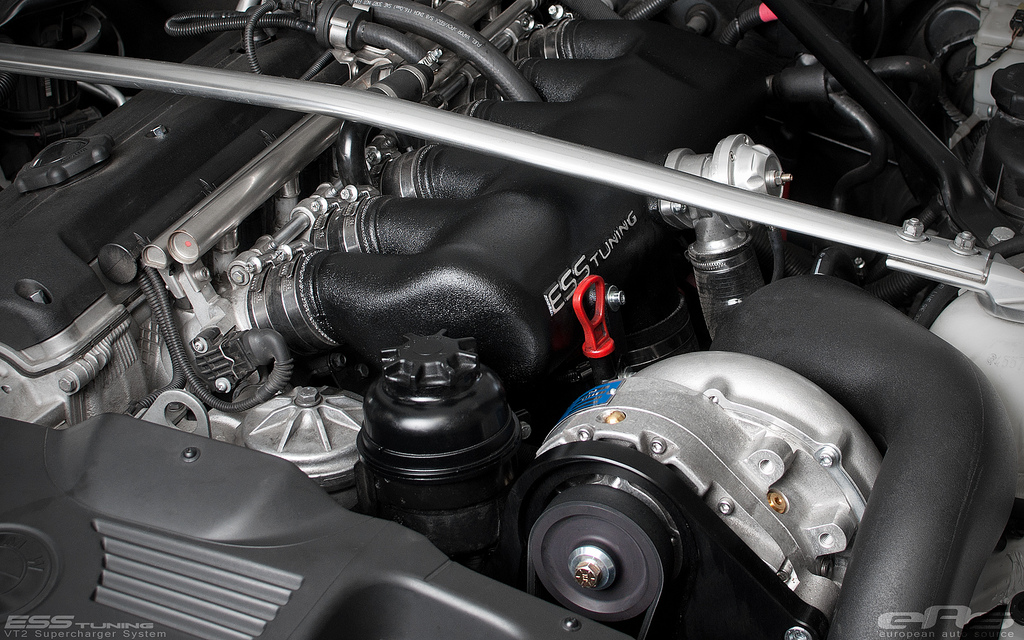

The ESS Tuning Z4M VT2-525 Supercharger System



The ESS Z4M VT2-525 SC system is based on the Vortech V3Si supercharger unit capable of 775HP. The systems are full systems including, 20mm Certal aluminum main bracket for superior rigidity, custom molded high temperature kompressor inlet housing, cast aluminum intake manifold with integrated high capacity bypass valve system, high-capacity front mount intercooler system and custom tuned ESS ECU software with removed dyno limiter and top speed governor. Fueling is provided by new, larger direct replacement Bosch Motorsport fuel injectors.



With an extremly effecient design and perfectly tuned software the ESS S54 Z4M VT Series supercharger system delivers supercar performance along with the quality and reliability ESS customers have come to expect. This kit is designed as a 100% bolt on package with no irreversible custom fabrication to the vehicle.

The VT2-525 is easily upgradeable as the inevitable power addiction sets in. The same basic V3Si supercharger unit and major hardware components are used all the way up to our VT3-700 version of the kit.



*The ESS E-Flash OBD2 cable option allows the end user to upload the supercharger ECU software directly to the car from any PC running Windows XP or newer. The system also includes full diagnostic and code clearing capability. Any future ESS software updates can be received by email and loaded directly to the car. The stock ECU software will be saved and can easily be restored in the future.



System components:

-Vortech V3Si internally lubricated supercharger unit.

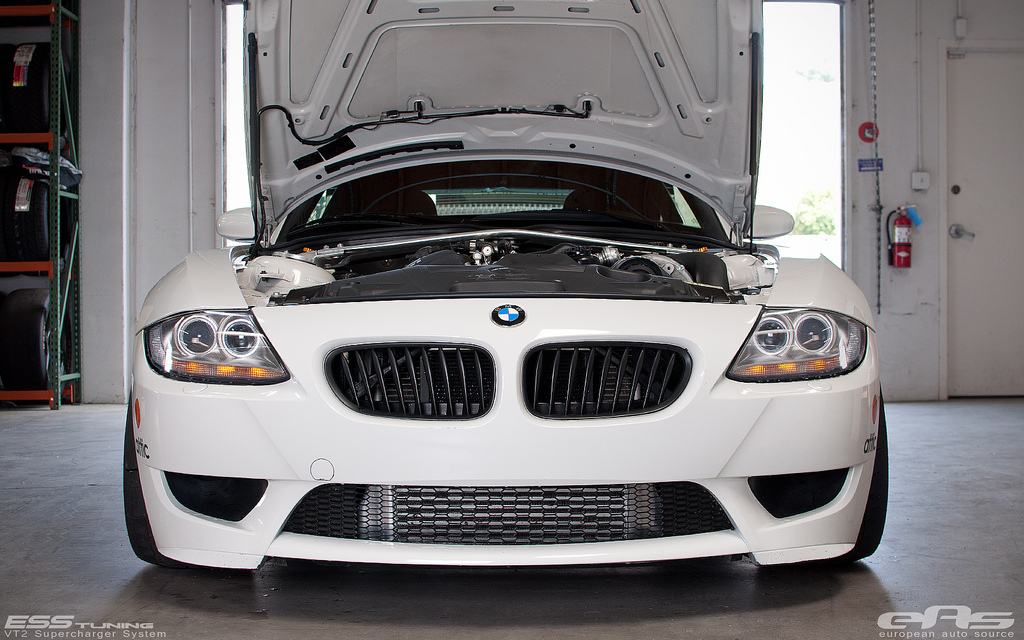

-High capacity front mount intercooler system (FMIC).
-High capacity Setrab oil cooler system.
-High capacity, direct replacement Bosch fuel injectors (larger than 445/500 spec).
-One belt driven w/self tension system.
-CNC machined, hard anodized brackets.
-CNC hard anodized pulleys.
-Long life serpentine drive belt.
-True OBDII, perfectly optimized MSS70 ECU software with removed top speed governor.
-Powder-coated mandrel bent tubing
-5 layer super strenght silicone hose throughout system.
-K&N air filter.
-High capacity bypass-valve system.
-Oil breather assembly designed for boost.
-Detailed and illustrated installation manual.
-2yr./unlimted mileage warranty.
-100% maintenance free operation.
-Installation time : 8-10 hours

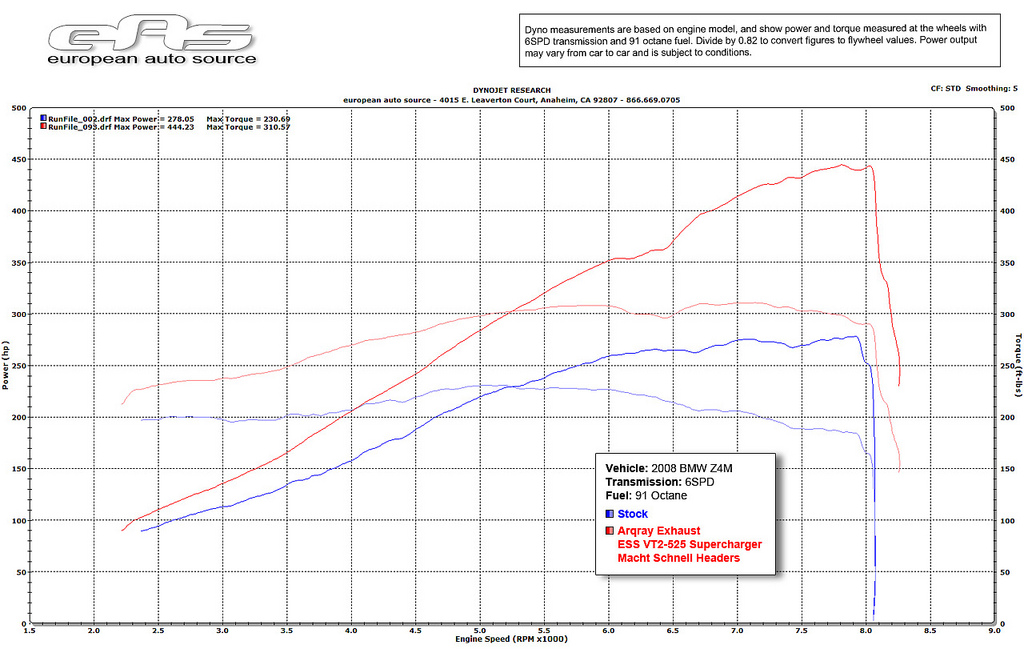

VT2-525 specs :
Boost pressure: 8 PSI

Horsepower: 525 SAE/529 DIN (50% increase over stock)
Torque: 340 lb-ft



Application intended for: Z4M from 2006 2007 2008
Legal in California only for racing vehicles.





For more information on this kit, click here!


About ESS Tuning

ESS - European Supercharging Systems

ESS was founded 1995 in Aremark, Norway. The company started out with a yearly production of 30 SC systems, in 2004 total production passed 1000 SC systems making them the largest BMW supercharger system manufacturer in the world. From 2000, they started offering a constantly growing chip tuning selection for many European models based on our extensive expertise with Bosch and Siemens engine control systems.

In September 2005 their San Diego, California based sales and support center was opened which serviced the North American market. In 2009, they purchased a new manufacturing facility in Phoenix, USA and moved their US sales and marketing team into the same building.

Their goal when developing a new tuning product is to enhance the performance characteristics of the car without compromising comfort, drivability, durability, emissions and fuel consumption under normal driving conditions. When you purchase a ESS product, you can rest assured you get a completely tested product that is proven to perform to specification under all conditions. ESS products are engineered and manufactured to the highest level of quality. They spend countless hours dyno testing, road testing, and fine tuning engine management software in order to find the perfect engine balance and smoothest power delivery under all load conditions.

They have three goals to meet before any ESS engine related performance product is released for sale :

1. Their extended computerized load dyno test which simulates driving so hard that it is just not possible to drive this hard in real life.
2. They put the development cars through a 50000 mile (80000km) long term test which involves track driving, extreme heat and cold testing, high-speed Autobahn driving for extended periods, and normal everyday driving.
3. The car must have factory like or better driveability and smoothness and it must develop the extra power in a perfectly balanced manner.

When they meet these 3 goals with 100% success then, and only then, the product is released for sale.

What separates ESS from the competition:

-Standard 2 year/unlimited mileage warranty on all street supercharging systems.
-Excellent technical support from trained, knowledgeable, and enthusiastic personnel.
-True OEM quality fit and finish, and designed to fit under the factory hood without any fabricating.
-Designed for maximum performance at safe boost levels on stock unmodified engines.
-Fully OBD-II diagnostics compatible.
-Fast service and support.
-100% complete systems, even down to the wire ties, making installation and ownership easy and trouble free.
