Location of Compass Module???
#1
Location of Compass Module???
I am adding (or attempting) the Compass module to my 2006 CTT. I got the module and bracket, but do not know where this installs. I remember reading this was under the back seat, but that does not seem obvious from a brief inspection.
Any ideas?
Any ideas?
#2
i'd say it sits at the top of that unit. that small rectangular housing looks like it holds the magnetic field sensor. now to locate the wiring
pre 05 models used that additonal bracket you have and clips into the seatbelt receptacle
i have an 04 model and i'll be doing the retroift too, but only if i can locate the harness. my option code is QR0 which is without compass. QR1 is with compass. i've heard that all cayennes fitted with PCM/NAV have that harness, but i can't confirm that.
pre 05 models used that additonal bracket you have and clips into the seatbelt receptacle
i have an 04 model and i'll be doing the retroift too, but only if i can locate the harness. my option code is QR0 which is without compass. QR1 is with compass. i've heard that all cayennes fitted with PCM/NAV have that harness, but i can't confirm that.
Last edited by porschetech; 10-29-2010 at 10:21 PM.
#3
i'd say it sits at the top of that unit. that small rectangular housing looks like it holds the magnetic field sensor. now to locate the wiring
pre 05 models used that additonal bracket you have and clips into the seatbelt receptacle
i have an 04 model and i'll be doing the retroift too, but only if i can locate the harness. my option code is QR0 which is without compass. QR1 is with compass. i've heard that all cayennes fitted with PCM/NAV have that harness, but i can't confirm that.
pre 05 models used that additonal bracket you have and clips into the seatbelt receptacle
i have an 04 model and i'll be doing the retroift too, but only if i can locate the harness. my option code is QR0 which is without compass. QR1 is with compass. i've heard that all cayennes fitted with PCM/NAV have that harness, but i can't confirm that.
#4
i think you're right. i've looked at several 04 cayennes with pcm/nav. i haven't been able to locate that harness for the compass module. looks like pcm 2.1 maybe the way to go or build a harness
Last edited by porschetech; 11-05-2010 at 12:50 PM.
#5

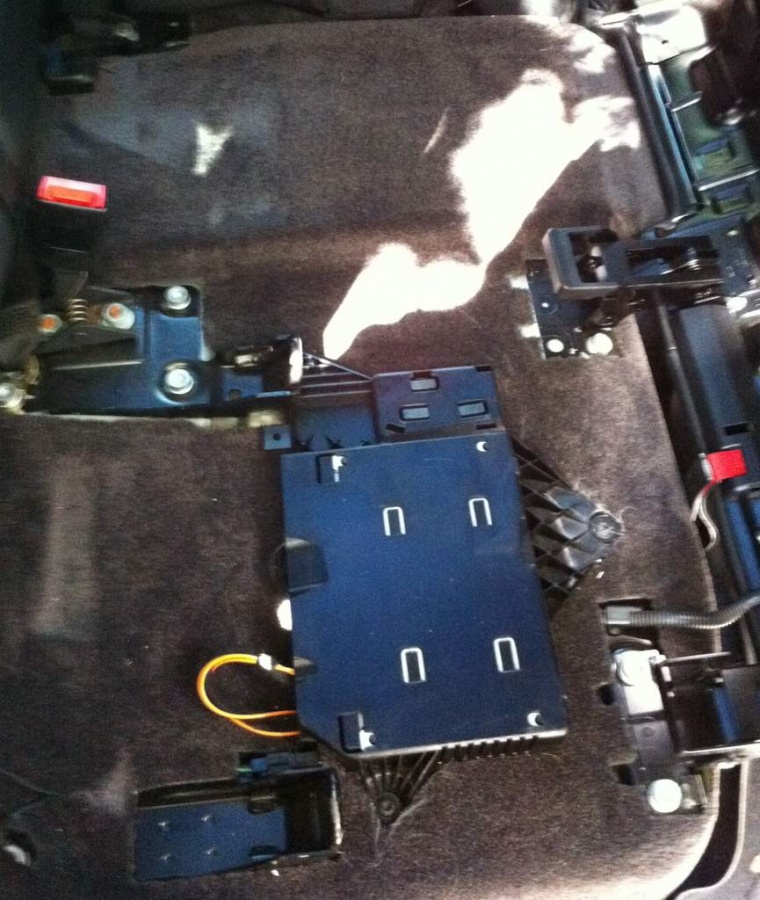

Mine is an '06 so I have the DVD based PCM. That does not seem to be helping. I think it is time to build a harness, the audio unit next to the mount might provide all the connections needed:
#6
http://www.porsche.com/usa/accessori...ation/compass/
http://donrosenporsche.oemdealer.com...2337_24687.php
#7
oh ok.....there's software to enable compass in the cluster.
http://www.porsche.com/usa/accessori...ation/compass/
http://donrosenporsche.oemdealer.com...2337_24687.php
http://www.porsche.com/usa/accessori...ation/compass/
http://donrosenporsche.oemdealer.com...2337_24687.php
Last edited by CBRacerX; 11-05-2010 at 01:16 PM.
