Cayenne - Softronics Tune + Bolt-ons - Results ~ 726 hp / 808 tq

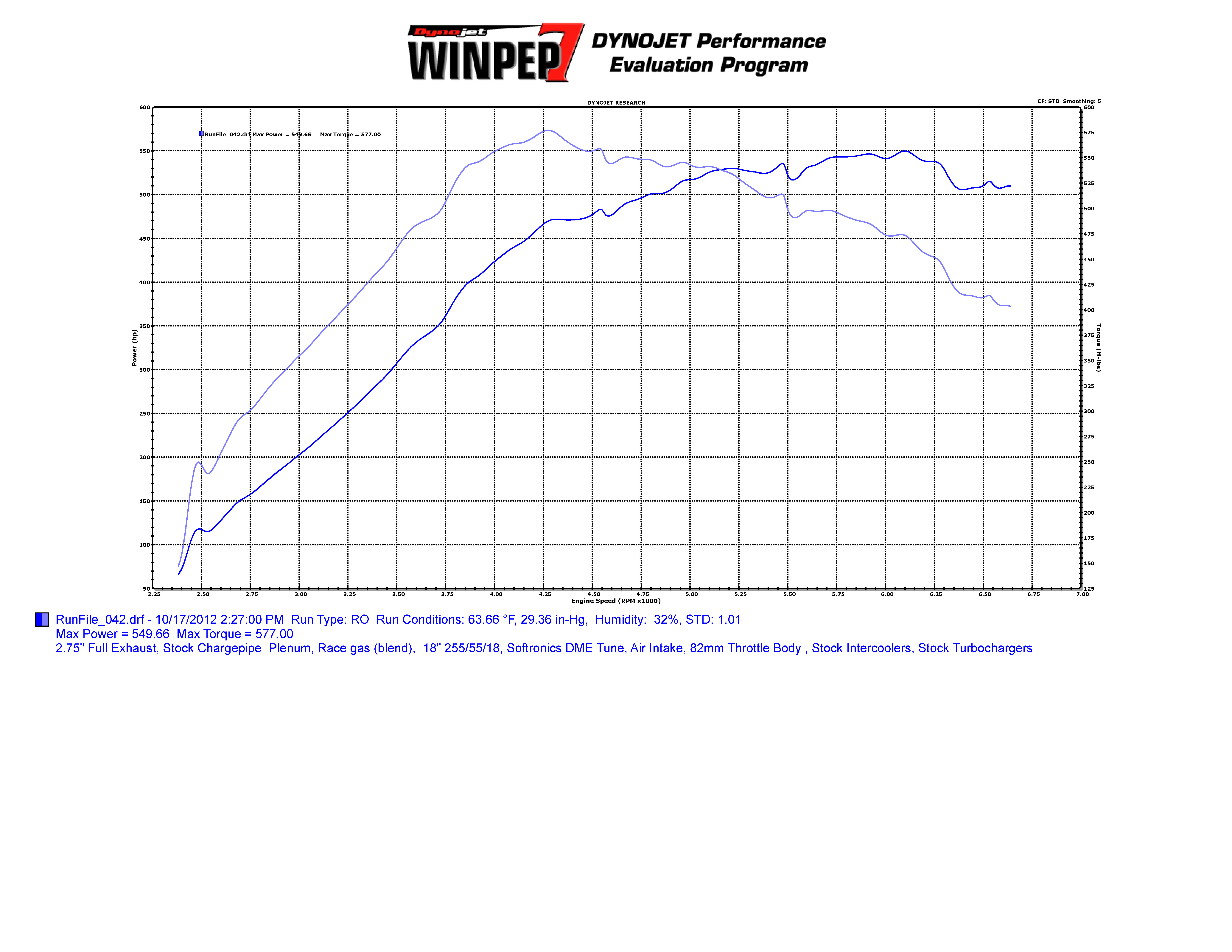

Finally had a chance to go back to the same AWD dyno last May, where I got 550 hp / 582 tq (about 675 hp / 710 tq) back in October 2012.
Back in October 2012, I had the following mods:
- Softronics tune
- EVOMS Intake
- AP Diverter Valves
- 82mm TB / Intake Manifold
- 1-Stage colder IK22 plugs
- Full 2.75" exhaust
- 93 octane / 104 octane (blend)
- Stock Intercoolers
- Stock Turbochargers
Since then, I went to:
- Stock Bosch plugs
- Custom 2.75" Plenum and Chargepipe/ Y-Pipe
- Methanol kit
- Full 3" exhaust
- Transmission cooler
When all was said, and the dust settled, I was surprised (yet again) at what this stock engine, tranny, intercoolers, and turbos could do.

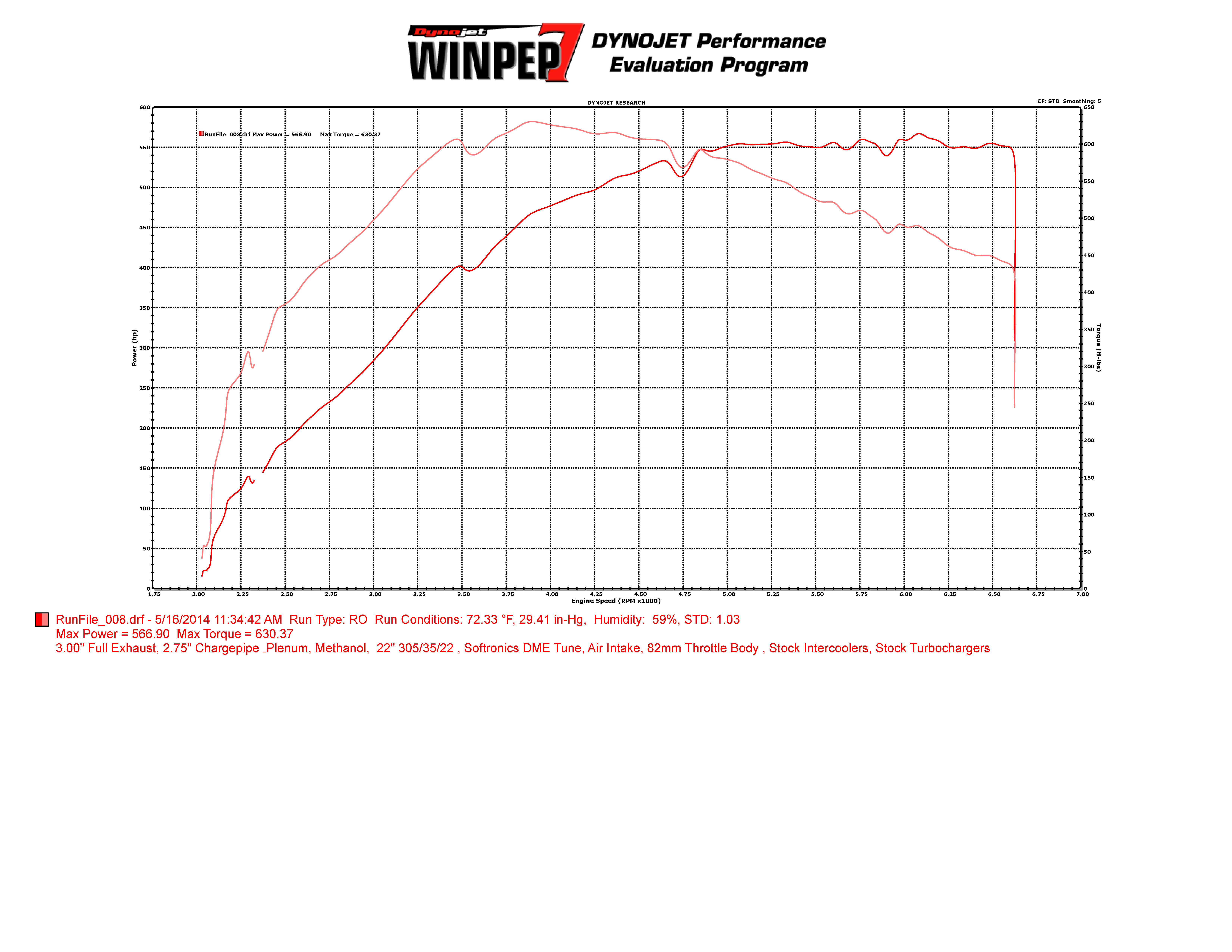

She dyno'd out at 566 hp / 630 tq at the wheels. Taking into account about 22% for drivetrain loss and I am at:
Approx. 726 hp / 808 tq at the crank!
Anyone who says that going opening up the intake and exhaust on a forced-induction car, will hurt performance somewhere in the powerband, clearly has not see this comparison.

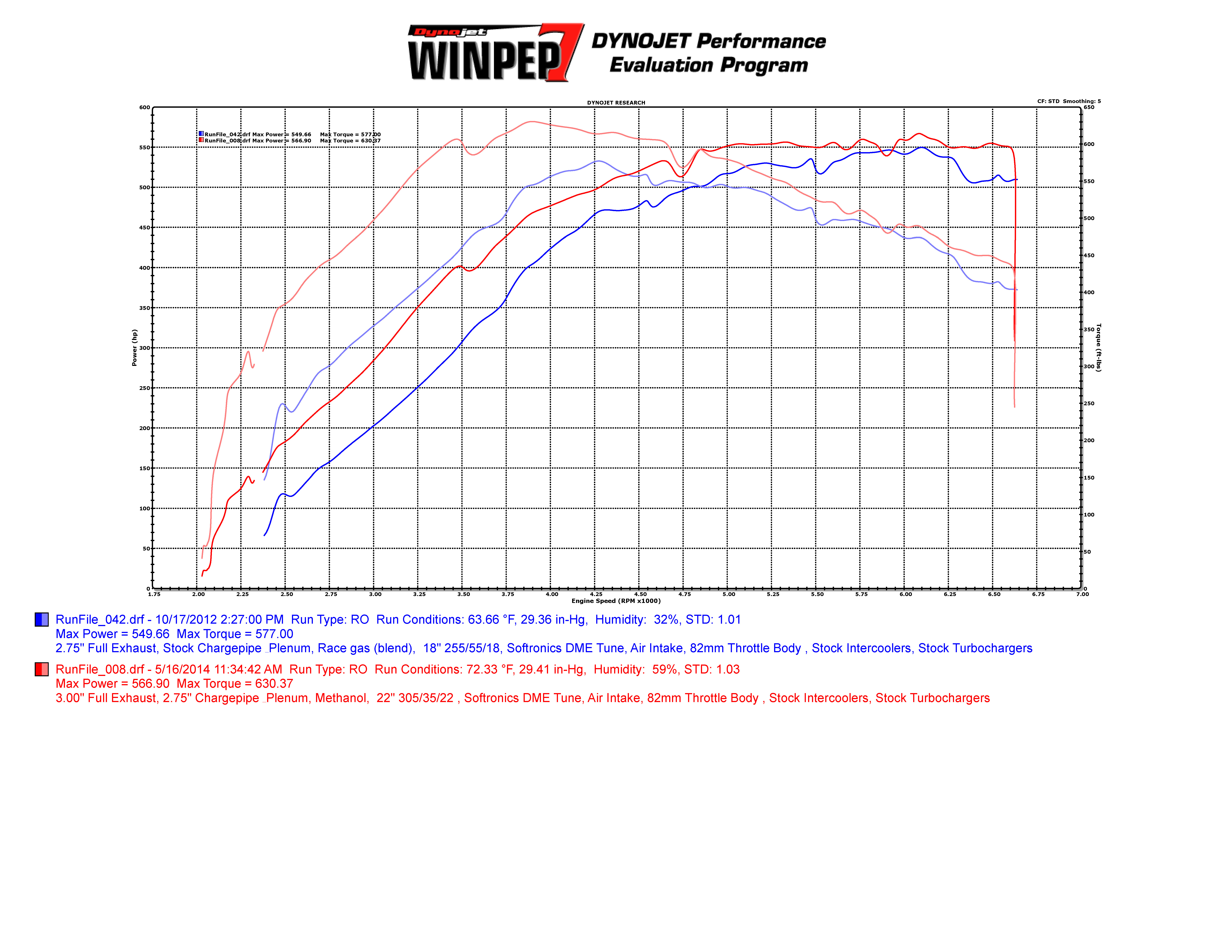

Here is an overlay of the dyno session in 2012 with the 2014 dyno session. After opening up the intake and exhaust even more, it made more power EVERYWHERE in the powerband!! The Red line is the 3" exhaust & YPipe and the Blue line is the 2.75" exhaust and stock YPipe
Special thanks to one of our vendors, Scott over at Softronics. I have ran many of his Cayenne 957 tunes to great effect and can highly recommend them! The proof is in the pudding!
Last edited by Renaissance.Man; 06-26-2014 at 10:23 PM.
#2
Even though these numbers are phenomenal, I will be working with Scott to get VBox verified 60-130mph times. I am confident that we can get another Cayenne on the fastest 6Speedonline official 60-130mph list here.
I am not sure where I will end up, but I stand a good chance of matching or besting the "10.3 - Audi R8 5.2 FSI" (V10) entry. How wild would that be for a heavy almost 3 ton SUV? Anything can happen, but I have high hopes.
Also, Scott and I are working on a MAFLess tune right now and colder plugs. I will go back to the dyno and hopefully squeak a little more out. Wish me luck!
I am not sure where I will end up, but I stand a good chance of matching or besting the "10.3 - Audi R8 5.2 FSI" (V10) entry. How wild would that be for a heavy almost 3 ton SUV? Anything can happen, but I have high hopes.
Also, Scott and I are working on a MAFLess tune right now and colder plugs. I will go back to the dyno and hopefully squeak a little more out. Wish me luck!
Last edited by Renaissance.Man; 06-26-2014 at 10:24 PM.
#3
Incredible results. Thank you for continuing to blaze the trail of maximum bolt-on performance for the 957 CTT.
Ready for a race against a stock CTTS for comparison purpose? I want to see how bad you beat me!
Ready for a race against a stock CTTS for comparison purpose? I want to see how bad you beat me!
#4
I see you have thrown down the gauntlet. Challenge accepted!! LOL
#7
Also are you stoping here with the powerlevel ? Upgrading to 20T is very easy and cheap
And will push 750-800hp easy
And will push 750-800hp easy
Trending Topics
#8
Wish I could join you guys...I have almost all the same mods with exception of the Charge pipe & Meth on my CTTS. Would be interesting to see the delta on those mods.
#9
Also, I am surprised I am not twisting driveshafts with this much torque. So I somewhat weary about the transmission handling any more torque.
Yeah.. same here. Deltas would be great. However, with the VBox numbers, you can see how close you are! Then we can create a thread with the VBox numbers and mods and extract the Deltas. If you really want to get crazy, we may be even able to graph to performance deltas over time.
#10
You are definitely in the 700 club. The numbers look very good and adding Vbox data will be even more compelling. The Maf deleting and a few other final changes to the file should nicely complete the package. The key is knowing what and how to make the changes in the code. I know you can appreciate that .
Best Regards,
Scott Slauson
Best Regards,
Scott Slauson
__________________
Softronic - Porsche Performance Software Tuning
Faster than a speeding bullet.
Cayman | Boxster | 911 | Cayenne
Like us on Facebook for updates and promos
24HRS Daytona Winner programmed by Softronic!
Porsche Interseries programmed along with teamed owned Tudor and World Challenge cars in an exclusive with Softronic.
Porsche PCA racing binary check by Softronic for compliance.
Softronic - Porsche Performance Software Tuning
Faster than a speeding bullet.
Cayman | Boxster | 911 | Cayenne
Like us on Facebook for updates and promos
24HRS Daytona Winner programmed by Softronic!
Porsche Interseries programmed along with teamed owned Tudor and World Challenge cars in an exclusive with Softronic.
Porsche PCA racing binary check by Softronic for compliance.
#13
Thanks! I meant to tell you that it turns out that the spikes and dips on the original graph were due to electronic noise on this inductive RPM pickup wire the dyno used. Unfortunately, they do not have the OBD-II dyno module. Even so, we were able to apply some filtering here to pull out some of the irregularities caused by the noise. Admittedly, it is still not perfect and there are still some inconsistencies here.
I am looking into a few ways to mitigate this further when I go back to the dyno in the next week or so.
Thanks! Agreed!
Yep.. from a couple of years go. She has quite a bit more power now though. Here is the link:
Video: Wicked Cayenne Turbo - Dyno
Last edited by Renaissance.Man; 06-28-2014 at 03:34 PM.
#14
Im really digging this! Can't wait to see how the maf-less tune works out. Have you considered switching to e85? Ideally I would like to do both on my build up because Im aiming for quite a bit more power and this makes it seem that much more easily attainable. I know the Aisin TR60Sn is rated @ 1000nm or 724 ft lbs. so your definatly in that area where problems may start to pop up. After speaking with some people I would be more concerned with the lockup converter and flexplate at or above these levels. How many miles do you have on the CTT now?
#15
Ha... She is not babied. She will be coming up on 90K miles soon Hard to believe that I am getting these sorts of numbers on a engine/tranny/turbos with this much wear.
