Interior Protection? Premier's Diamond Cut IR Film

When it comes to window tinting, there are many options available. Premier just added one other product to the market that will provide with maximum heat rejection without the effects on gps, keyless entry, radar, etc. The product will protect from UV damage and the tremendous heat reduction will reduce the drying out of leather and vinyl in the car.

If you have a BMW or Audi, you may have noticed that even some of the "ceramic" type tints tend to reduce the signal to your keyless entry system. This is because there are some type of metallic flakes embedded into the film to obtain excellent heat rejection.

Our new Diamond Cut film has been tested to be 100% metal free. It will also cut down on infrared rays by 92% vs. the closest competing "ceramic" type film at 75%.

Below we have a display with a heat lamp that can generate heat up to 200 degrees. The picture shows a timer and we utilize a heat monitor along with a BTU meter to show the benefits of this film.

Film tested at 62% VLT (visible light transmission) vs. clear glass

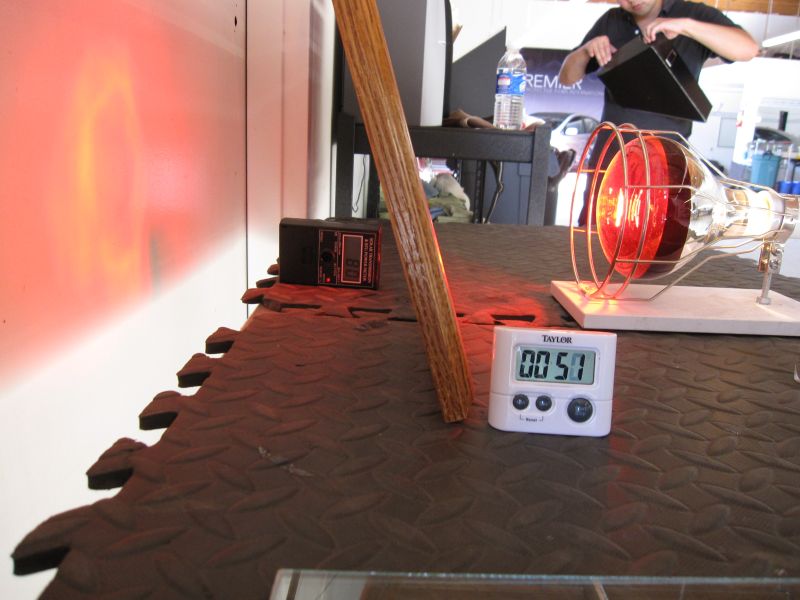

Only 40 seconds into turning the heat lamp on, the surface temperature of the wall jumps from 80 degrees to 95 degrees. The side with the film is already showing a 2 degree difference in just 40 seconds.

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #2
Old 08-13-2009 | 02:22 PM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !

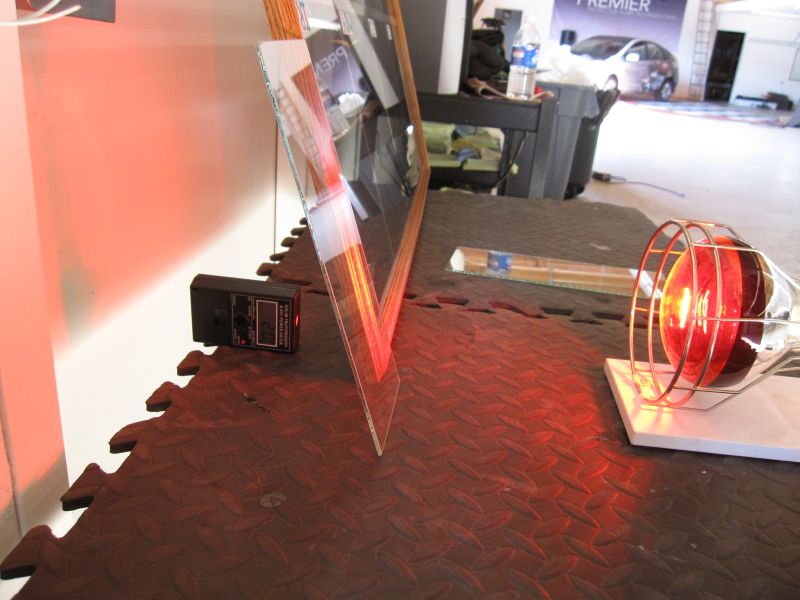

We then place a BTU meter behind the clear glass to see the amount of energy being transferred through the glass

Results

Clear glass - 136

Diamond Cut IR 62% - 20

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #3
Old 08-13-2009 | 02:24 PM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !

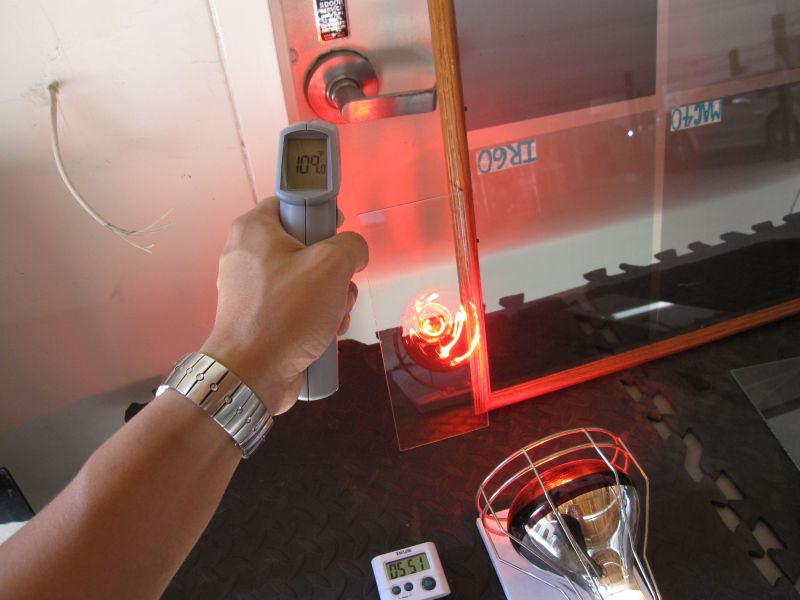

At 5minutes and 51 seconds, surface temperature behind the clear glass reaches 109 degrees. Behind our Diamond Cut IR film it is a warm 96 degrees.

Test results - close to 6 minutes, surface temperature reaches 109 on clear glass vs. Diamond Cut at 96 degrees.

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #4
Old 08-13-2009 | 02:26 PM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !
Quick comparison of a German based 40% ceramic tint vs. our Diamond Cut IR at 62% (which is lighter)

Results with BTU meter

Clear Glass (we positioned the BTU meter between the two films where there is a gap) - 219

Ceramic 40% - 80

Diamond Cut IR 62% - 14

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #5
Old 08-13-2009 | 02:30 PM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !
Findings - our new Diamond Cut IR film blocks off more infrared rays than even a 40% ceramic tint

We went out and had a manufacturer produce a product specifically for our needs and the results are shown above.

For more information about our Diamond Cut IR please contact us at 510-623-1308

__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #6
Old 08-16-2009 | 10:51 AM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !
Here are some shots of our new Diamond Cut IR film applied to the windows of a E90 M3 at 32% VLT (visible light transmission). We are using a E92 M3 with clear glass to give an accurate assessment of how well our tint compares

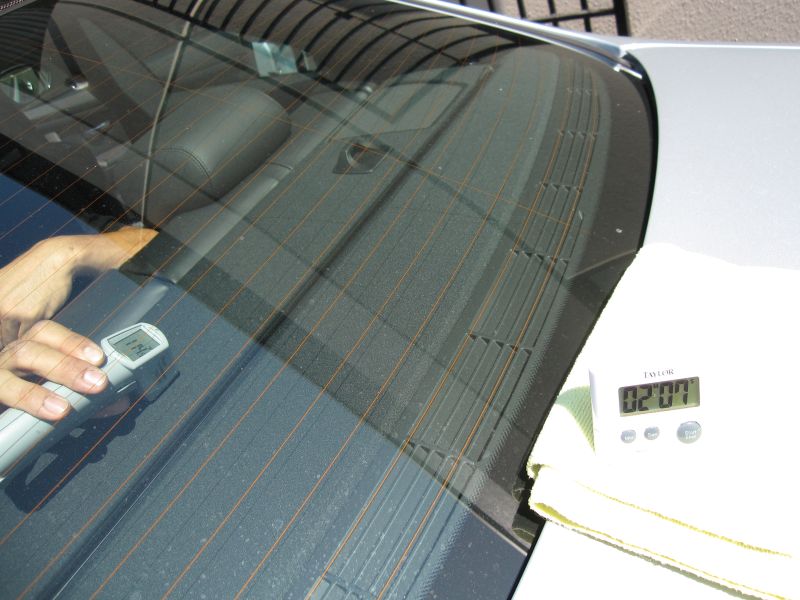

Clear Glass - in 2 minutes time, the surface temperature of the rear deck registers at 114 degrees

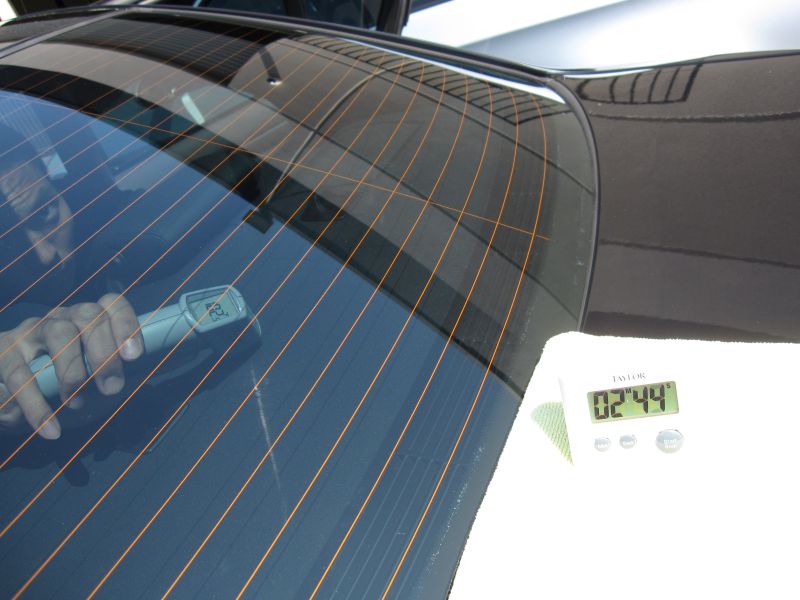

Diamond Cut IR Tint - in 2 minutes 44 seconds, the surface temperature registers at 102 degrees (a 12 degree difference in just 2.5 minutes)

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #7
Old 08-16-2009 | 11:04 AM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !

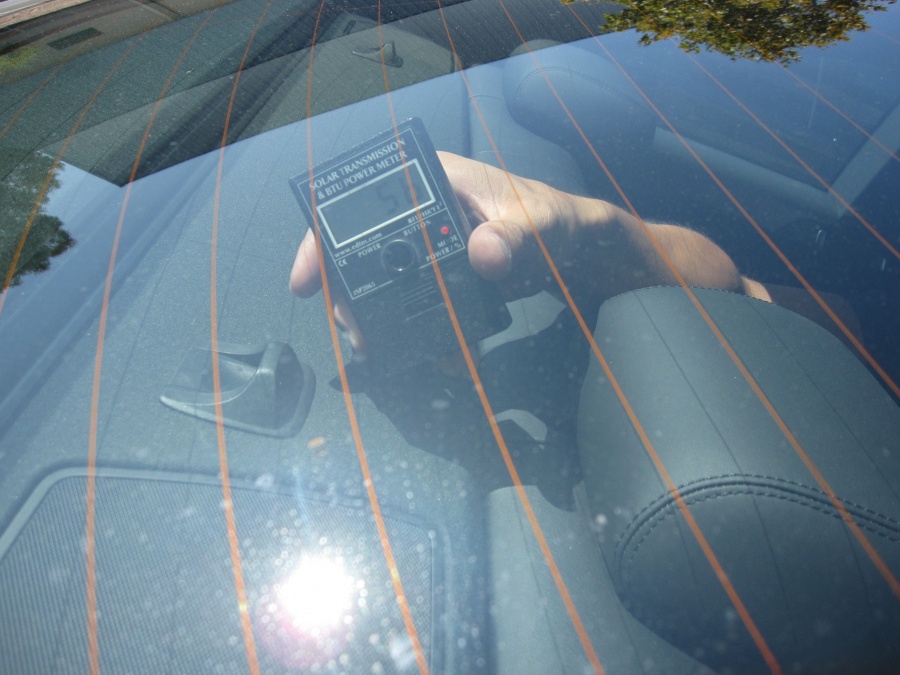

Clear Glass BTU meter 56

Diamond Cut IR - BTU meter 8

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #8
Old 08-16-2009 | 11:07 AM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !

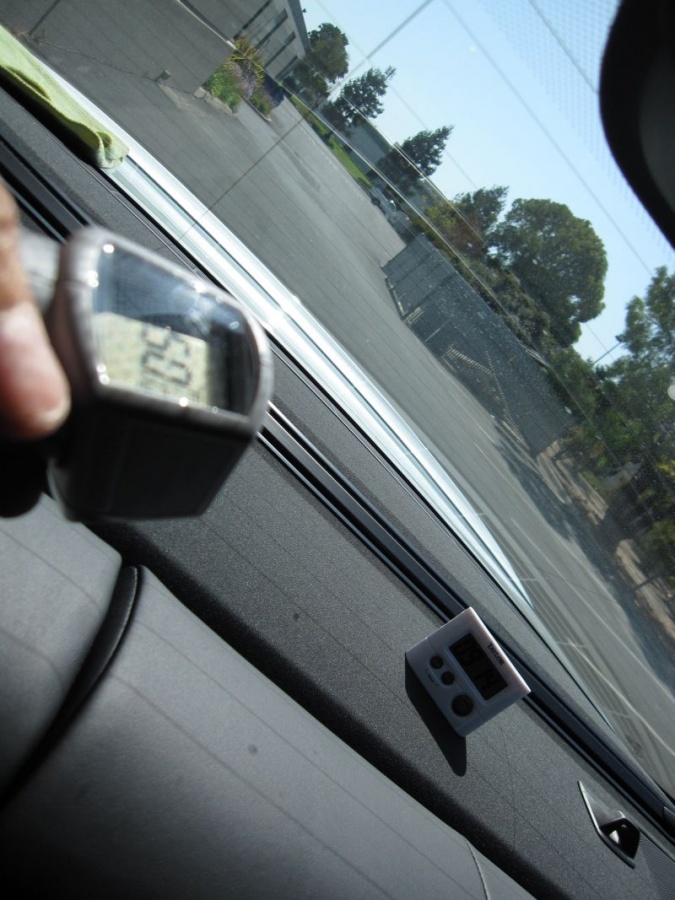

Clear Glass - 9 minutes 14 seconds rear decklid temperature rises to 150 degrees

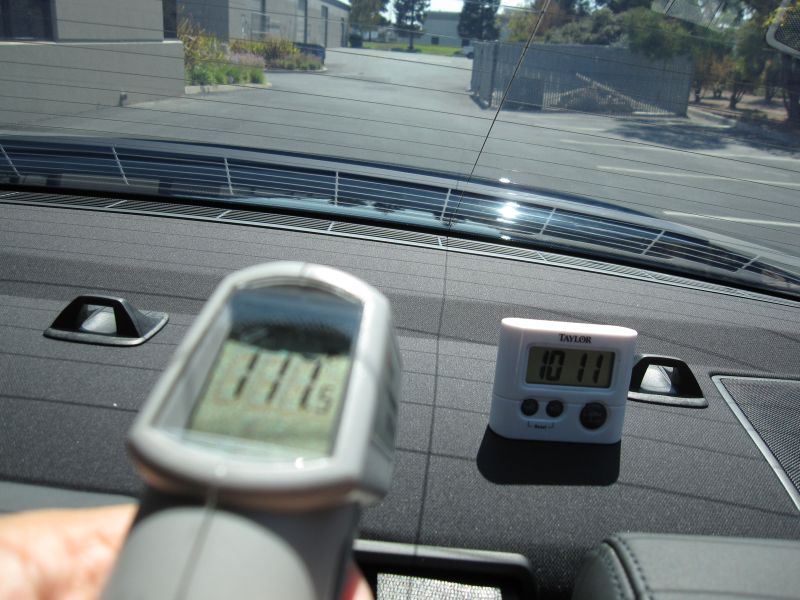

Diamond Cut IR Tinted - 10 minutes 11 seconds, rear deck lid temperate is at 114 degrees (36 degree difference in surface temperature)

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #9
Old 08-16-2009 | 11:09 AM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !
Here are some snap shots of the car with our Diamond Cut IR Film

Attached Images
__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #10
Old 08-16-2009 | 12:23 PM
detailersdomain's Avatar
Former Vendor
Joined: Aug 2005
Posts: 2,888
From: New Jersey
Rep Power: 0
detailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond reputedetailersdomain has a reputation beyond repute
wow great info!

  #11
Old 08-18-2009 | 02:12 PM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !
thanks Phil - tremendous heat rejection!!!

__________________
Premier Protective Films
ClearGuard Alpha PPF, Spectra PhotoSync Nano IR & CeraLuxe IRD Tint, Coatings
www.premiermobilegroup.com

Sharing our Passion on Youtube: https://urlgeni.us/youtube/Premier

Facebook: https://urlgeni.us/facebook/Premier

42630 Christy St, Fremont, CA. 510-623-1308 sales@premiermobilegroup.com
  #12
Old 08-25-2009 | 03:42 PM
JRDM's Avatar
Registered User
Joined: Jul 2009
Posts: 28
From: SO CAL
Rep Power: 17
JRDM is infamous around these parts
looks like one great product

  #13
Old 08-27-2009 | 07:35 AM
OS Inspector's Avatar
Registered User
Joined: Aug 2009
Posts: 2,496
From: Houston Tx
Rep Power: 186
OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !
if one is not in cali how can they get this product installed on their car?

(houston tx location or dallas tx)

  #14
Old 08-27-2009 | 09:57 AM
Premier Films's Avatar
Thread Starter
|
Basic Sponsor
Joined: Feb 2009
Posts: 2,406
From: California
Rep Power: 172
Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !Premier Films Is a GOD !
Originally Posted by OS Inspector
if one is not in cali how can they get this product installed on their car?

(houston tx location or dallas tx)
Unfortunately for the next 4 months, it will only be available through Premier in Northern California and limited availability to Southern California facility. We will be looking at launching the product for global sales in early 2010.
