My 300zx build
This is the cliffnotes version- I can provide MANY more pics if anyone would like.
I didn't want to post a thread up until it was completely done, but it's close enough and I figure a forum like this where everyone appreciates how much time and money goes into these builds would be a good place to put it.
to start off with i'll post up the updated mod list. I'm sure there's stuff I'm forgetting, but oh well this is all the important stuff:
Engine/Heads:
-Eagle H-beam rods
-Wesico 88mm pistons (.040 over)
-Tig welded crank counter weight
-Ported oil pump
-Ishihara-Johnson crank scraper
-ATI race damper
-ARP head and main studs
-BDE low profile motor mounts
-Z1 58mm throttle bodies
-Gasket/port matched upper/lower manifolds
-.5mm OS inconel exhaust valves
-.5mm OS black nitride coated intake valves
-Dual valve springs
-Ti valve retainers
-Ti valve seats
-Ti valve collets
-Bronze exhaust valve guides
-major port work
-bowl/chamber work with flush ground spark plug bosses
-5 angle intake valve job
-radius exhaust valve job
-JWT R5 cams (272dur / .385" lift)
-JUN adjustable intake cam gears
-Power Enterprise kevlar timing belt
Fuel:
-Dual stock TT pumps (each pump capable of supporting ~650-700hp) running a parallel fuel set up
-8an nylon braided line from the bulkhead to the rails and as return line
-two summit inline fuel filters 40 micron
-Magnafuel FPR (-8 2 in, 1 out)

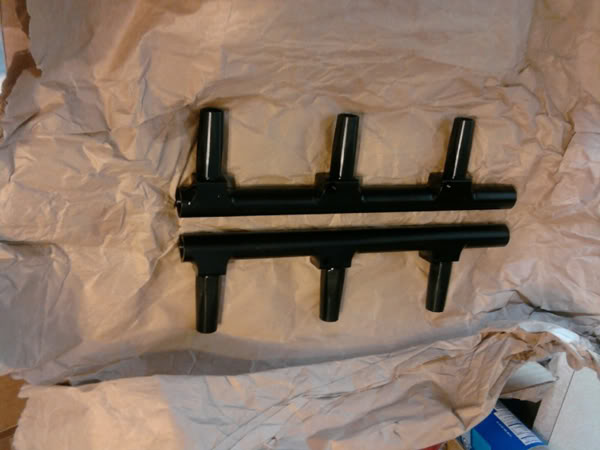

-BDE top feed fuel rails
-RC 1000cc injectors
-ASH spec dual fuel pump controller
Turbo/exhaust:

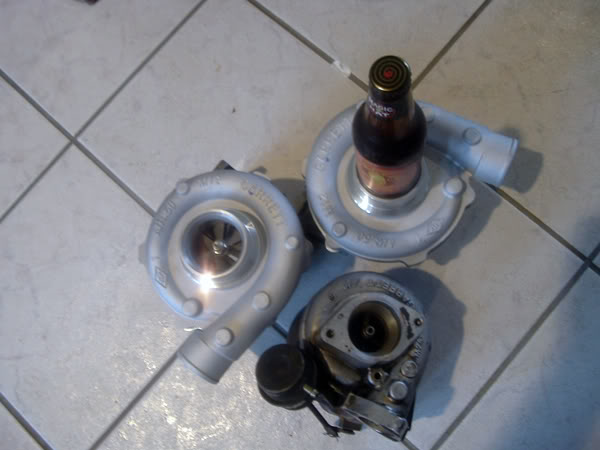

-Twin Garrett GT3071R-WG turbo's .64A/R with 2.75" inlet housing
-ATP 16lb wastegate actuators
-Z1 SS oil feed lines with restrictors
-Z1 GT series oil return lines
-Bell Intercoolers custom made FMIC, Vertical core 4.5"thick x 6" tall x 24.2" long. (The end tanks bring the total height to 12"- rated at over 1200hp)
-Custom 2.5/2.25" IC piping
-AMS exhaust manifolds
-AMS 3" expansion downpipes
-AMS 3" to 2.5" resonated test pipes
-Custom removable turn downs and possible removable second resonator sections
Drivetrain:

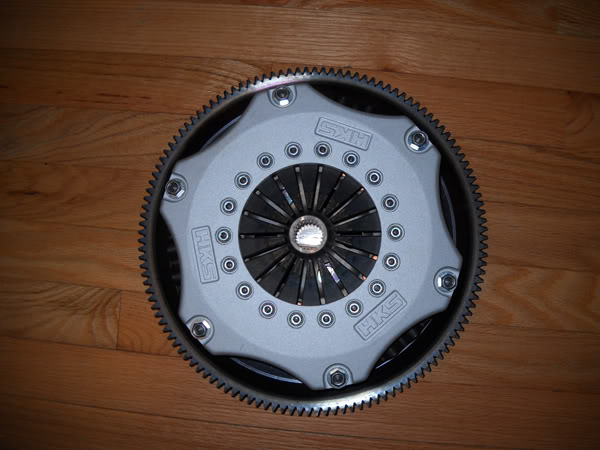

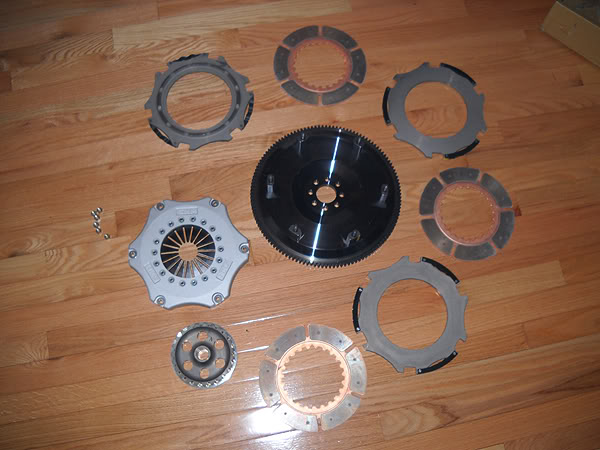

-HKS triple disc clutch
-Z1 one piece driveshaft
Cooling:
-Mishimotor radiator
-CX racing 19 row oil cooler
Suspension/Brakes/Wheels:
-SPL coil overs
-Adjustable front and rear camber arms (upper control arms)

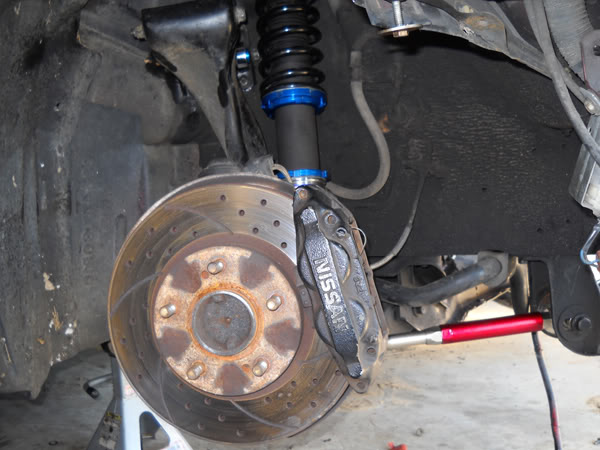

-Adjustable front tension rods
-Hicas elimination bar
-Solid subframe bushings
-Solid trans mount
-Wilwood 13" 6 piston BBK
-ADR Msports 18x8.5 +35/ 18x9.5 +35 with 245/35/18 and 275/35/18
Electronics:

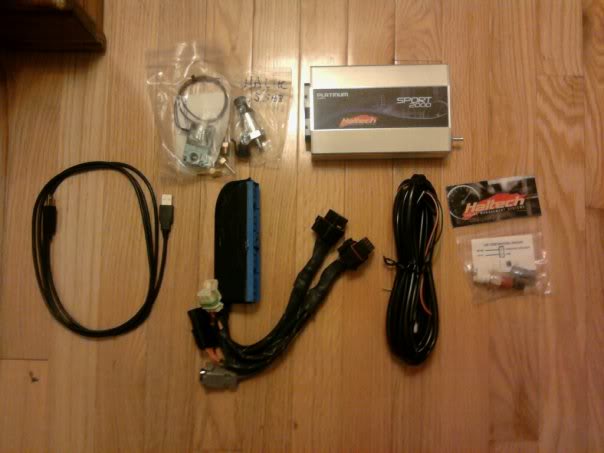

-Haltech Platinum Sport 2000 EMS
-Dual AEM UEGO widebands fed into the haltech as primary O2's
-Greddy 60mm boost gauge
-two Glowshift EGT gauges/sensors
-Glowshift oil pressure gauge/sender
I've taken probably about 500+ photo's documenting this build, so here are all the goodies from start to now:
(fmic just mocked up for piping)

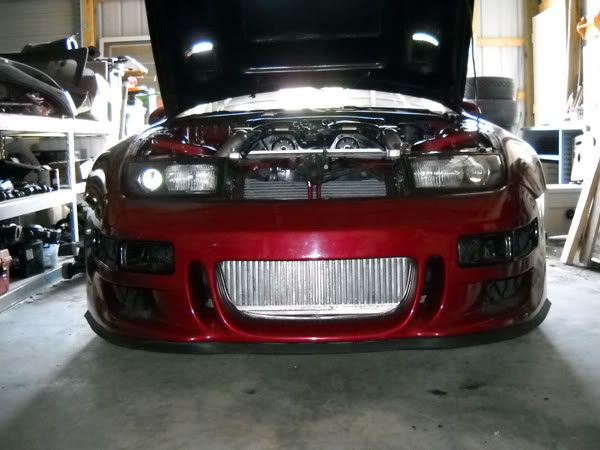

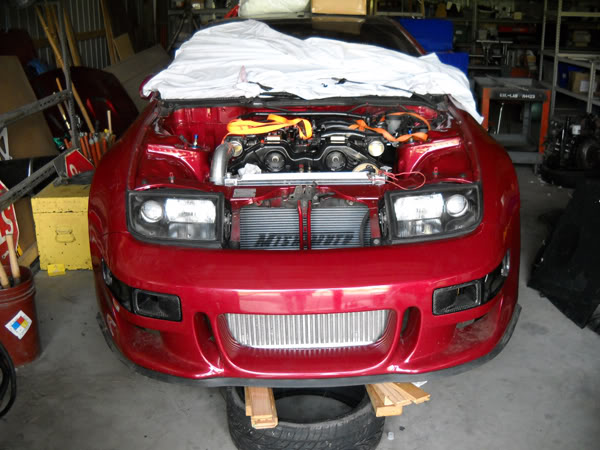

the IC piping is custom made, it is a combo of 2.5" and 2.25". The charge piping from the turbo to the IC is flared down to 2.25" for clearance between the rad and frame, then back out to 2.5". The piping from the IC to the throttle bodies is full 2.5". At this point all that is left is to finish up wiring (easy stuff) and tightening fuel fittings (didn't want to tighten everything down, first I need to make sure both pumps are picking up fuel at low tank levels), and waiting for a pipe that was mis-shipped (should be here tomorrow)- then it just needs to be dyno tuned Shooting to be on the dyno this week. Expect videos!
I didn't want to post a thread up until it was completely done, but it's close enough and I figure a forum like this where everyone appreciates how much time and money goes into these builds would be a good place to put it.
to start off with i'll post up the updated mod list. I'm sure there's stuff I'm forgetting, but oh well this is all the important stuff:
Engine/Heads:
-Eagle H-beam rods
-Wesico 88mm pistons (.040 over)
-Tig welded crank counter weight
-Ported oil pump
-Ishihara-Johnson crank scraper
-ATI race damper
-ARP head and main studs
-BDE low profile motor mounts
-Z1 58mm throttle bodies
-Gasket/port matched upper/lower manifolds
-.5mm OS inconel exhaust valves
-.5mm OS black nitride coated intake valves
-Dual valve springs
-Ti valve retainers
-Ti valve seats
-Ti valve collets
-Bronze exhaust valve guides
-major port work
-bowl/chamber work with flush ground spark plug bosses
-5 angle intake valve job
-radius exhaust valve job
-JWT R5 cams (272dur / .385" lift)
-JUN adjustable intake cam gears
-Power Enterprise kevlar timing belt
Fuel:
-Dual stock TT pumps (each pump capable of supporting ~650-700hp) running a parallel fuel set up
-8an nylon braided line from the bulkhead to the rails and as return line
-two summit inline fuel filters 40 micron
-Magnafuel FPR (-8 2 in, 1 out)
-BDE top feed fuel rails
-RC 1000cc injectors
-ASH spec dual fuel pump controller
Turbo/exhaust:
-Twin Garrett GT3071R-WG turbo's .64A/R with 2.75" inlet housing
-ATP 16lb wastegate actuators
-Z1 SS oil feed lines with restrictors
-Z1 GT series oil return lines
-Bell Intercoolers custom made FMIC, Vertical core 4.5"thick x 6" tall x 24.2" long. (The end tanks bring the total height to 12"- rated at over 1200hp)
-Custom 2.5/2.25" IC piping
-AMS exhaust manifolds
-AMS 3" expansion downpipes
-AMS 3" to 2.5" resonated test pipes
-Custom removable turn downs and possible removable second resonator sections
Drivetrain:
-HKS triple disc clutch
-Z1 one piece driveshaft
Cooling:
-Mishimotor radiator
-CX racing 19 row oil cooler
Suspension/Brakes/Wheels:
-SPL coil overs
-Adjustable front and rear camber arms (upper control arms)
-Adjustable front tension rods
-Hicas elimination bar
-Solid subframe bushings
-Solid trans mount
-Wilwood 13" 6 piston BBK
-ADR Msports 18x8.5 +35/ 18x9.5 +35 with 245/35/18 and 275/35/18
Electronics:
-Haltech Platinum Sport 2000 EMS
-Dual AEM UEGO widebands fed into the haltech as primary O2's
-Greddy 60mm boost gauge
-two Glowshift EGT gauges/sensors
-Glowshift oil pressure gauge/sender
I've taken probably about 500+ photo's documenting this build, so here are all the goodies from start to now:
(fmic just mocked up for piping)
the IC piping is custom made, it is a combo of 2.5" and 2.25". The charge piping from the turbo to the IC is flared down to 2.25" for clearance between the rad and frame, then back out to 2.5". The piping from the IC to the throttle bodies is full 2.5". At this point all that is left is to finish up wiring (easy stuff) and tightening fuel fittings (didn't want to tighten everything down, first I need to make sure both pumps are picking up fuel at low tank levels), and waiting for a pipe that was mis-shipped (should be here tomorrow)- then it just needs to be dyno tuned Shooting to be on the dyno this week. Expect videos!
#4
freakin awesome build, cant wait to see it finished up!
i love the 300zTT, one of my fave cars when its done right (ie, not riced out).
after driving my friends (built with jwt turbos, 485rwhp), i really liked these cars even more. they have such a solid/tight feel to the motor, like it is bulletproof and power at all rpms, it was not laggy at all.
i really like the black n gold engine color combo too, although im not a fan of red.
i love the 300zTT, one of my fave cars when its done right (ie, not riced out).
after driving my friends (built with jwt turbos, 485rwhp), i really liked these cars even more. they have such a solid/tight feel to the motor, like it is bulletproof and power at all rpms, it was not laggy at all.
i really like the black n gold engine color combo too, although im not a fan of red.
#7
Nice build! I hit 487 whp on mine and called it quits. I started after I had a timing belt break though you have gone WAY farther then I did with my build. Congrats on the progress and look forward to seeing more pics and numbers!
Trending Topics
#8
Awesome!
The 300ZXTT was the very first car I ever wanted. The VG is a very stout engine and the turbos you picked up look monstrous compared to the OEM pieces.
Should be one beast of a car.
If I could offload my G35, I'd pick one up in a heartbeat...or an S2000...or a 911SC...or a................. etc.
The 300ZXTT was the very first car I ever wanted. The VG is a very stout engine and the turbos you picked up look monstrous compared to the OEM pieces.
Should be one beast of a car.
If I could offload my G35, I'd pick one up in a heartbeat...or an S2000...or a 911SC...or a................. etc.
#10
how difficult is it working on the engine? doesn't seem to be much room to get your hands in there! example, attaching the inlet pipe to the turbo? Car looks great though, probably nicest 300 i've seen! what numbers are you looking for?
#13

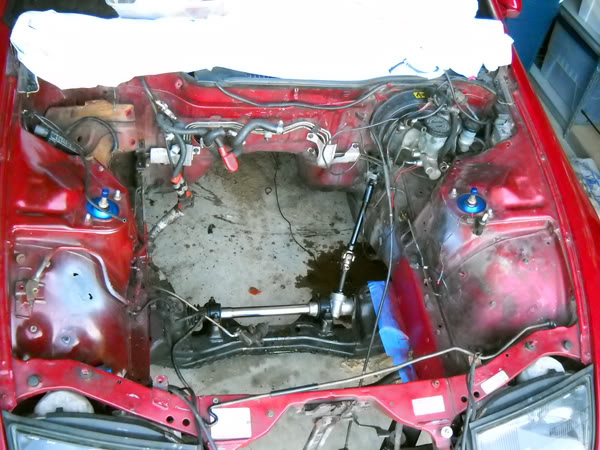

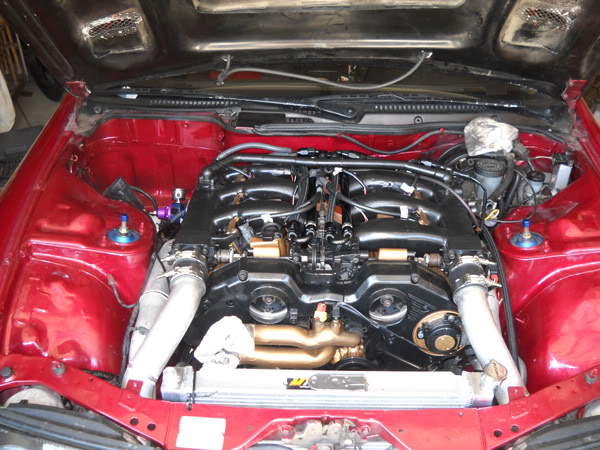

Thanks guys! The engine bay NOW is a lot more simple and easier to work around in then the stock engine bay...through a stock engine bay you can barely see the ground.
vs
Even stock(ish), it's not horrible once you get used to it lol. It is difficult compared to some other cars, but you get used to it fairly quickly. Now that there is half the stuff in the engine bay it is quite a bit easier to work around and figure out problems.
As for numbers, we'll know tomorrow! I am hoping for close to 700 on pump gas and close to 900 on race gas. It is getting tuned tomorrow so I'll put up numbers, sheets, and probably a video or two!
vs
Even stock(ish), it's not horrible once you get used to it lol. It is difficult compared to some other cars, but you get used to it fairly quickly. Now that there is half the stuff in the engine bay it is quite a bit easier to work around and figure out problems.
As for numbers, we'll know tomorrow! I am hoping for close to 700 on pump gas and close to 900 on race gas. It is getting tuned tomorrow so I'll put up numbers, sheets, and probably a video or two!
#15
haha well the dyno got set back AGAIN, but this time it's going on on sunday! I'll put some pics up tomorrow I'm going to work on the alignment a little bit, and finish putting all the panels that are going back in the car in the car. Maybe I'll toss the bumper and everything on and wash it and take some driveway pics
HowlerMonkey- thanks! That's a huge pet peeve of mine- people that do these builds where they think they will make so much power and put so much time and effort into them, but half *** it (i.e. stock heads, no cams, stock valve train, stock manifolds). They don't realize the bottle neck it can create when everything else is set up to flow like 300% of stock.
HowlerMonkey- thanks! That's a huge pet peeve of mine- people that do these builds where they think they will make so much power and put so much time and effort into them, but half *** it (i.e. stock heads, no cams, stock valve train, stock manifolds). They don't realize the bottle neck it can create when everything else is set up to flow like 300% of stock.
